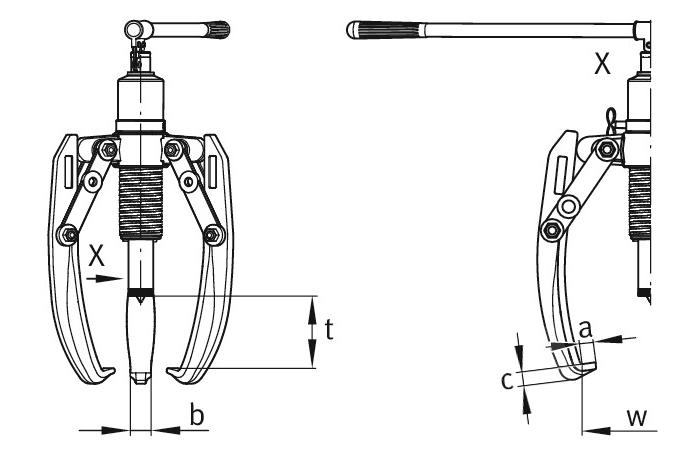

Technical data
| wmin | 110 mm | Grip width, min. |
| wmax | 460 mm | Grip width, max. |
| tmax | 280 mm | Grip depth, max. |
| a | 13 mm | |
| b | 27 mm | |
| c | 13 mm | |
85 mm | Stroke | |
| FP | 75 kN | Pulling force |
| ≈m | 12 kg | Weight |
Additional information
two- or three-arm puller (convertible) | Usability | |
Safety net or safety blanket, thrust piece, extension adapter, carrying case | Included in delivery |
Your current product variant
| Series | HSP | 2/3-Arm, self-centering with integrated hand pump |
