HNS-41-50
Hydraulic nut splitter HNS-41-50
Thêm vào yêu cầu báo giá
Technical data
W
41 – 50
Width across flats
M27 – M33
Nut thread
FC
340 kN
Cutting force
Voil
155 cm³
Oil capacity

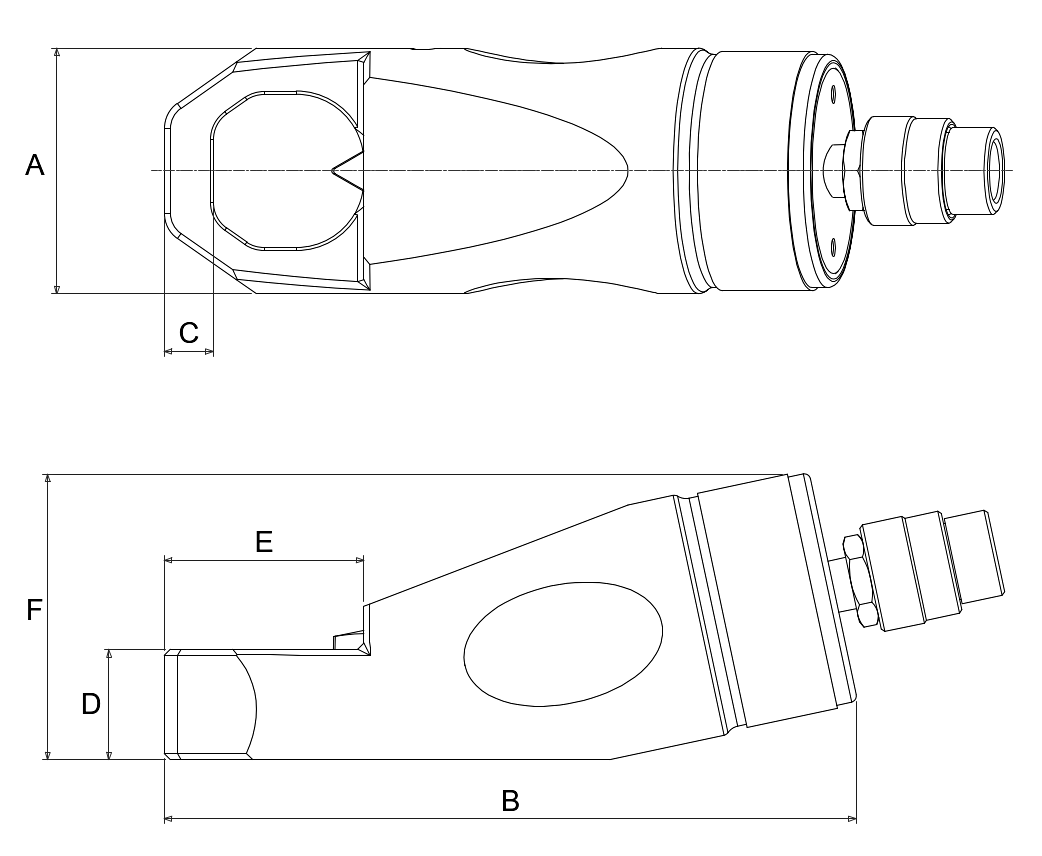

A
95 mm
B
244 mm
C
21 mm
D
45 mm
E
76 mm
F
106 mm
≈m
11.45 kg
Weight

Additional information
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9
