FAG INA Schaeffler
Schaeffler
HNS-50-60
Hydraulic nut splitter HNS-50-60
Thêm vào yêu cầu báo giá
Technical data
W
50 – 60
Width across flats
M33 – M39
Nut thread
FC
490 kN
Cutting force
Voil
240 cm³
Oil capacity

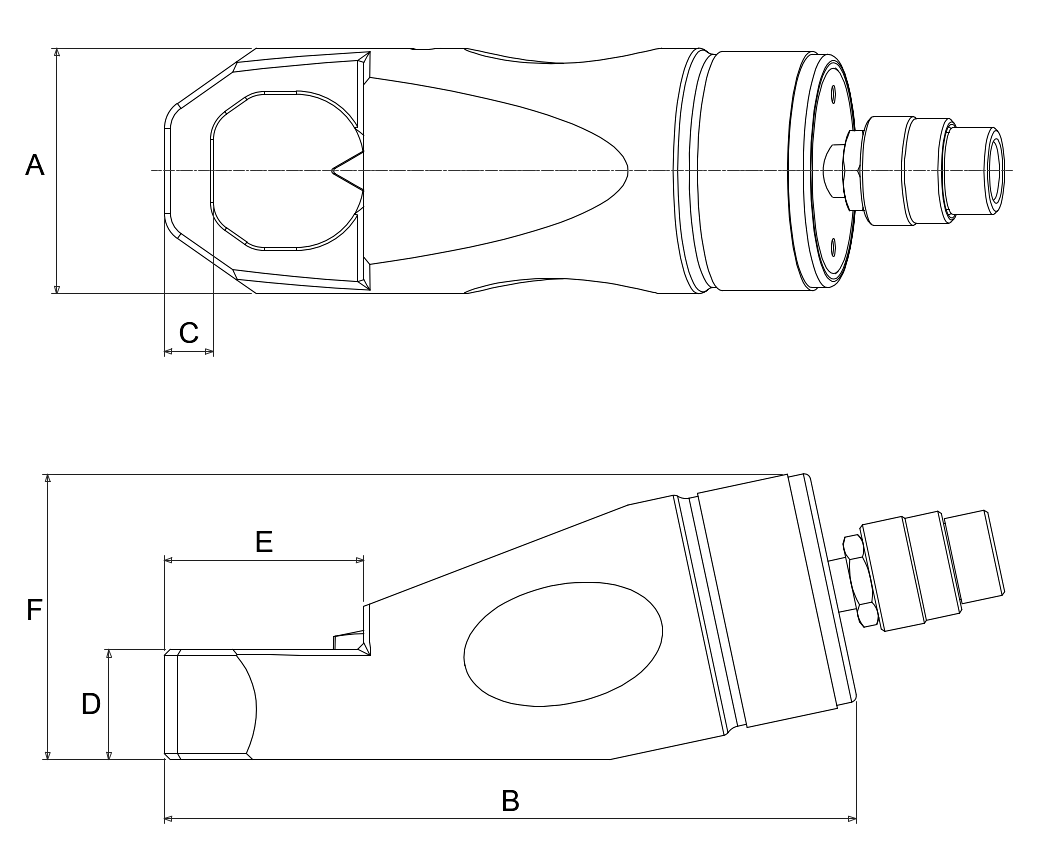

A
106 mm
B
269 mm
C
24 mm
D
55 mm
E
92 mm
F
125 mm
≈m
16.5 kg
Weight

Additional information
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9
