HNS-32-41
Hydraulic nut splitter HNS-32-41
Thêm vào yêu cầu báo giá
Technical data
W
32 – 41
Width across flats
M22 – M27
Nut thread
FC
190 kN
Cutting force
Voil
80 cm³
Oil capacity

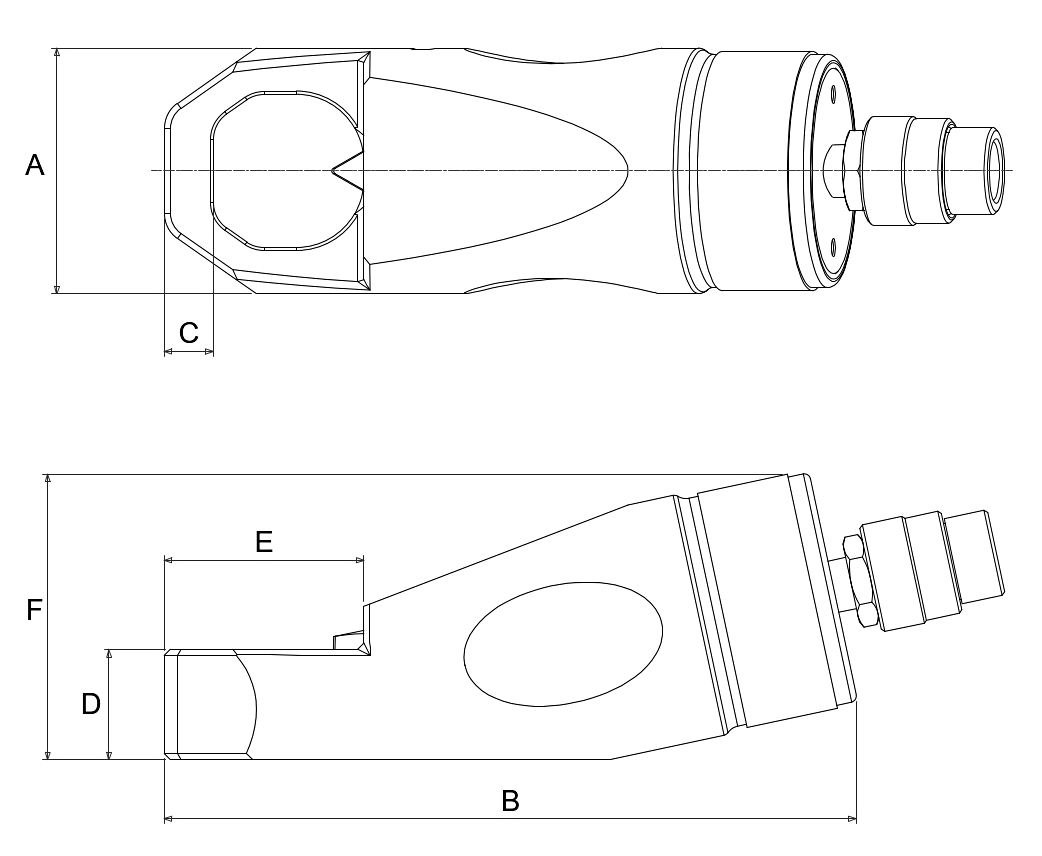

A
80 mm
B
226 mm
C
15 mm
D
36 mm
E
65 mm
F
93 mm
≈m
5.6 kg
Weight

Additional information
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9
