HNS-24-32
Hydraulic nut splitter HNS-24-32
Thêm vào yêu cầu báo giá

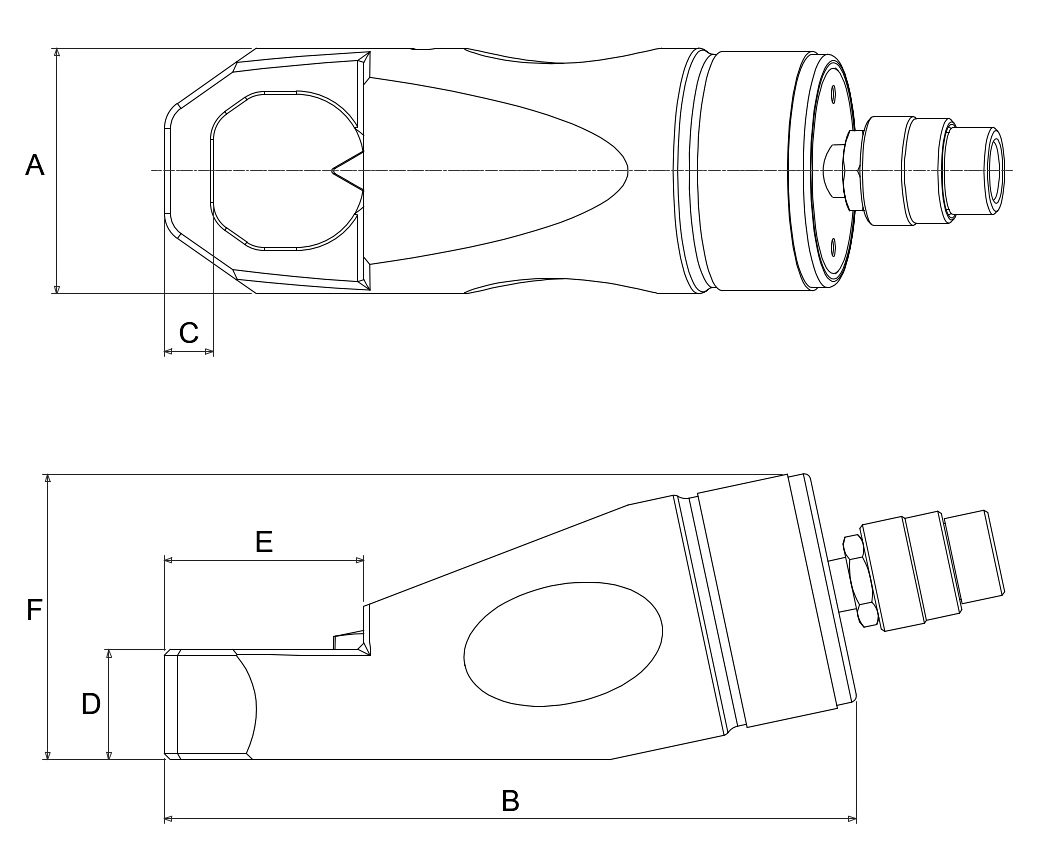

Technical data
W
24 – 32
Width across flats
M16 – M22
Nut thread
FC
140 kN
Cutting force
Voil
60 cm³
Oil capacity
A
70 mm
B
178 mm
C
13 mm
D
30 mm
E
52 mm
F
76 mm
≈m
3.75 kg
Weight

Additional information
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9
