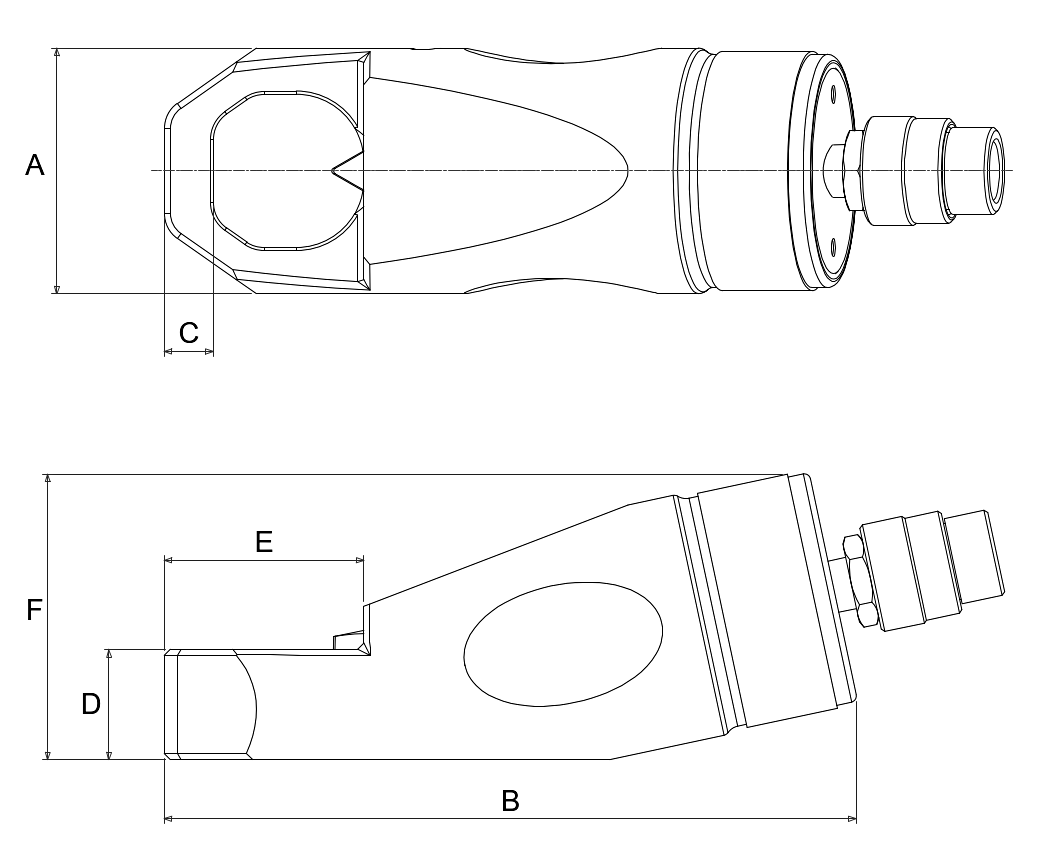

Technical data
| W | 19 – 24 | Width across flats |
M12 – M16 | Nut thread | |
| FC | 95 kN | Cutting force |
| Voil | 20 cm³ | Oil capacity |
| A | 60 mm | |
| B | 167.2 mm | |
| C | 10 mm | |
| D | 25 mm | |
| E | 40 mm | |
| F | 68 mm | |
| ≈m | 2.6 kg | Weight |
Additional information
compact design for use in the smallest spaces, robust cutting frame with angled cutting head, high-performance hydraulic cylinderfor, nuts up to and including strength class 12.9 | Product specifics |
