Main Dimensions & Performance Data

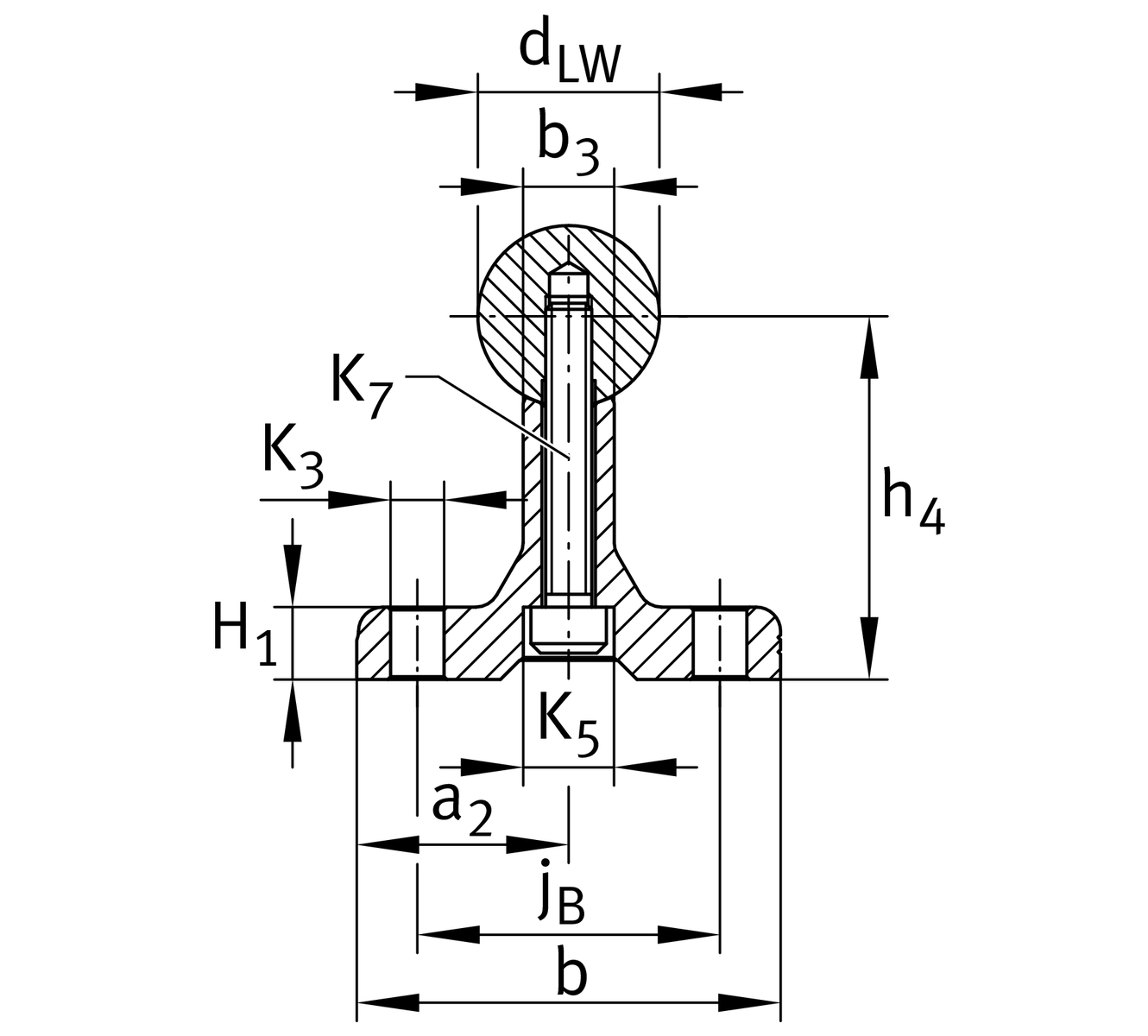

| BGR | 20 | Dimension of shaft and support body |
| Tol dLW | L | Diameter tolerance shaft |
| h4 | 53.975 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension tolerance High |
| Tol h4 | -0.051 mm | Height dimension tolerance Low |
| b | 63.5 mm | Support rail width bottom |

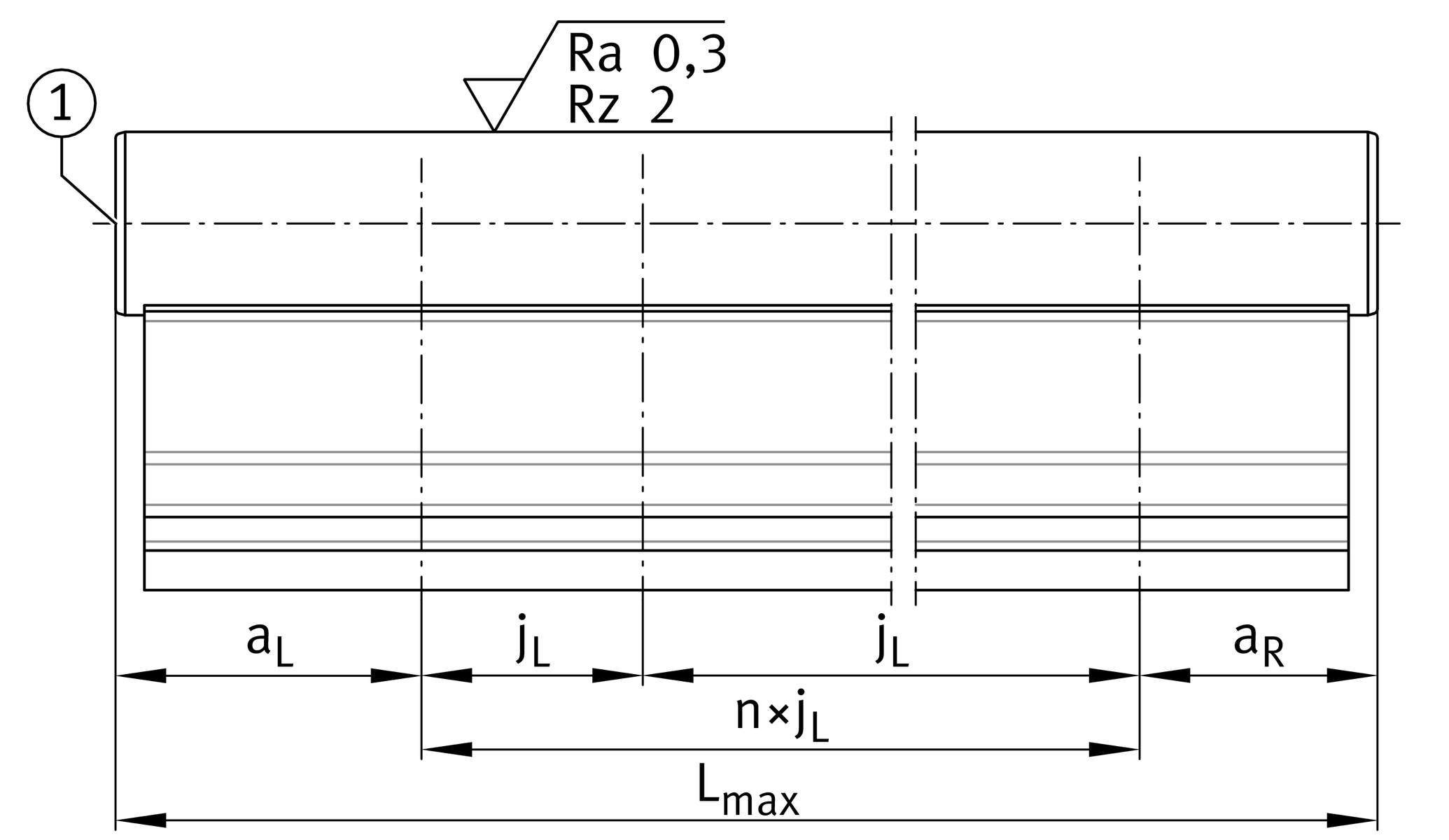

| Lmax | 5,181.6 mm | shaft and support rail-length max. 2 |
Mounting dimensions
| jB | 47.752 mm | distance jB of bore |
| b3 | 14.224 mm | Support rail width prism |
| a2 | 31.75 mm | Support rail width stop bar |
| Tol a2 | 0.051 mm | Height dimension tolerance High |
| Tol a2 | -0.051 mm | Height dimension tolerance Low |
| jL | 152.4 mm | distance radial thread |
| aL min | 75.184 mm | distance thread aL (min) 3 |
| aL max | 139.7 mm | distance thread aL (max) 3 |
| aR min | 75.184 mm | distance thread aR (min) 3 |
| aR max | 139.7 mm | distance thread aR (max) 3 |
| H1 | 7.95 mm | Support Rail height stop bar |
| K3 | 8.712 mm | Adjacent construction bore |
| K5 | 13.487 mm | Counterbore |
| K6 | 8.712 mm | Connecting bore |
| K7 | SHR 5/16-18X1-3/4 SOC HD CAP | screw size |
| h7 | 8.255 mm | depth counterbore |
| m | 8.92 kg/m | Shaft and support rail unit weight |
Your current product variant
| Diameter shaft | 1-1/4" | dLW |
