Main Dimensions & Performance Data

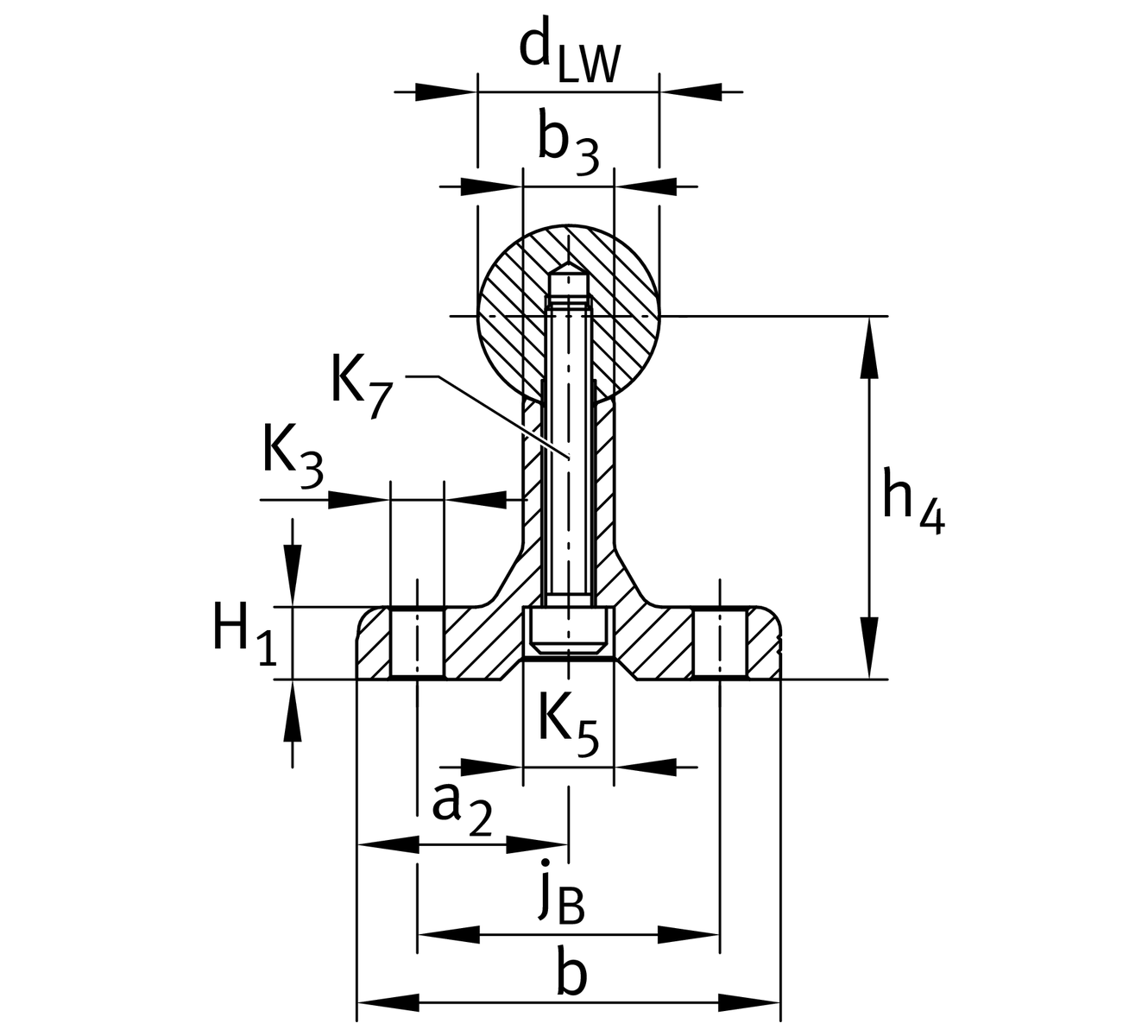

| BGR | 16 | Dimension of shaft and support body |
| Tol dLW | L | Diameter tolerance shaft |
| h4 | 44.45 mm | Height dimension 1 |
| Tol h4 | 0.051 mm | Height dimension tolerance High |
| Tol h4 | -0.051 mm | Height dimension tolerance Low |
| b | 54.102 mm | Support rail width bottom |

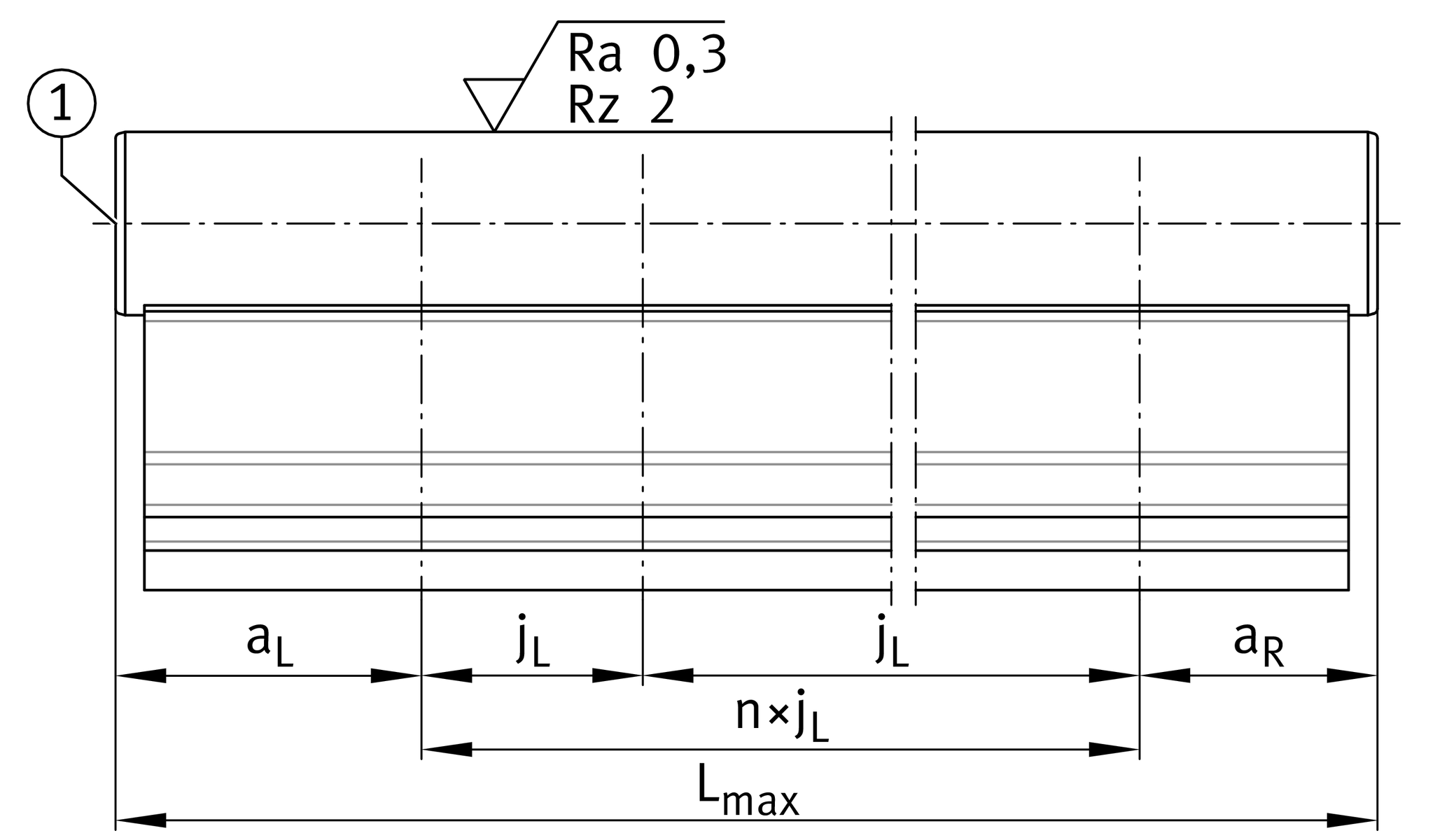

| Lmax | 5,181.6 mm | shaft and support rail-length max. 2 |
Mounting dimensions
| jB | 38.1 mm | distance jB of bore |
| b3 | 12.7 mm | Support rail width prism |
| a2 | 27 mm | Support rail width stop bar |
| Tol a2 | 0.051 mm | Height dimension tolerance High |
| Tol a2 | -0.051 mm | Height dimension tolerance Low |
| jL | 152.4 mm | distance radial thread |
| aL min | 75.184 mm | distance thread aL (min) 3 |
| aL max | 139.7 mm | distance thread aL (max) 3 |
| aR min | 75.184 mm | distance thread aR (min) 3 |
| aR max | 139.7 mm | distance thread aR (max) 3 |
| H1 | 6.35 mm | Support Rail height stop bar |
| K3 | 7.137 mm | Adjacent construction bore |
| K5 | 11.1 mm | Counterbore |
| K6 | 7.137 mm | Connecting bore |
| K7 | SHR 1/4-20X1-1/2 SOC HD CAP | screw size |
| h7 | 6.858 mm | depth counterbore |
| m | 5.91 kg/m | Shaft and support rail unit weight |
Your current product variant
| Diameter shaft | 1" | dLW |
