THE30-XL

Take-up housing unit THE30-XL

Thêm vào yêu cầu báo giá

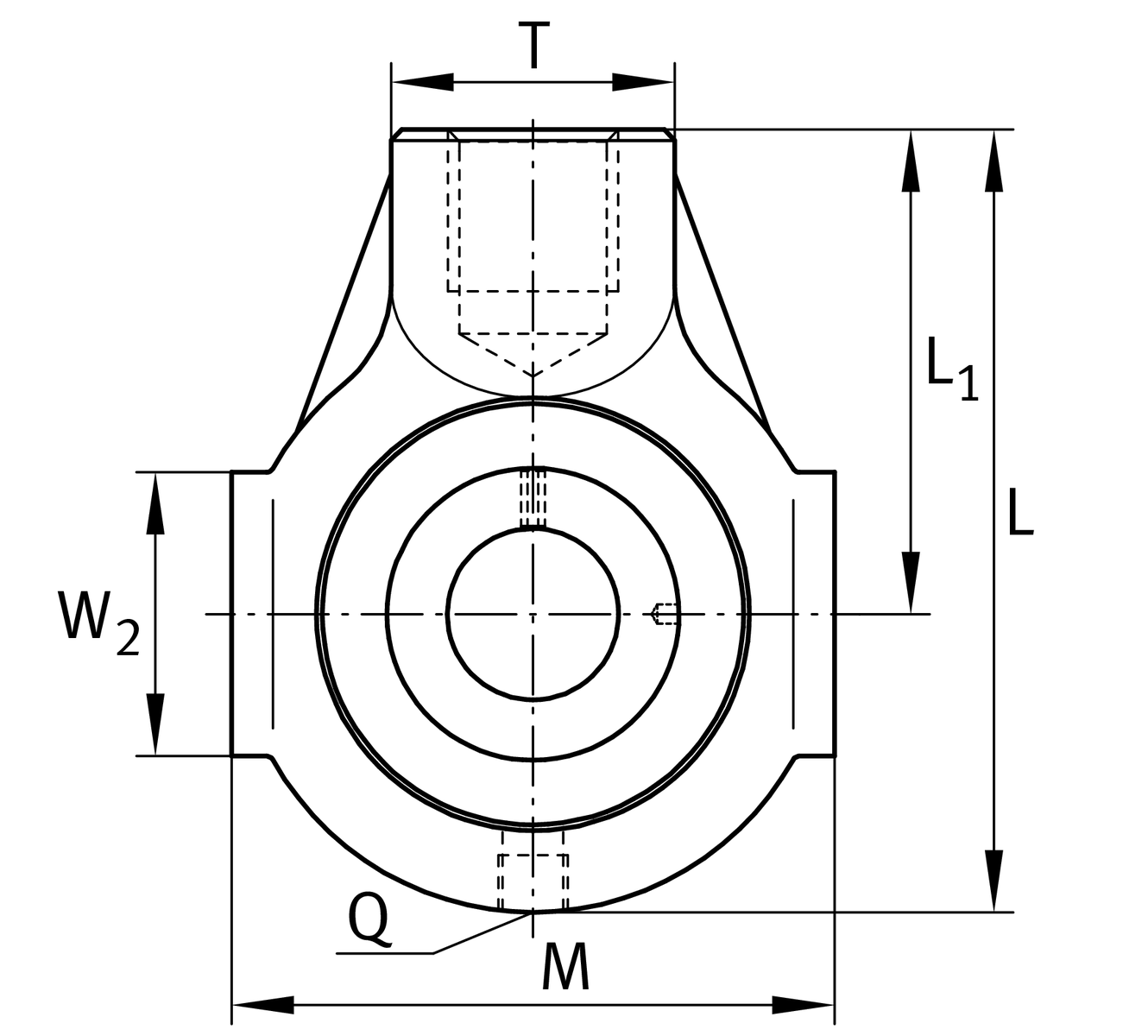

Main Dimensions & Performance Data

d	30 mm	Bore diameter
L	114 mm	Length total
M	85 mm	Housing total width
A₂	32 mm	Width housing
≈m	1.17 kg	Weight

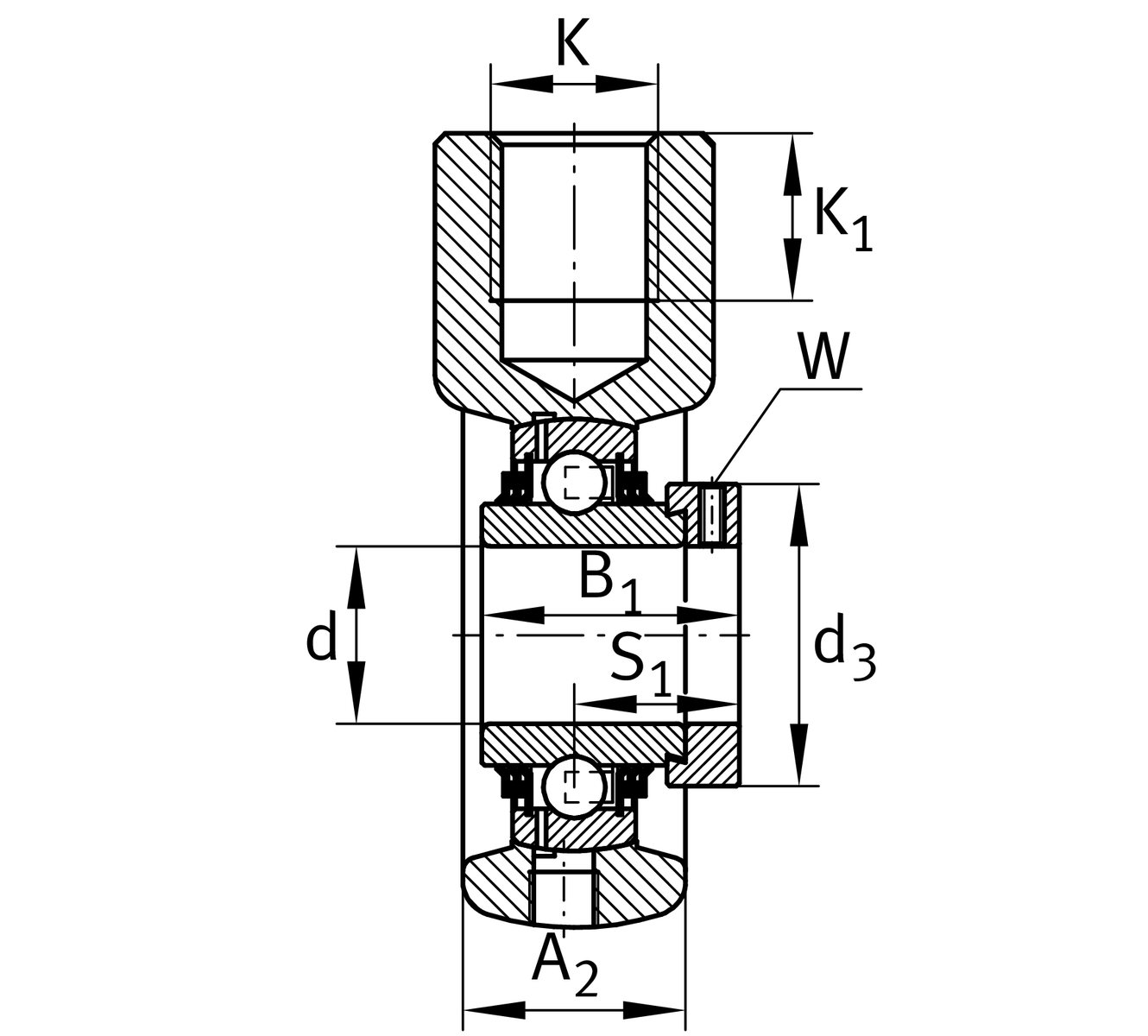

Mounting dimensions

K	M24	Thread fixing bore
K₁	24 mm	Thread depth

Dimensions

L₁	72 mm	Distance shaft axis
T	40 mm	Height housing fixing side
W₂	40 mm	Length of guidance face
Q	M6	Connection thread for lubrication

Additional information

	HE06	Housing
	GE30-XL-KTT-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
