THE35-XL
Take-up housing unit THE35-XL
Thêm vào yêu cầu báo giá

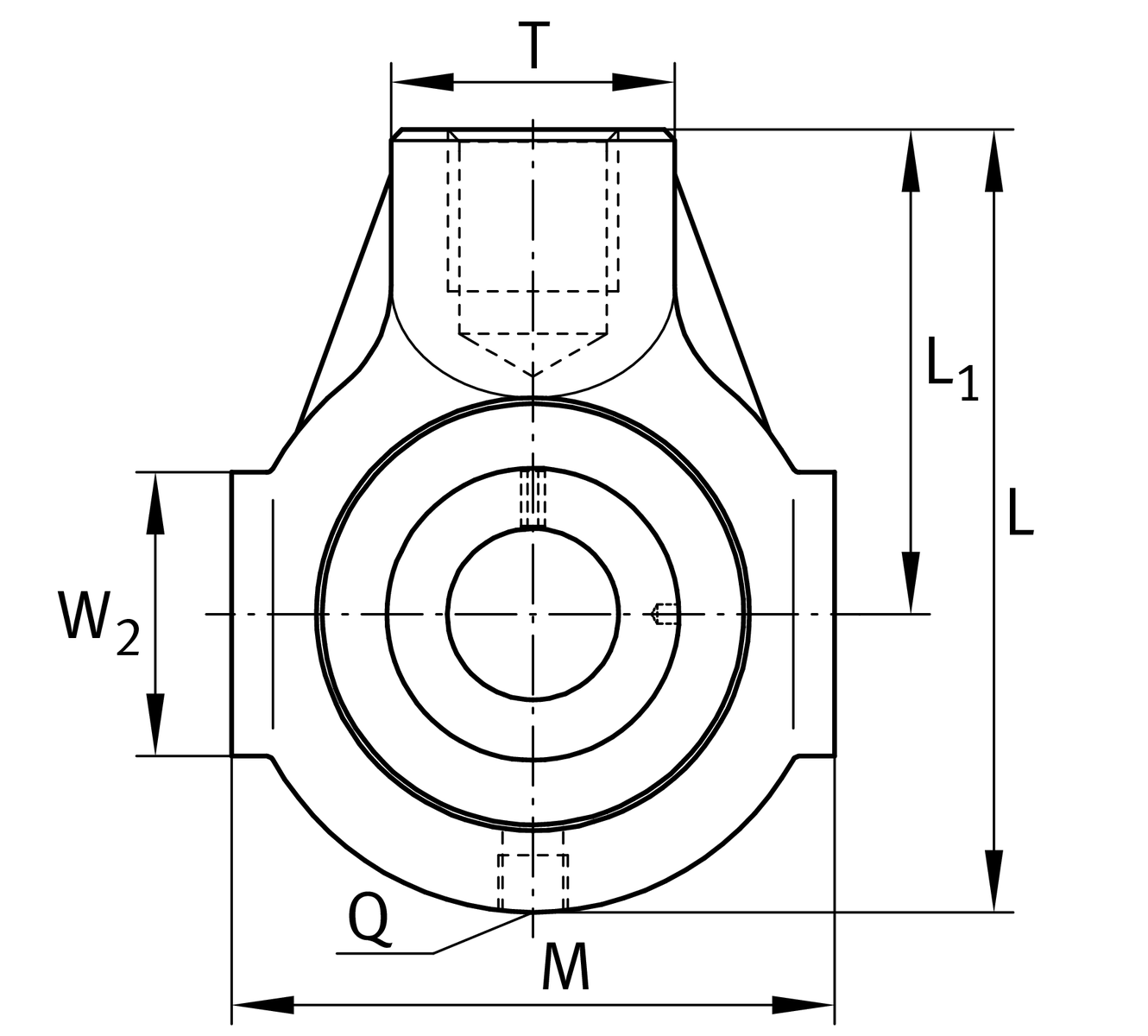

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
122 mm
Length total
M
90 mm
Housing total width
A2
32 mm
Width housing
≈m
1.35 kg
Weight

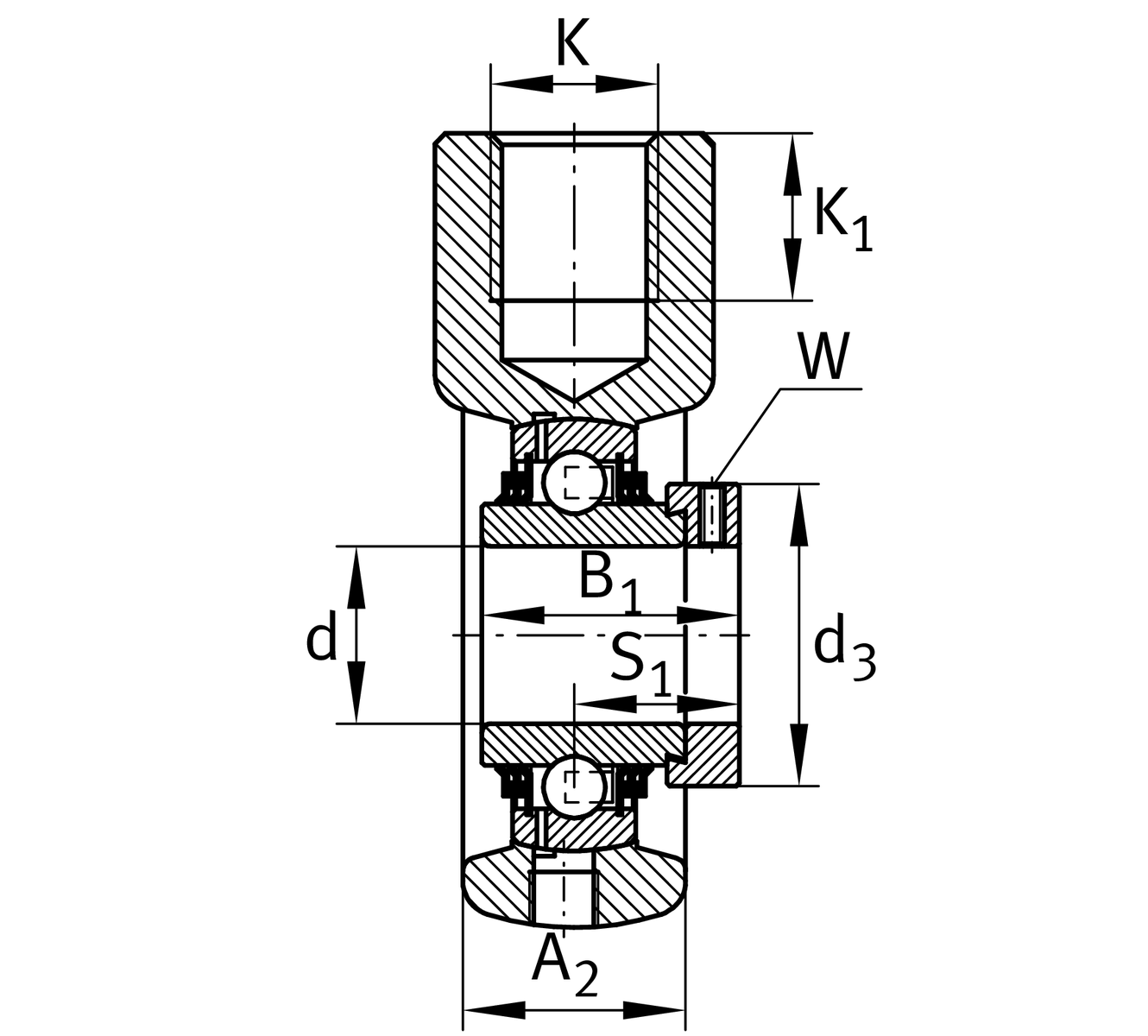

Mounting dimensions
K
M24
Thread fixing bore
K1
24 mm
Thread depth

Dimensions
L1
76 mm
Distance shaft axis
T
40 mm
Height housing fixing side
W2
49 mm
Length of guidance face
Q
M6
Connection thread for lubrication

Additional information
HE07
Housing
GE35-XL-KTT-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
