THE25-XL

Take-up housing unit THE25-XL

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	25 mm	Bore diameter
L	99 mm	Length total
M	70 mm	Housing total width
A₂	28 mm	Width housing
≈m	0.76 kg	Weight

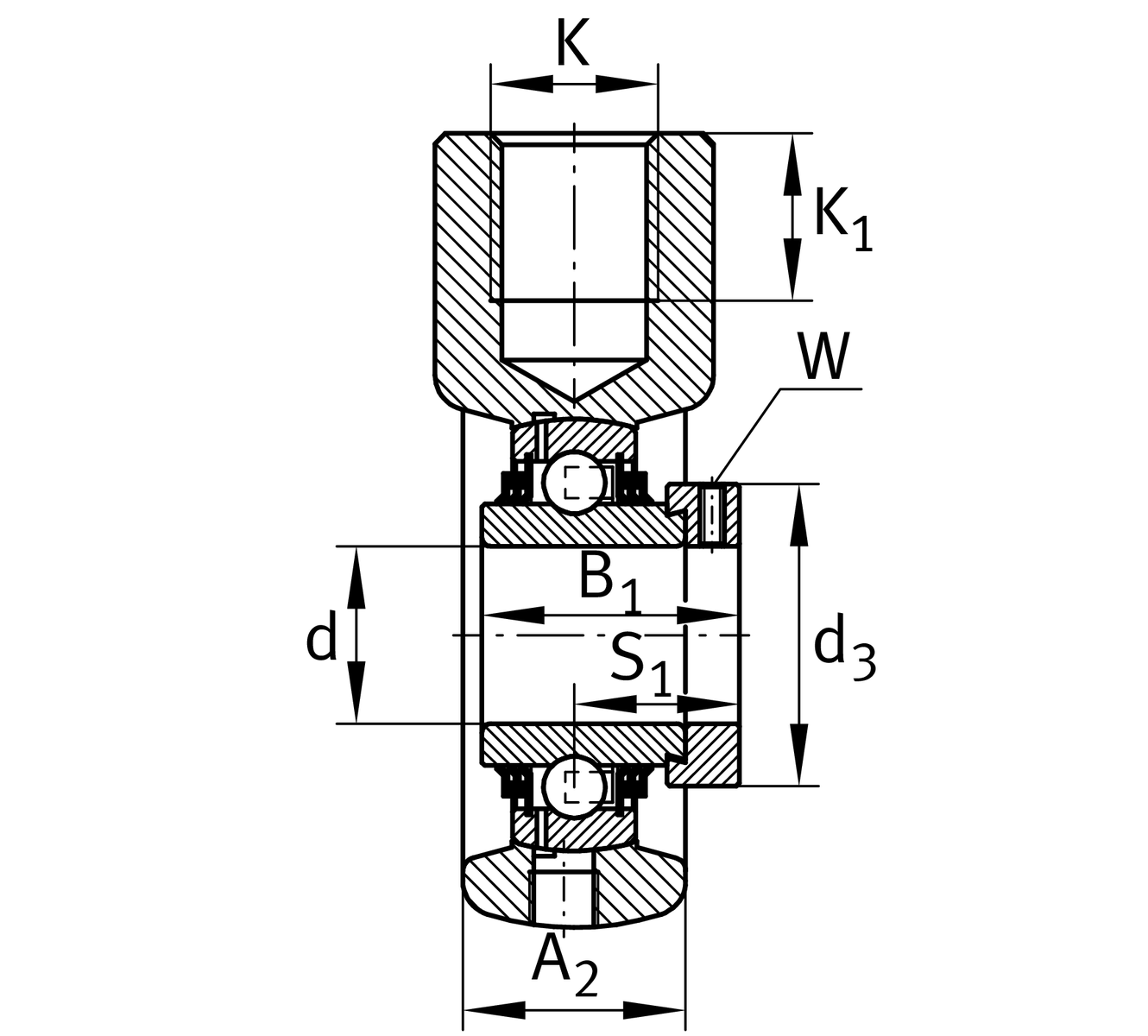

Mounting dimensions

K	M20	Thread fixing bore
K₁	22 mm	Thread depth

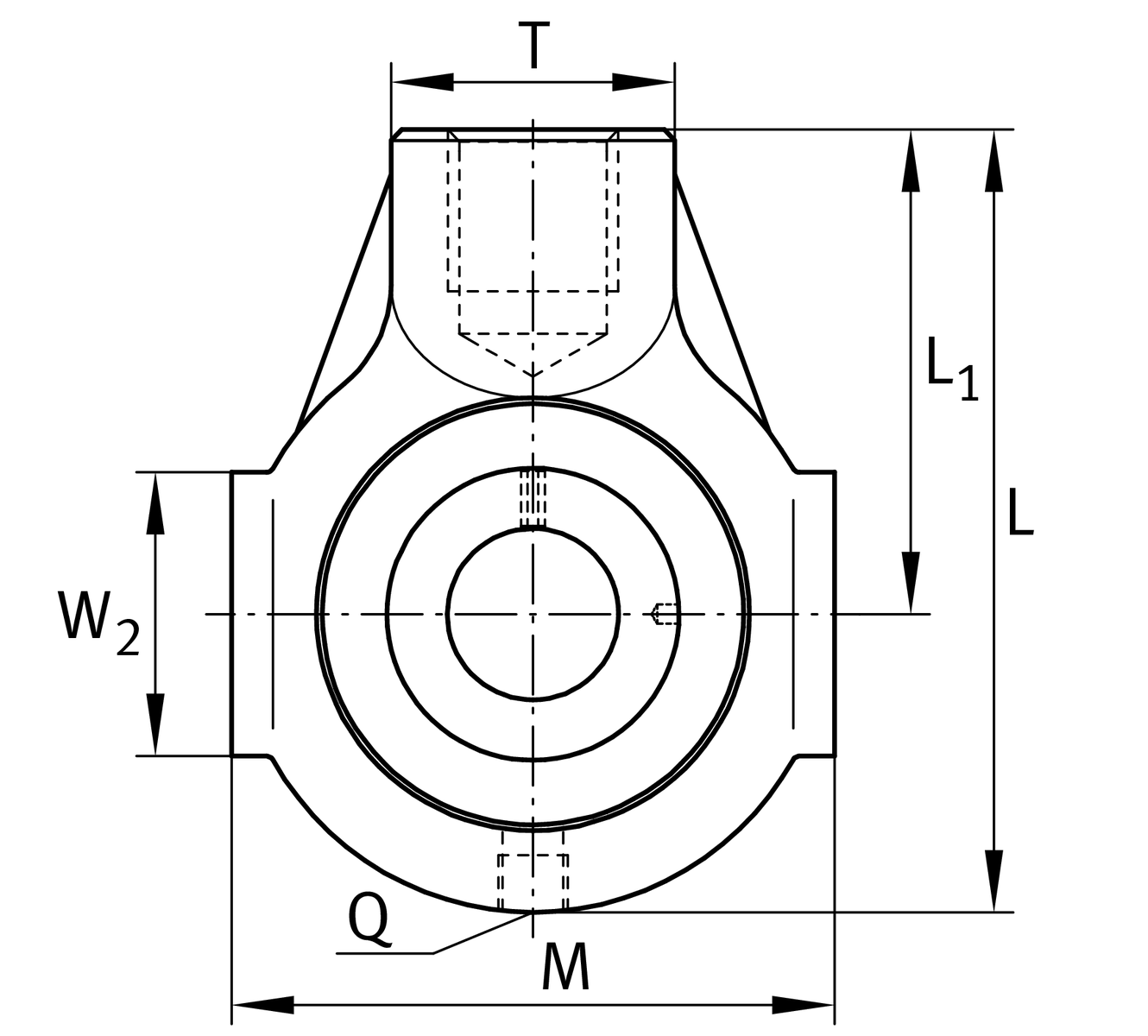

Dimensions

L₁	64 mm	Distance shaft axis
T	35 mm	Height housing fixing side
W₂	38 mm	Length of guidance face
Q	M6	Connection thread for lubrication

Additional information

	HE05	Housing
	GE25-XL-KTT-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
