Take-up housing unit THE50-XL

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	50 mm	Bore diameter
L	145 mm	Length total
M	110 mm	Housing total width
A₂	40 mm	Width housing
??m	2.059 kg	Weight

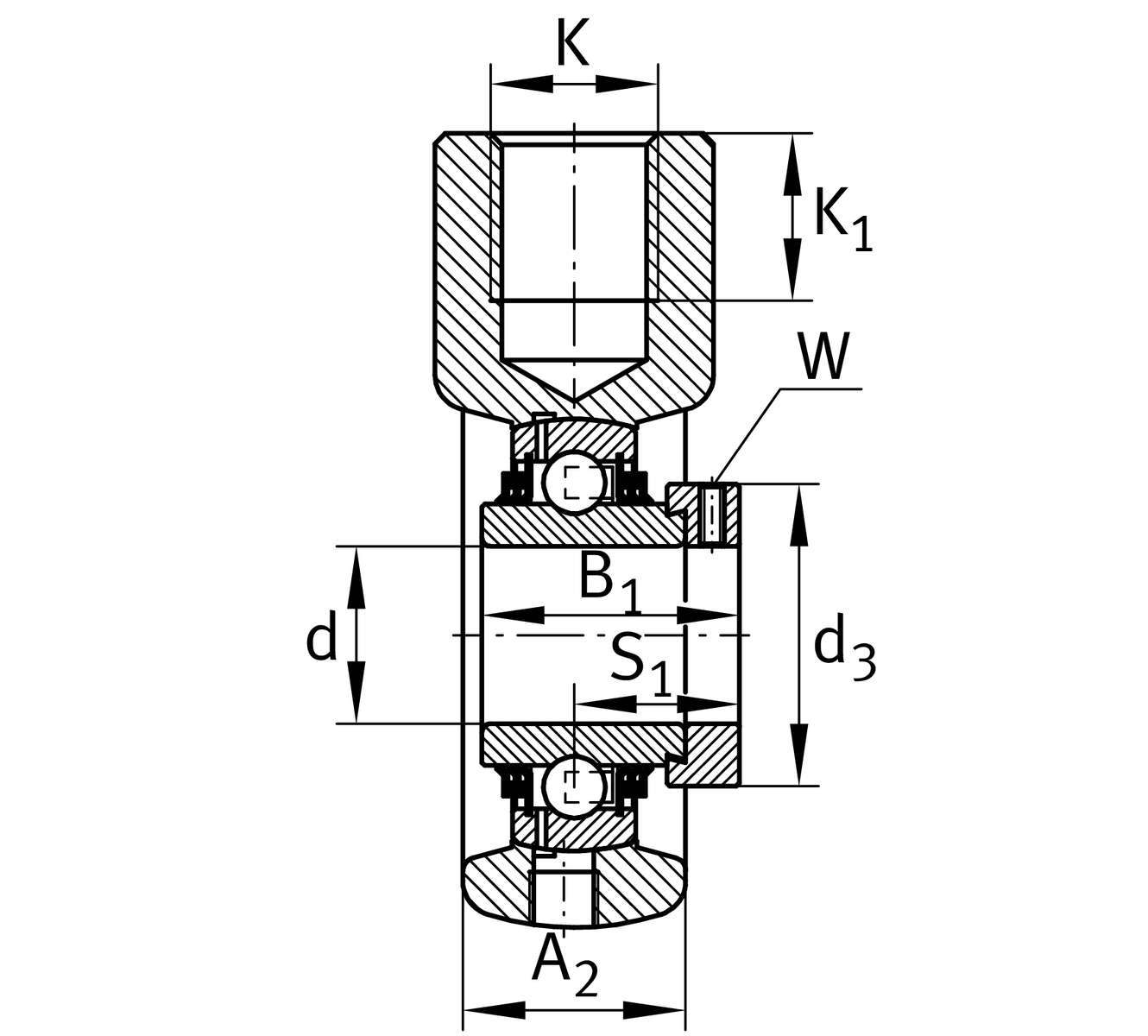

Mounting dimensions

K	M24	Thread fixing bore
K₁	24 mm	Thread depth

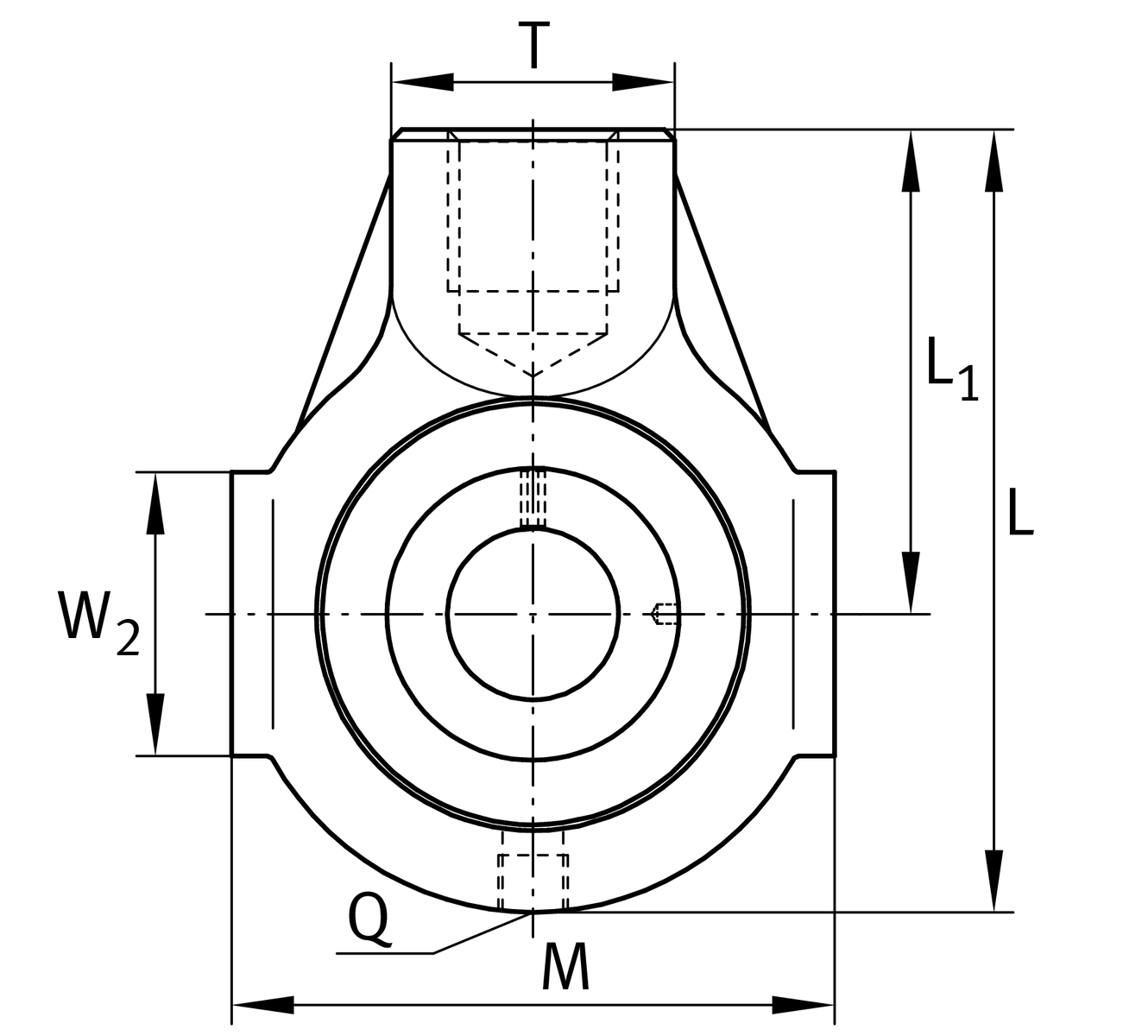

Dimensions

L₁	90 mm	Distance shaft axis
T	40 mm	Height housing fixing side
W₂	46 mm	Length of guidance face
Q	M6	Connection thread for lubrication

Additional information

	HE10	Housing
	GE50-XL-KTT-B	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
