VSA200744-N-VSP
Slewing ring, four Point contact bearings, external gear VSA200744-N-VSP
Thêm vào yêu cầu báo giá

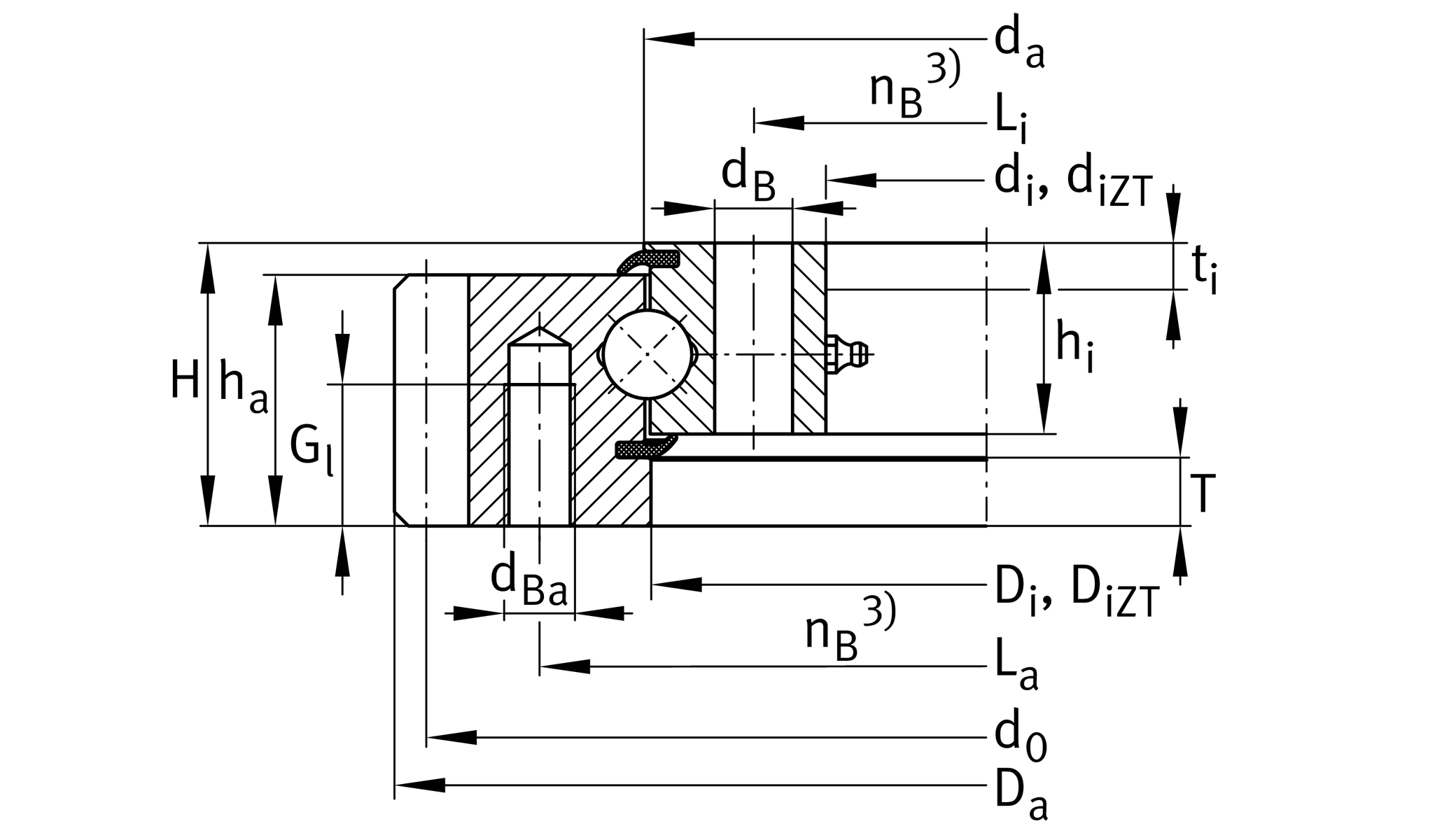

Main Dimensions & Performance Data
di
672 mm
Bore Diameter
0.6 mm
Bore diameter upper tolerance
0 mm
Bore diameter lower tolerance
H
56 mm
Height
Da
838.1 mm
Outside Diameter
ha
44.5 mm
Width outer ring
hi
44.5 mm
height of inner ring
≈m
61.5 kg
Weight

Dimensions
Di
745.5 mm
Inner diameter outer ring
0.6 mm
Inner diameter outer ring upper tolerance
0 mm
Inner diameter outer ring lower tolerance
da
742.5 mm
Outside diameter inner ring
0 mm
Outside diameter inner ring upper tolerance
-0.6 mm
Outside diameter inner ring lower tolerance
ni
40
Number of fixing holes in inner ring
Li
698 mm
Pitchcircle diameter fixing holes inner ring
dB
14 mm
Fixing bore
na
36
Number of fixing holes in outer ring
La
785 mm
Pitchcircle diameter fixing holes outer ring
dBa
M12
Tread fixing bore
Gl
20 mm
Thread depth fixing hole
Fr zul
148,700 N
Max. radial load fixing screws (friction locking)
d0
828 mm
Pitch circle diameter gearing
m
6 mm
Modul of gearing
z
138
Number of teeth
-0.158 mm
Profile shift
Fz norm
21,300 N
Max. tooth force root fatigue strenght (at a shock factor of 1,2)
Fz max
31,500 N
Max. tooth force against tooth fracture (at a shock factor of 1,35)

Temperature range
Tmin
-25 °C
Operating temperature min.
Tmax
80 °C
Operating temperature max.

Calculation factors
Ca
171,000 N
Basic dynamic load rating, axial
C0a
1,200,000 N
Basic static load rating, axial
Cr
155,000 N
Basic dynamic load rating, radial
C0r
550,000 N
Basic static load rating, radial

Your current product variant
GearingNNormalized gear teeth on bearing ring
PreloadVSPBearing with preload
Thêm vào yêu cầu báo giá
