SK108-209-KRR-B-L402/70-AH11
Self-aligning deep groove ball bearings SK108-209-KRR-B-L402/70-AH11
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
DSP
85 mm
Outside diameter
B
30 mm
Width
Cr
34,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
≈m
0.57 kg
Weight

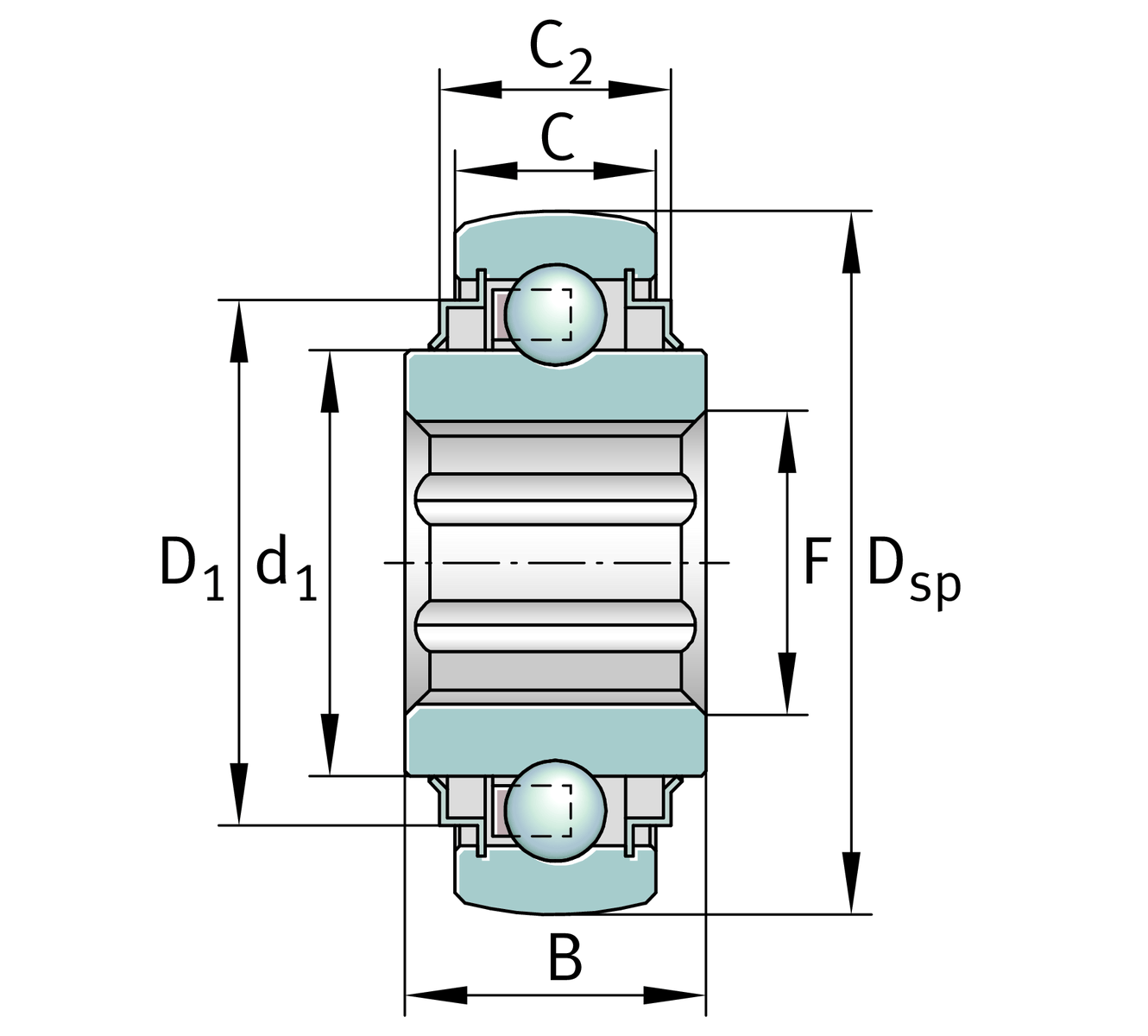

Dimensions
D1
71.7 mm
Outside diameter seal
C
19 mm
Width, outer ring
F
45.1 mm
Maximum distance hexagonal bore
r
0.13 mm
Radius hexagonal bore
C2
23.9 mm
Sealing total width
d1
57.9 mm
Rib diameter inner ring
d
38.1 mm
Width of flats
0.12 mm
Width across flats upper tolerance
d
38.1 mm
Width across flats (Inch)
0 mm
Width across flats lower tolerance

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
14.3
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset209209
Lubricant quantityL402/70Grease (L402/70)
