FAG INA Schaeffler
INA
SKE17-204-KRR-B
Self-aligning deep groove ball bearings SKE17-204-KRR-B
Thêm vào yêu cầu báo giá

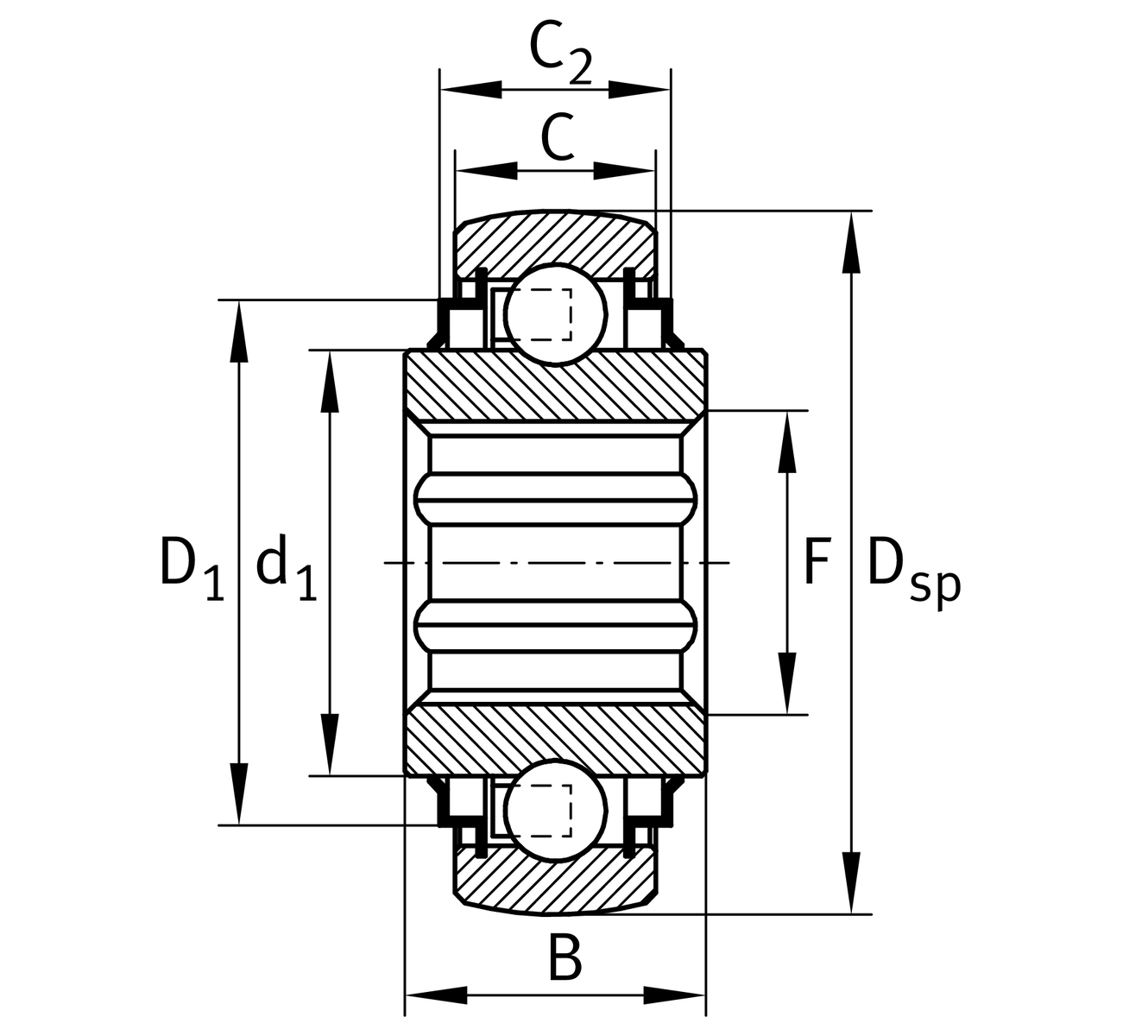

Main Dimensions & Performance Data
DSP
47 mm
Outside diameter
B
17.7 mm
Width
Cr
13,600 N
Basic dynamic load rating, radial
C0r
6,600 N
Basic static load rating, radial
≈m
116.652 g
Weight

Dimensions
C
14 mm
Width, outer ring
F
20.2 mm
Maximum distance hexagonal bore
r
0.13 mm
Radius hexagonal bore
d1
28.7 mm
Rib diameter inner ring
d
17 mm
Width of flats
0.15 mm
Width across flats upper tolerance
0.05 mm
Width across flats lower tolerance

Calculation factors
f0
13.1
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceBSpherical
Deviating ballset204204
