FAG INA Schaeffler
INA
TCJT55-XL
Flanged housing unit TCJT55-XL
Thêm vào yêu cầu báo giá

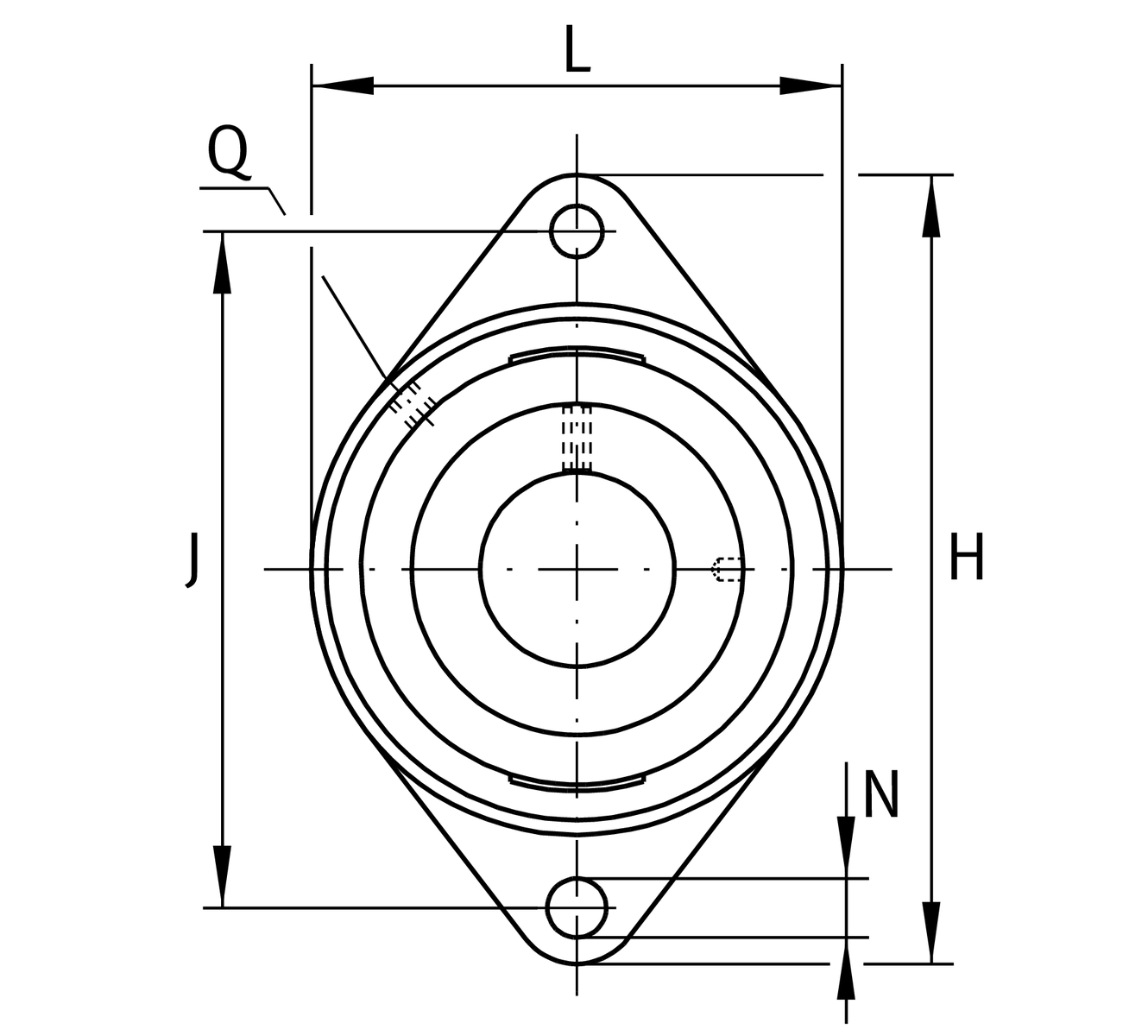

Main Dimensions & Performance Data
d
55 mm
Bore diameter
L
134 mm
Flange width
H
222 mm
Height flange
U
74.6 mm
Total height unit
Cr
43,500 N
Basic dynamic load rating, radial
C0r
29,000 N
Basic static load rating, radial
Cur
1,240 N
Fatigue load limit, radial
≈m
3.14 kg
Weight

Mounting dimensions
J
184 mm
Distance fixing bore
N
18 mm
Fixing bore
n
2
Number of screwing holes
W
5 mm
Width of flats

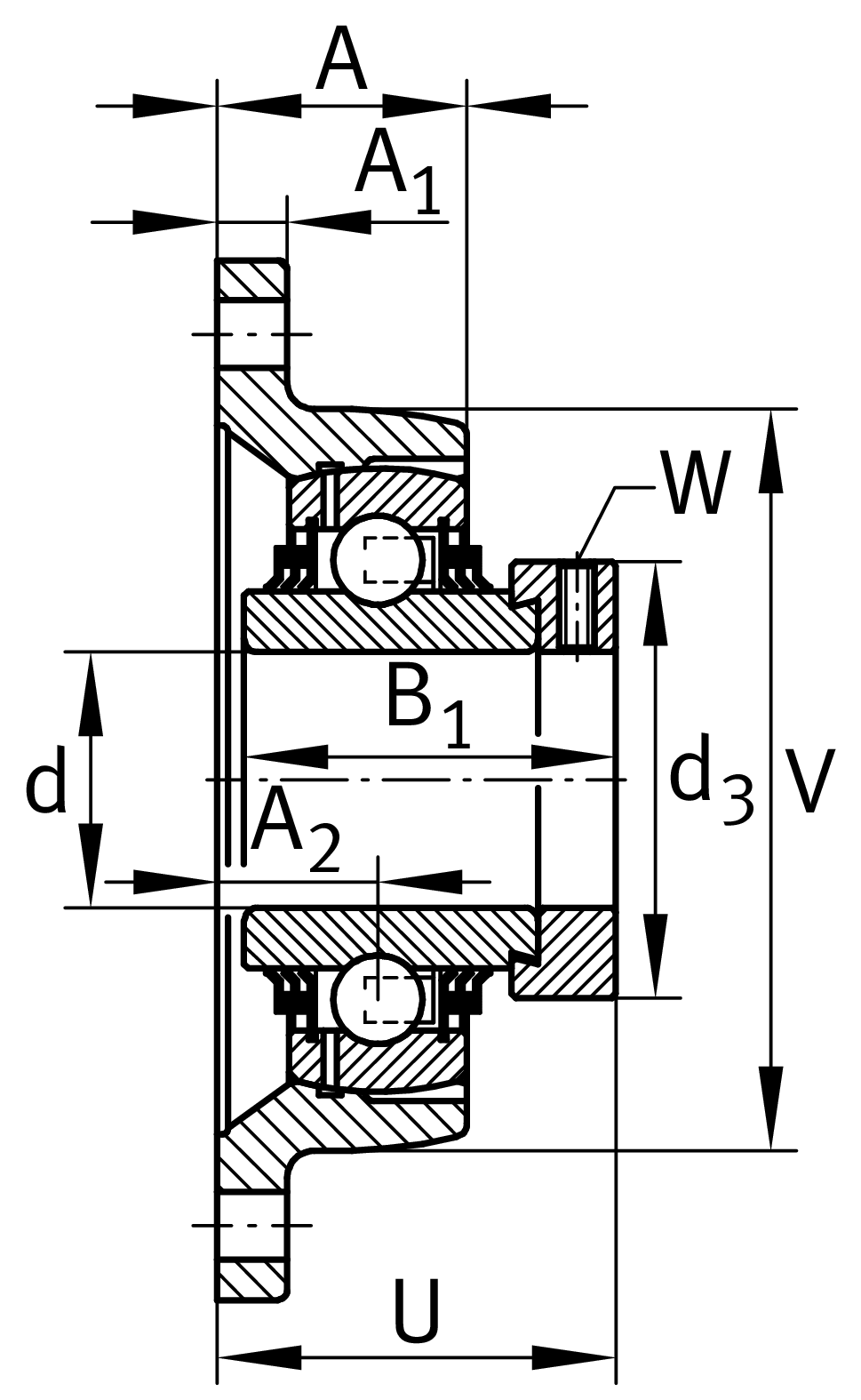

Dimensions
A
43.5 mm
Height housing
A1
15 mm
Thickness of flange
A2
31 mm
Distance raceway
B1
71.4 mm
Locking collar total width
V
134 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
76 mm
Outside diameter locking collar

Additional information
1
Number of housings
CJT11
Housing
GE55-XL-KTT-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
