TCJT50-XL-N
Flanged housing unit TCJT50-XL-N
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
50 mm
Bore diameter
L
116 mm
Flange width
H
190 mm
Height flange
U
66.2 mm
Total height unit
Cr
37,500 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
990 N
Fatigue load limit, radial
≈m
2.24 kg
Weight

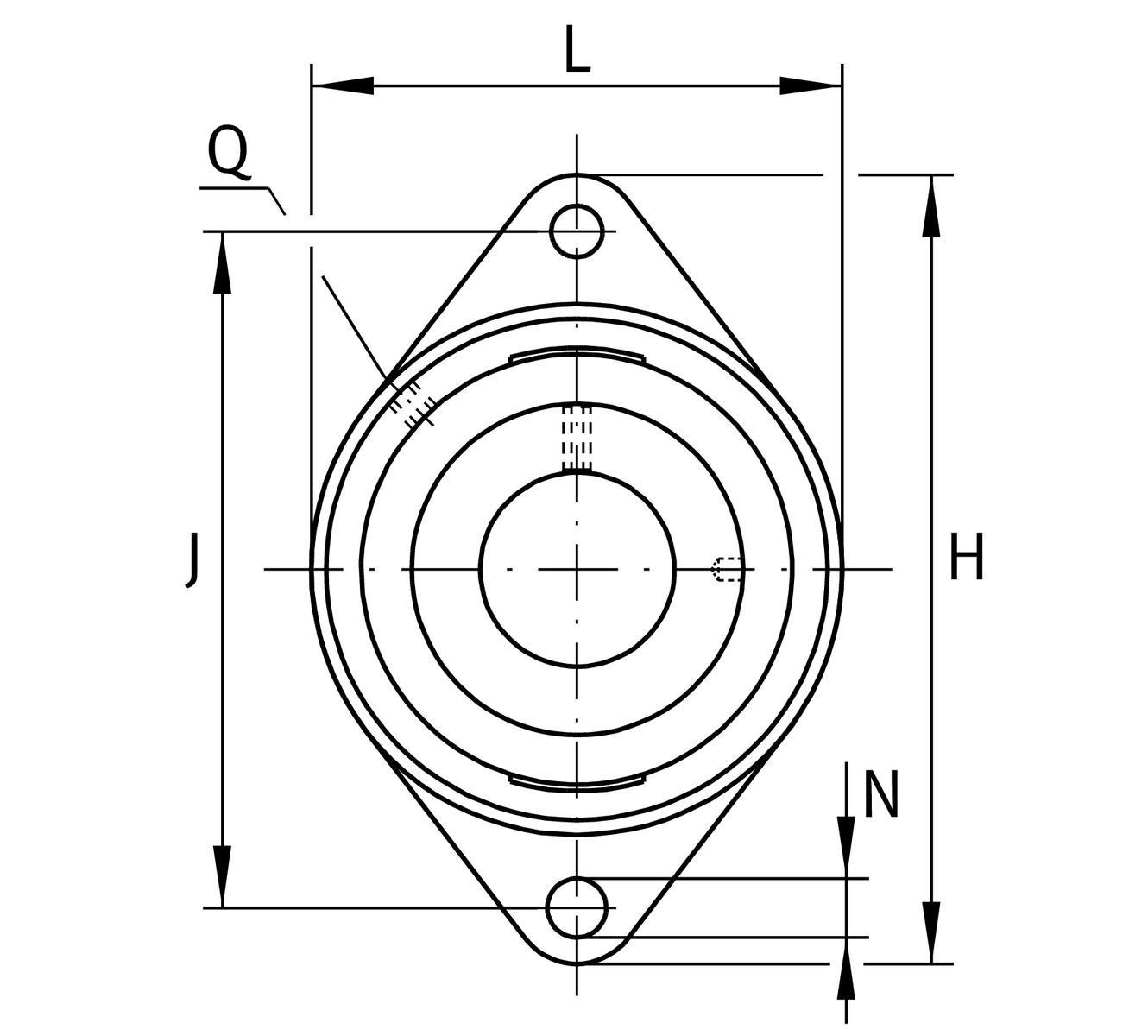

Mounting dimensions
J
157 mm
Distance fixing bore
N
18 mm
Fixing bore
n
2
Number of screwing holes
W
5 mm
Width of flats

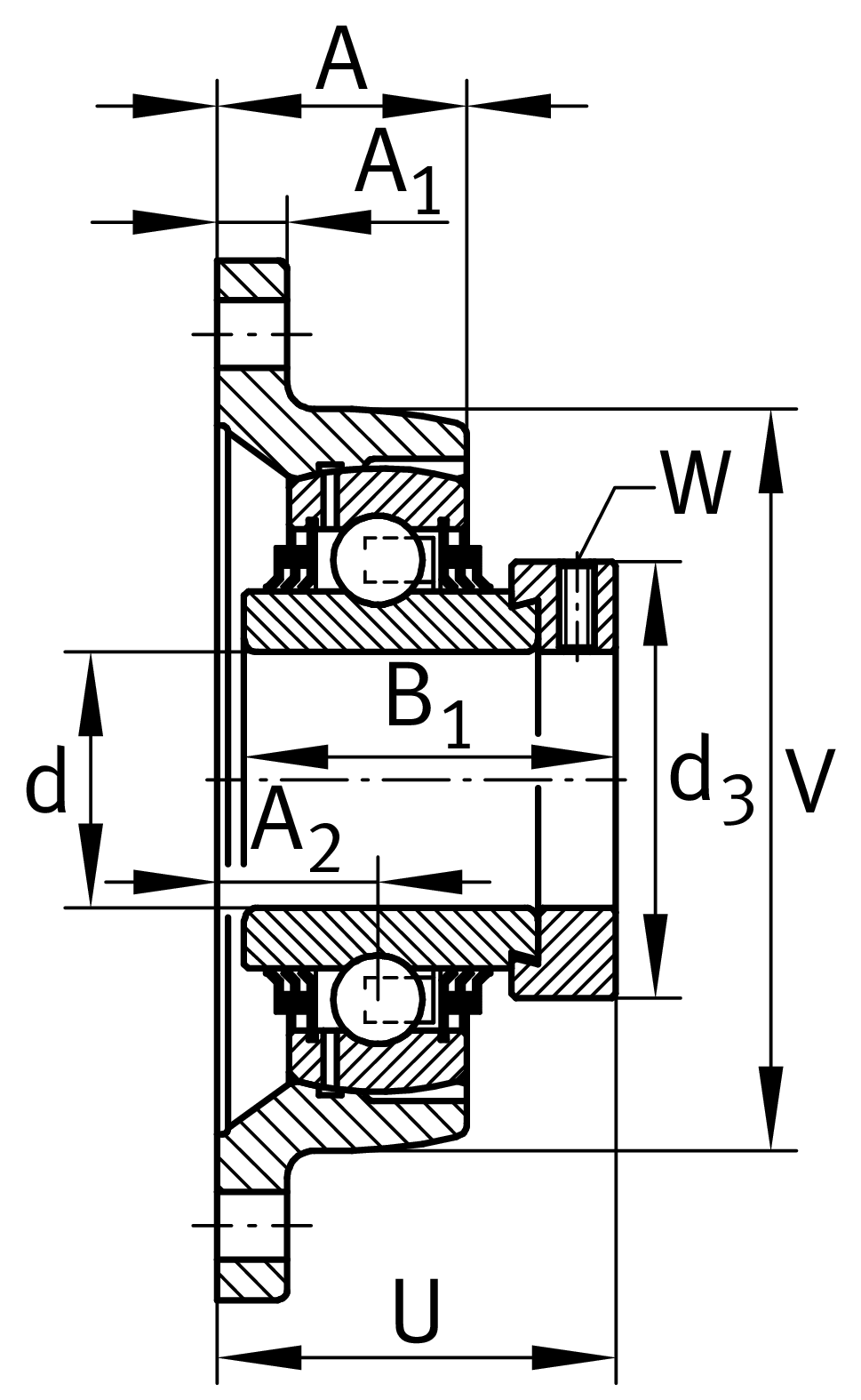

Dimensions
A
39 mm
Height housing
A1
13 mm
Thickness of flange
A2
28 mm
Distance raceway
B1
62.8 mm
Locking collar total width
V
116 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
69 mm
Outside diameter locking collar

Additional information
1
Number of housings
CJT10
Housing
GE50-XL-KTT-B
Bearing designation
KASK10
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
