Main Dimensions & Performance Data
| di | 360 mm | Bore Diameter |
0.036 mm | Bore diameter upper tolerance | |
0 mm | Bore diameter lower tolerance | |
| Da | 435 mm | Outside Diameter |
0 mm | Outside diameter upper tolerance | |
-0.04 mm | Outside diameter lower tolerance | |
| H | 25.4 mm | Height |
| ≈m | 7.55 kg | Weight |

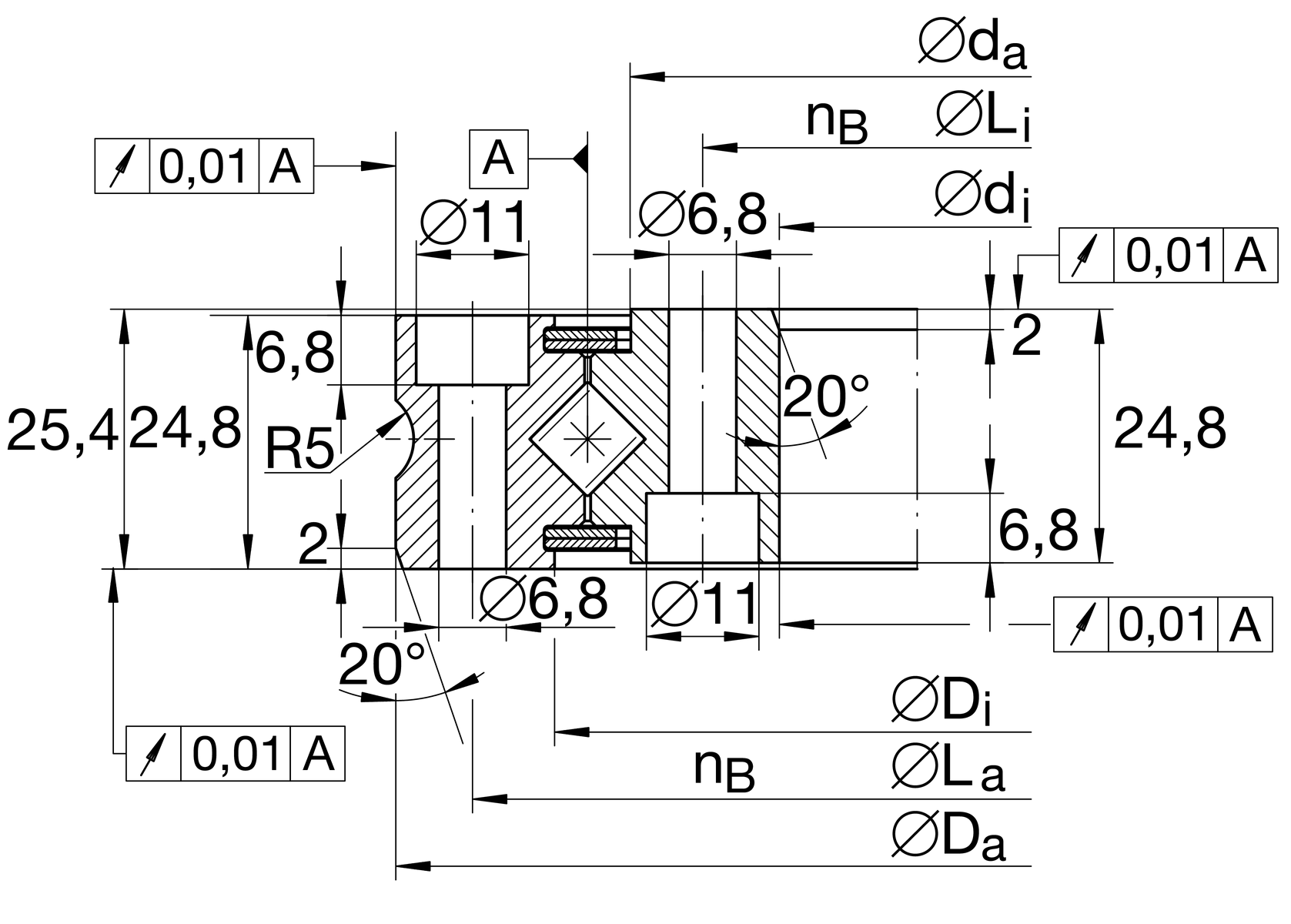

Dimensions
| Di | 404 mm | Inner diameter outer ring |
| ha | 24.8 mm | height outer ring |
| La | 420 mm | Pitchcircle diameter fixing holes outer ring |
| na | 36 | Number of fixing holes in outer ring |
| da | 389 mm | Outside diameter inner ring |
| hi | 24.8 mm | height of inner ring |
| dB | 6.8 mm | Fixing bore |
| dS | 11 mm | Counterbore diameter of fixing holes |
| tS | 6.8 mm | Counterbore depth of fixing holes |
| Li | 375 mm | Pitchcircle diameter fixing holes inner ring |
| ni | 36 | Number of fixing holes in inner ring |
| rgroove | 5 mm | Groove radius |
0.01 mm | Running accuracy A (related to the raceway) |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 80 °C | Operating temperature max. |
Calculation factors
| Ca | 105,000 N | Basic dynamic load rating, axial |
| Cr | 75,000 N | Basic dynamic load rating, radial (for radial load only) |
| C0a | 580,000 N | Basic static load rating, axial |
| C0r | 285,000 N | Basic static load rating, radial (for radial load only) |
| nG | 96 1/min | Limiting speed |
| Fr zu. | 24,500 N | Max. radial load screws |
