Main Dimensions & Performance Data
| d | 50 mm | Bore diameter |
| H | 165 mm | Height flange |
| U | 50.6 mm | Total height unit |
| Cr | 35,000 N | Basic dynamic load rating, radial |
| C0r | 23,200 N | Basic static load rating, radial |
| Cur | 990 N | Fatigue load limit, radial |
| ≈m | 2.37 kg | Weight |

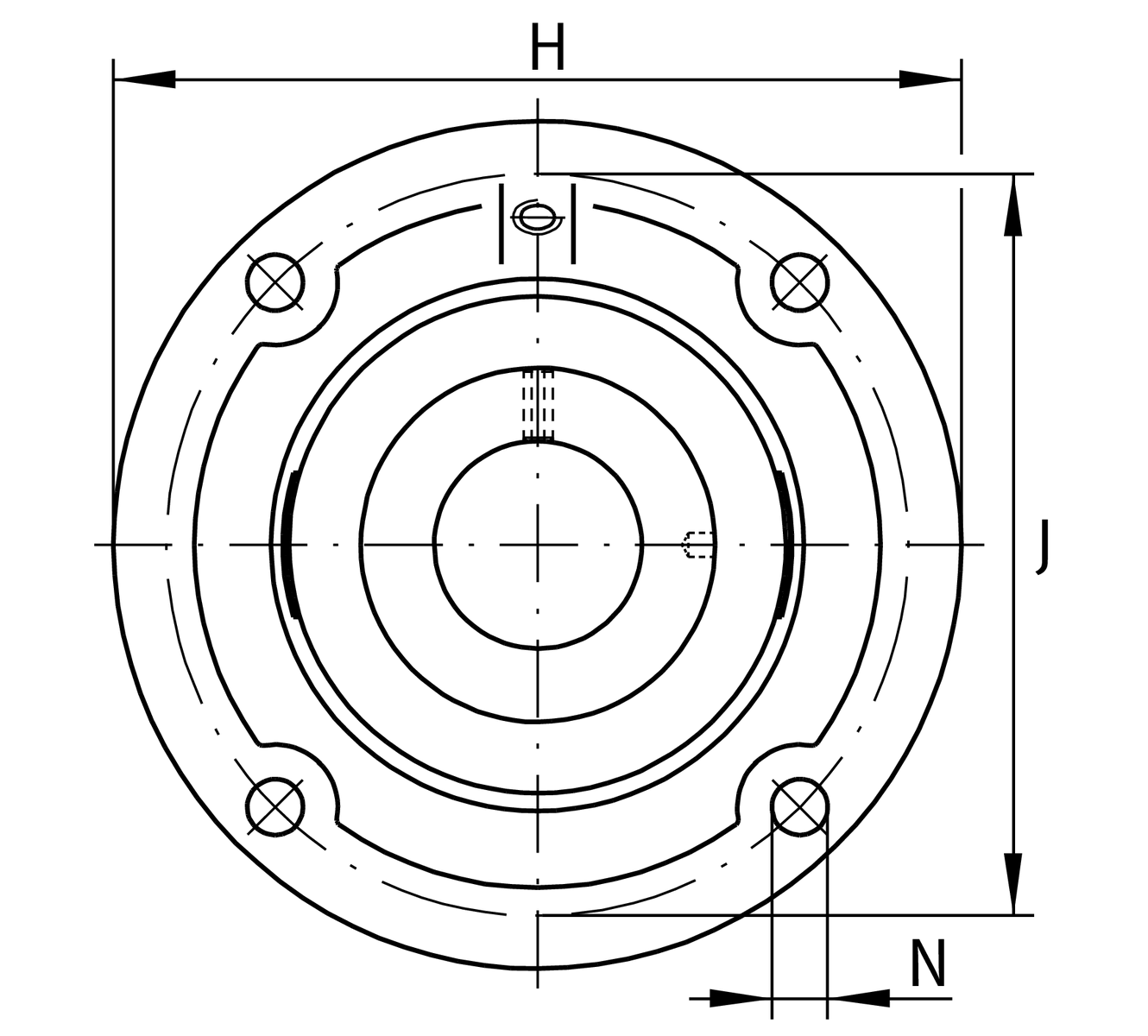

Mounting dimensions
| J | 136 mm | Distance fixing bore |
| J | 136 mm | Pitch circle diameter (holes) |
| N | 14 mm | Fixing bore |
| T1 | 4 mm | Height spigot |
| Z | 115 mm | Diameter spigot |
h8 | Diameter spigot clearance | |
| n | 4 | Number of screwing holes |

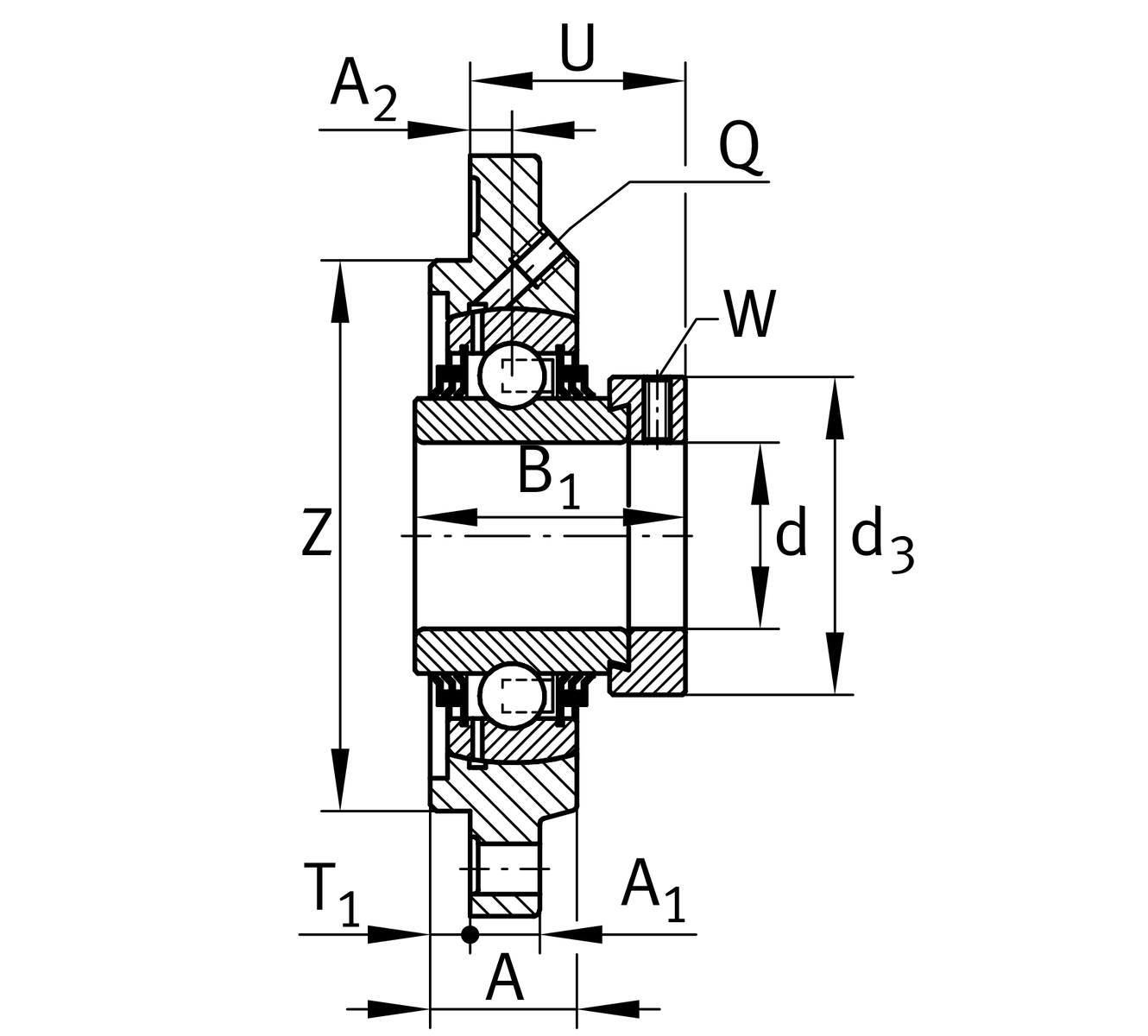

Dimensions
| A | 27.5 mm | Height housing |
| A1 | 13 mm | Thickness of flange |
| A2 | 12.5 mm | Distance raceway |
| B1 | 62.8 mm | Locking collar total width |
| Q | Rp1/8 | Connection thread for lubrication |
Additional information
1 | Number of housings | |
FE10 | Housing | |
GE50-XL-KTT-B | Bearing designation | |
KASK10 | Protecting cap |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Groove | N | Cast iron housing with undercut slot for end caps |
| Material | GG | Grey cast iron |
