RAE50-XL-NPP-FA106
Radial insert ball bearing RAE50-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
90 mm
Outside diameter
B
30.2 mm
Width
B1
43.8 mm
Locking collar total width
Cr
35,000 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
1,090 N
Fatigue load limit, radial
≈m
0.779 kg
Weight

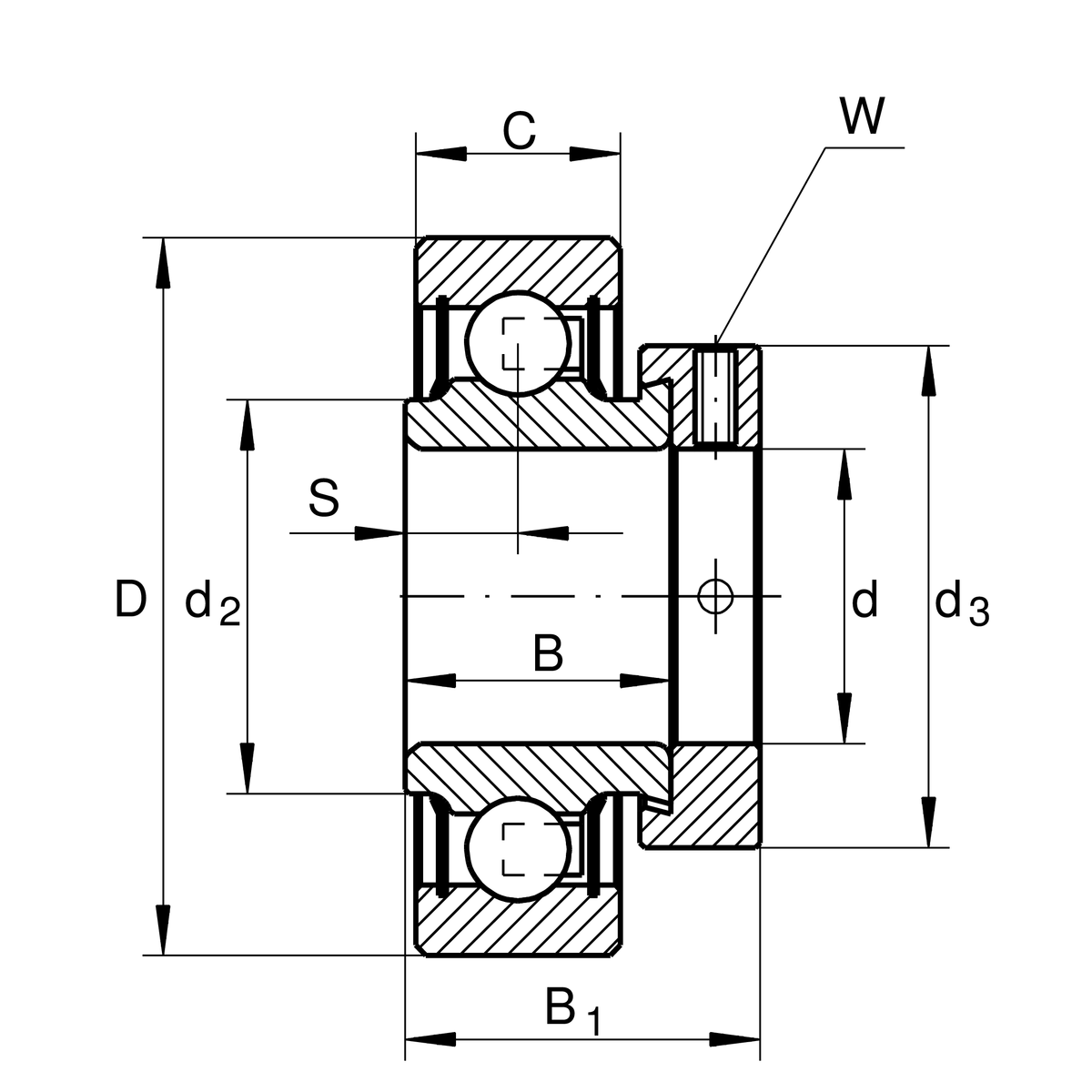

Dimensions
C
22 mm
Width, outer ring
S
11 mm
Distance raceway
d2
59.4 mm
Rib diameter sealing inner ring
d3
69 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
14.4
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
