RAE45-XL-NPP-FA106
Radial insert ball bearing RAE45-XL-NPP-FA106
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
45 mm
Bore diameter
D
85 mm
Outside diameter
B
30.2 mm
Width
B1
43.8 mm
Locking collar total width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
20,400 N
Basic static load rating, radial
Cur
970 N
Fatigue load limit, radial
≈m
0.72 kg
Weight

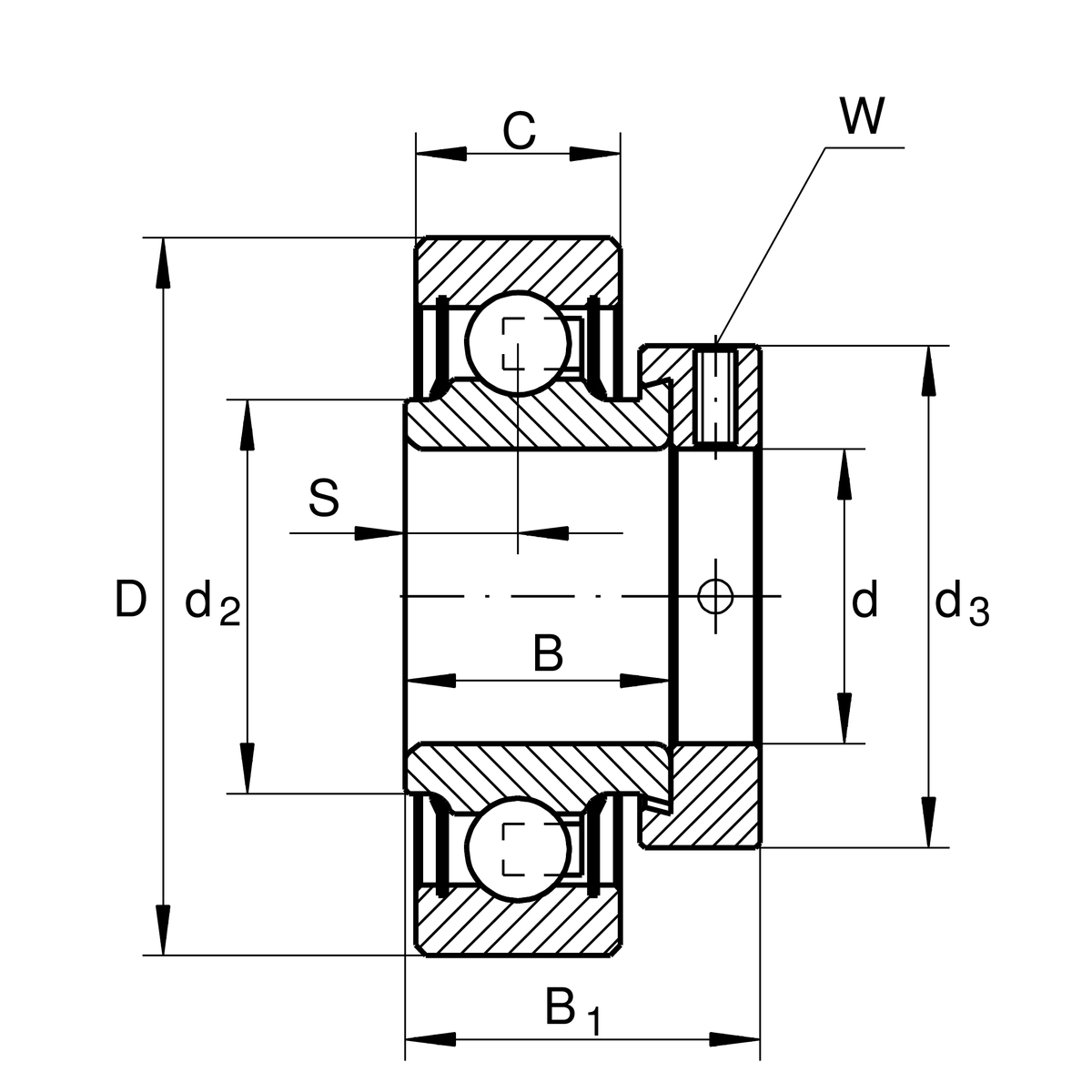

Dimensions
C
22 mm
Width, outer ring
S
11 mm
Distance raceway
d2
54.5 mm
Rib diameter sealing inner ring
d3
63 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
14.1
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
