FAG INA Schaeffler
INA
E40-XL-KRR-B-OSE
Radial insert ball bearing E40-XL-KRR-B-OSE
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
DSP
80 mm
Outside diameter
B
42.9 mm
Width
Cur
840 N
Fatigue load limit, radial
Cr
34,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.57 kg
Weight

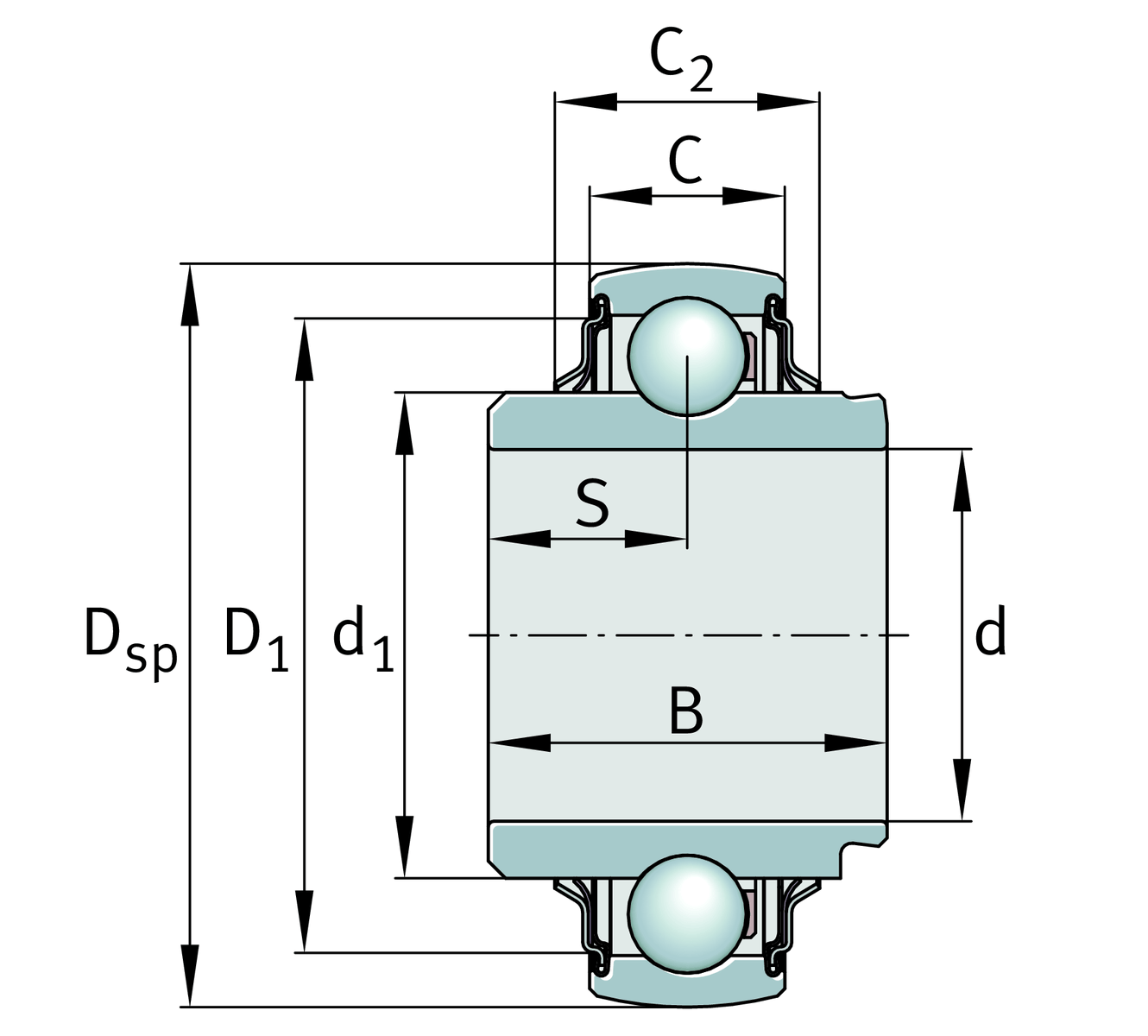

Dimensions
C
21 mm
Width, outer ring
C2
23.5 mm
Sealing total width
S
21.4 mm
Distance raceway
d1
52.3 mm
Rib diameter inner ring
D1
68.3 mm
Outside diameter seal

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
