E40-XL-KRR-B
Radial insert ball bearing E40-XL-KRR-B
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
40 mm
Bore diameter
DSP
80 mm
Outside diameter
B
42.9 mm
Width
Cur
840 N
Fatigue load limit, radial
B1
56.5 mm
Locking collar total width
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
0.731 kg
Weight

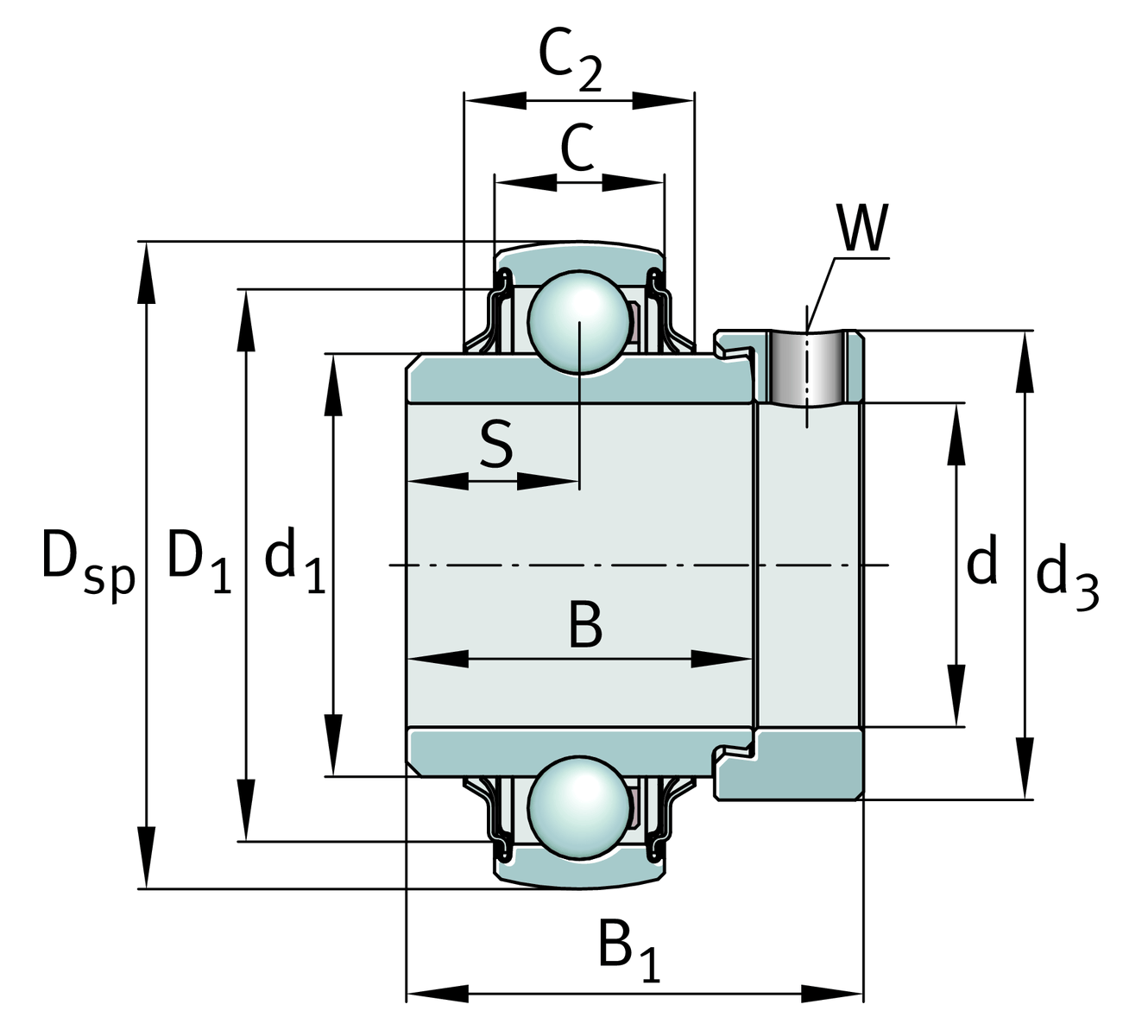

Dimensions
C
21 mm
Width, outer ring
C2
23.5 mm
Sealing total width
S
21.4 mm
Distance raceway
d1
52.3 mm
Rib diameter inner ring
D1
68.3 mm
Outside diameter seal
d3
58 mm
Outside diameter locking collar/locknut
W
5 mm
Width of flats

Calculation factors
f0
13.6
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
