FAG INA Schaeffler
FAG
SAFD530X0503U
Plummer block housings, split, SAF SAFD530X0503U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
131.762 mm
Shaft diameter inch
d1
131.7625 mm
Shaft diameter
a
539.75 mm
Length foot
h1
317.5 mm
Total height
g
206.375 mm
Width housing body
≈m
62.8 kg
Weight

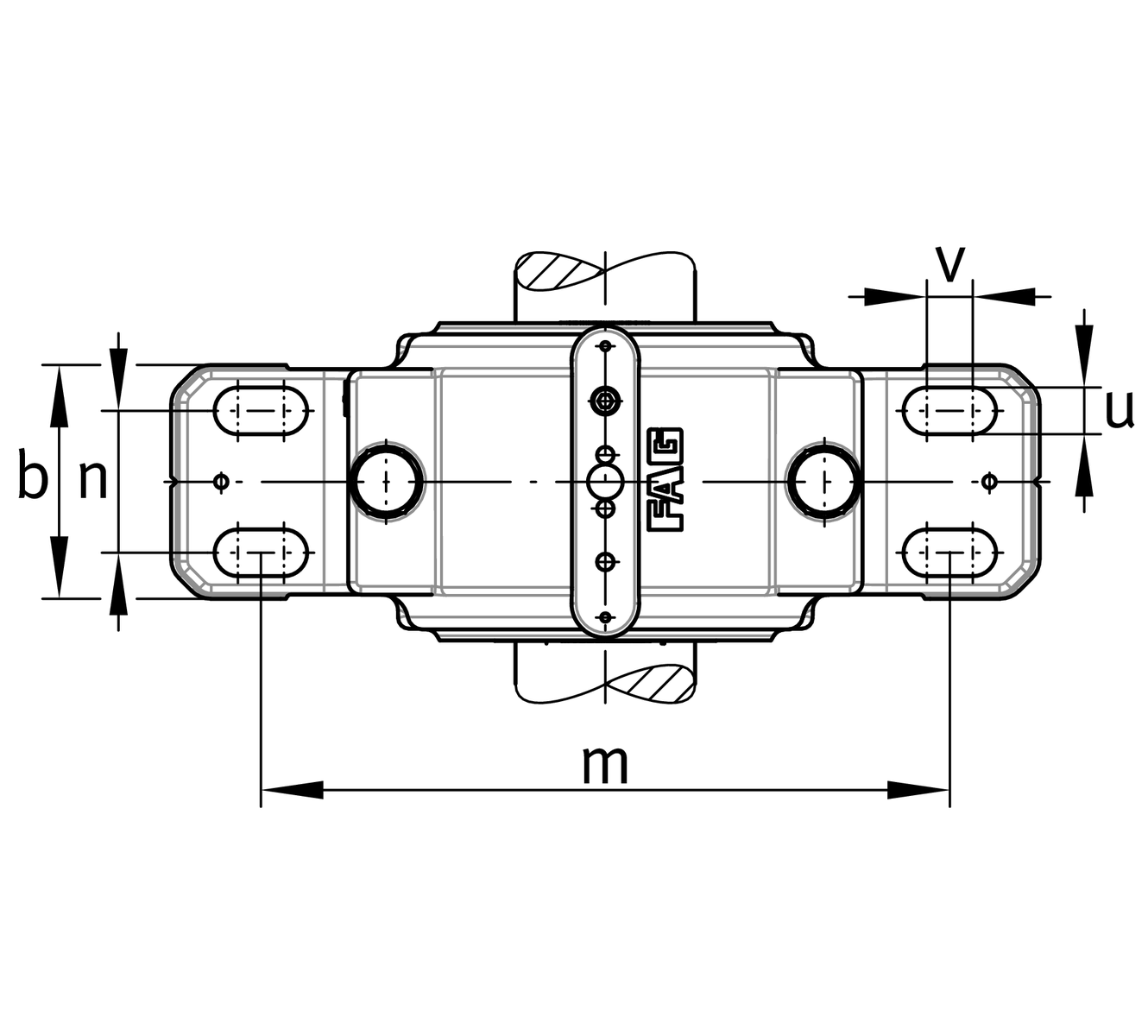

Dimensions
b
158.75 mm
Width foot
c
63.5 mm
Height foot
D
270 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
160.337 mm
Distance shaft axis
k
82.8 mm
Width bearing seat
m
447.675 mm
Distance mounting holes
n
95.25 mm
Width bore spacing
s
25.4 mm
screw size
v
28.575 mm
Width oblong hole
v
15.875 mm
Length oblong hole
