SAFD528X0415U
Plummer block housings, split, SAF SAFD528X0415U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
125.412 mm
Shaft diameter inch
d1
125.4125 mm
Shaft diameter
a
511.175 mm
Length foot
h1
298.45 mm
Total height
g
187.325 mm
Width housing body
≈m
52.3 kg
Weight

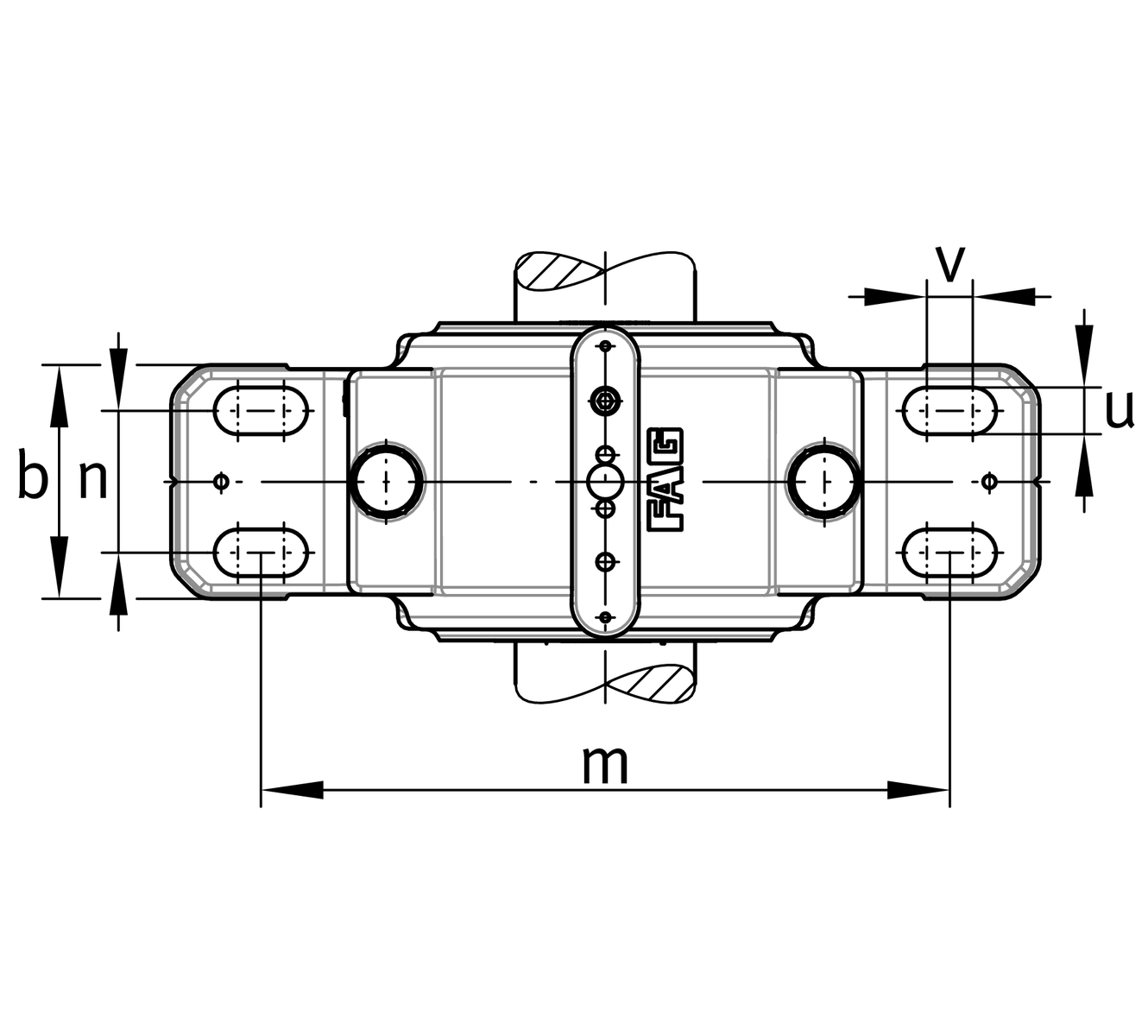

Dimensions
b
149.225 mm
Width foot
c
60.325 mm
Height foot
D
250 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
152.4 mm
Distance shaft axis
k
77.8 mm
Width bearing seat
m
419.1 mm
Distance mounting holes
n
85.725 mm
Width bore spacing
s
25.4 mm
screw size
v
28.575 mm
Width oblong hole
v
22.225 mm
Length oblong hole
