SAFD524X0403U
Plummer block housings, split, SAF SAFD524X0403U
Thêm vào yêu cầu báo giá

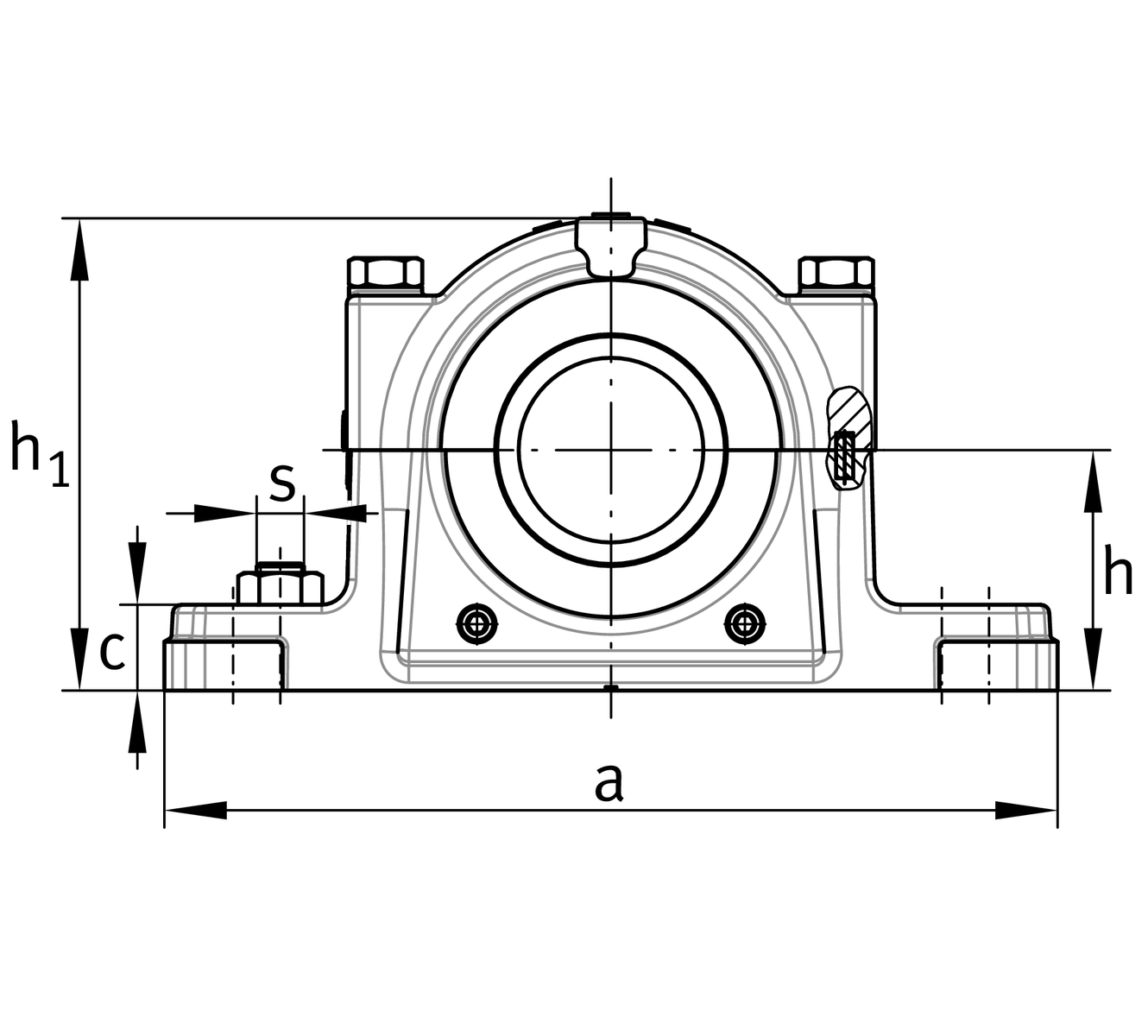

Main Dimensions & Performance Data
d1
106.362 mm
Shaft diameter inch
d1
106.3625 mm
Shaft diameter
a
419.1 mm
Length foot
h1
260.35 mm
Total height
g
180.975 mm
Width housing body
≈m
49.1 kg
Weight

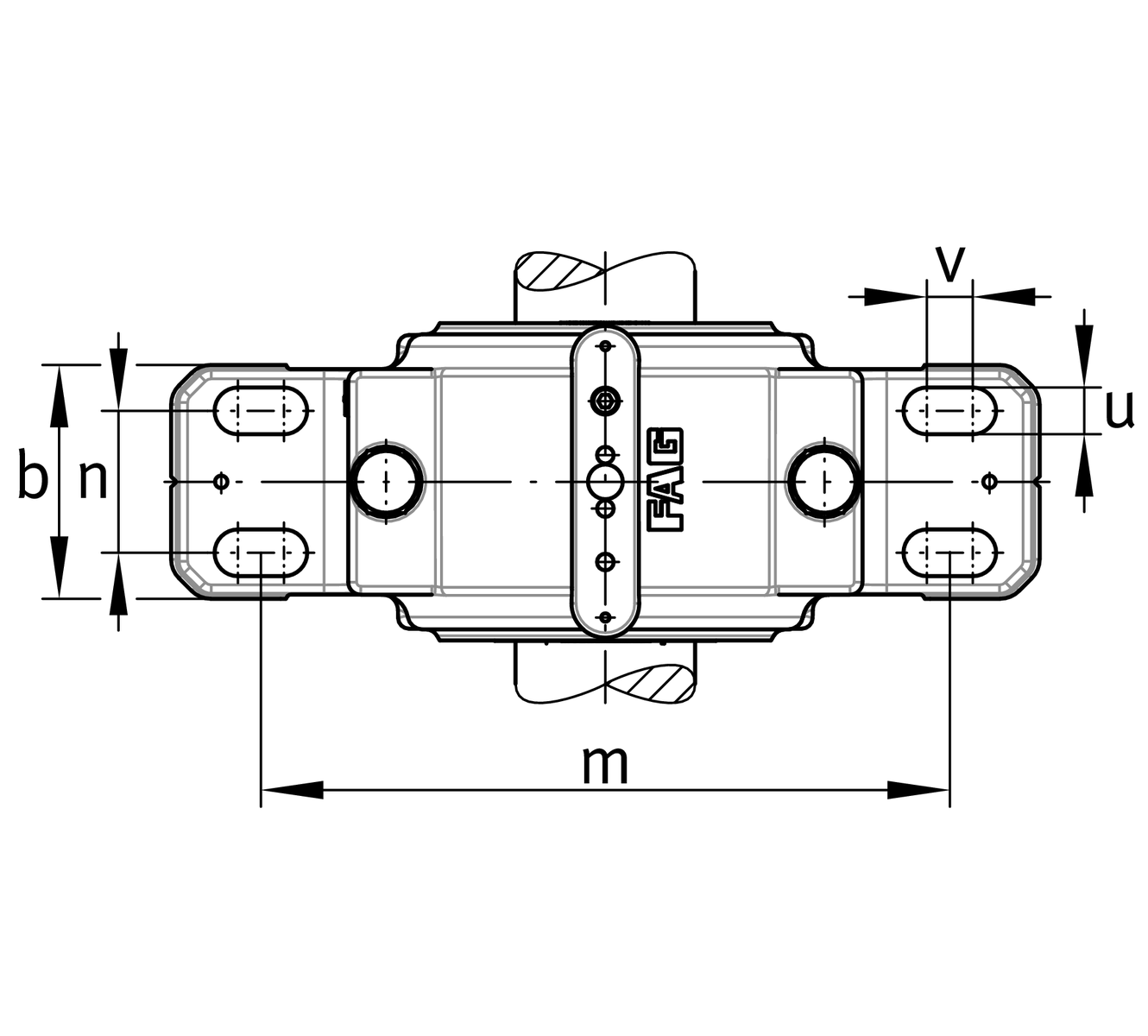

Dimensions
b
120.65 mm
Width foot
c
53.975 mm
Height foot
D
215 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
133.35 mm
Distance shaft axis
k
67.8 mm
Width bearing seat
m
352.425 mm
Distance mounting holes
n
69.85 mm
Width bore spacing
s
19.05 mm
screw size
v
22.225 mm
Width oblong hole
v
15.875 mm
Length oblong hole
