FAG INA Schaeffler
FAG
SAFD522X0315U
Plummer block housings, split, SAF SAFD522X0315U
Thêm vào yêu cầu báo giá

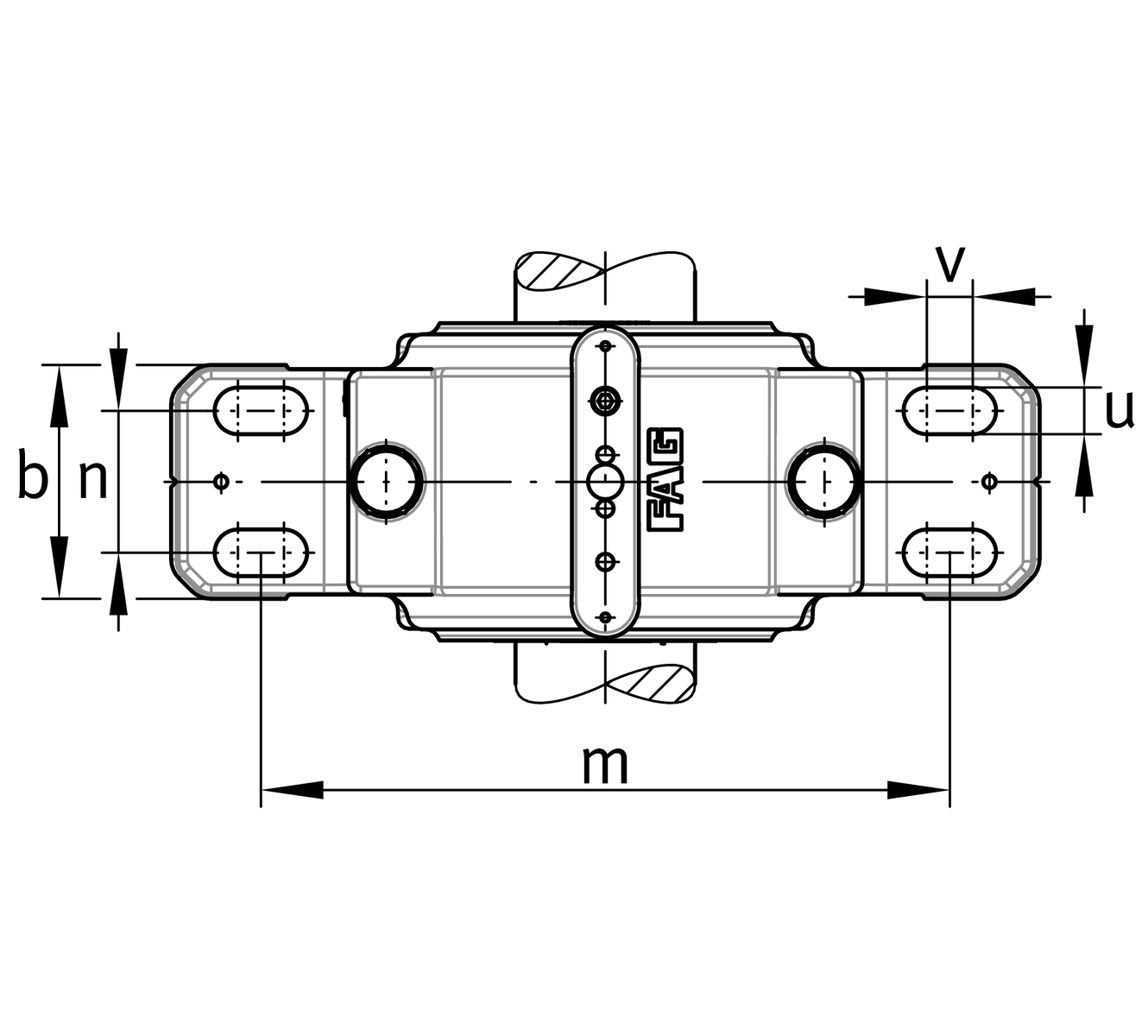

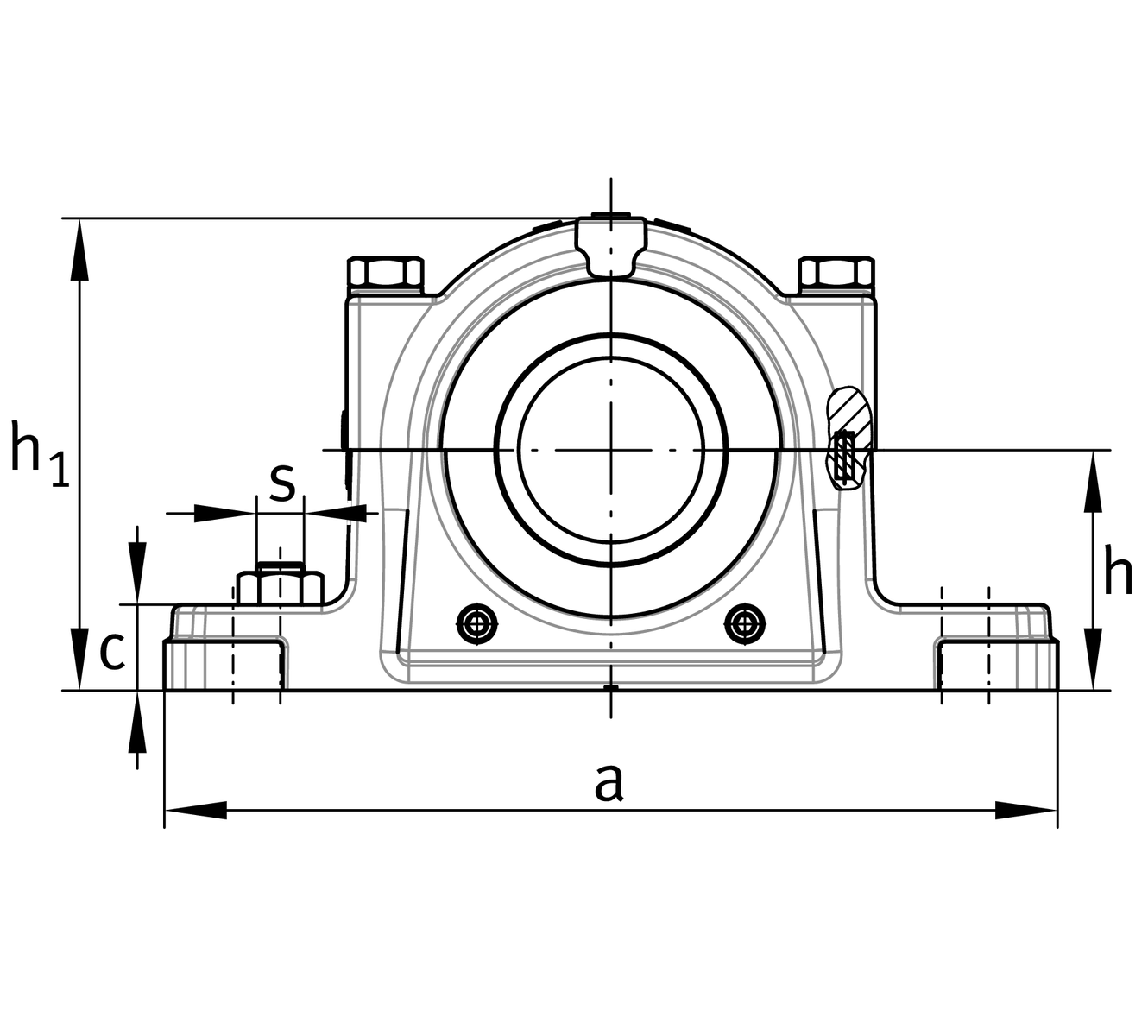

Main Dimensions & Performance Data
d1
100.012 mm
Shaft diameter inch
d1
100.0125 mm
Shaft diameter
a
419.1 mm
Length foot
h1
244.475 mm
Total height
g
163.512 mm
Width housing body
≈m
33.19 kg
Weight

Dimensions
b
120.65 mm
Width foot
c
50.8 mm
Height foot
D
200 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
125.412 mm
Distance shaft axis
k
62.8 mm
Width bearing seat
m
344.487 mm
Distance mounting holes
n
69.85 mm
Width bore spacing
s
19.05 mm
screw size
v
22.225 mm
Width oblong hole
v
23.813 mm
Length oblong hole
