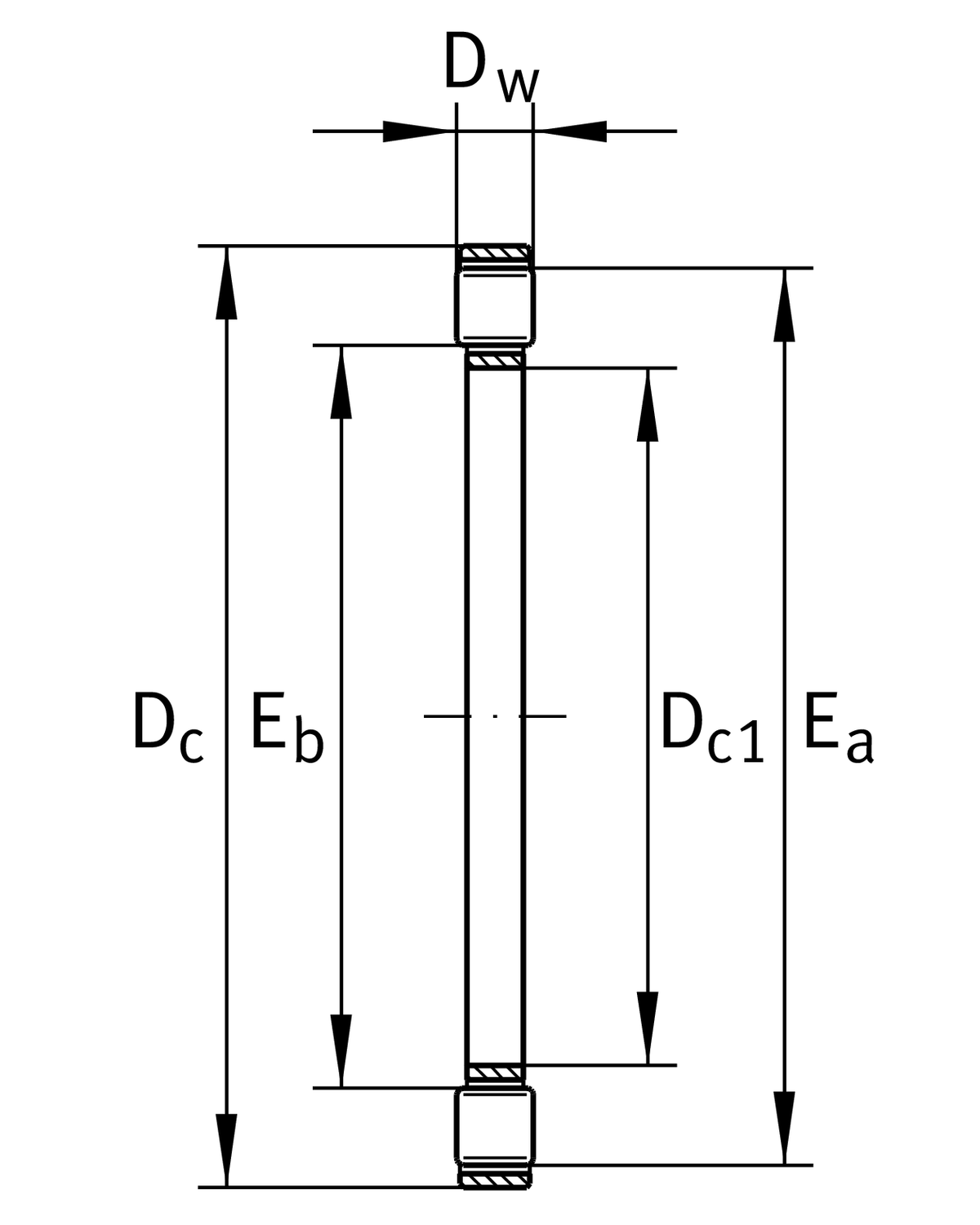

Main Dimensions & Performance Data
| Dc1 | 30 mm | Bore diameter cage |
| Dc | 47 mm | Cage outer diameter |
| Dw | 5 mm | Rolling element diameter |
| Ca | 35,500 N | Basic dynamic load rating, axial |
| C0a | 86,000 N | Basic static load rating, axial |
| Cua | 8,200 N | Fatigue load limit, axial |
| nG | 7,500 1/min | Limiting speed |
| nϑr | 3,050 1/min | Reference speed |
| ≈m | 15.6 g | Weight |

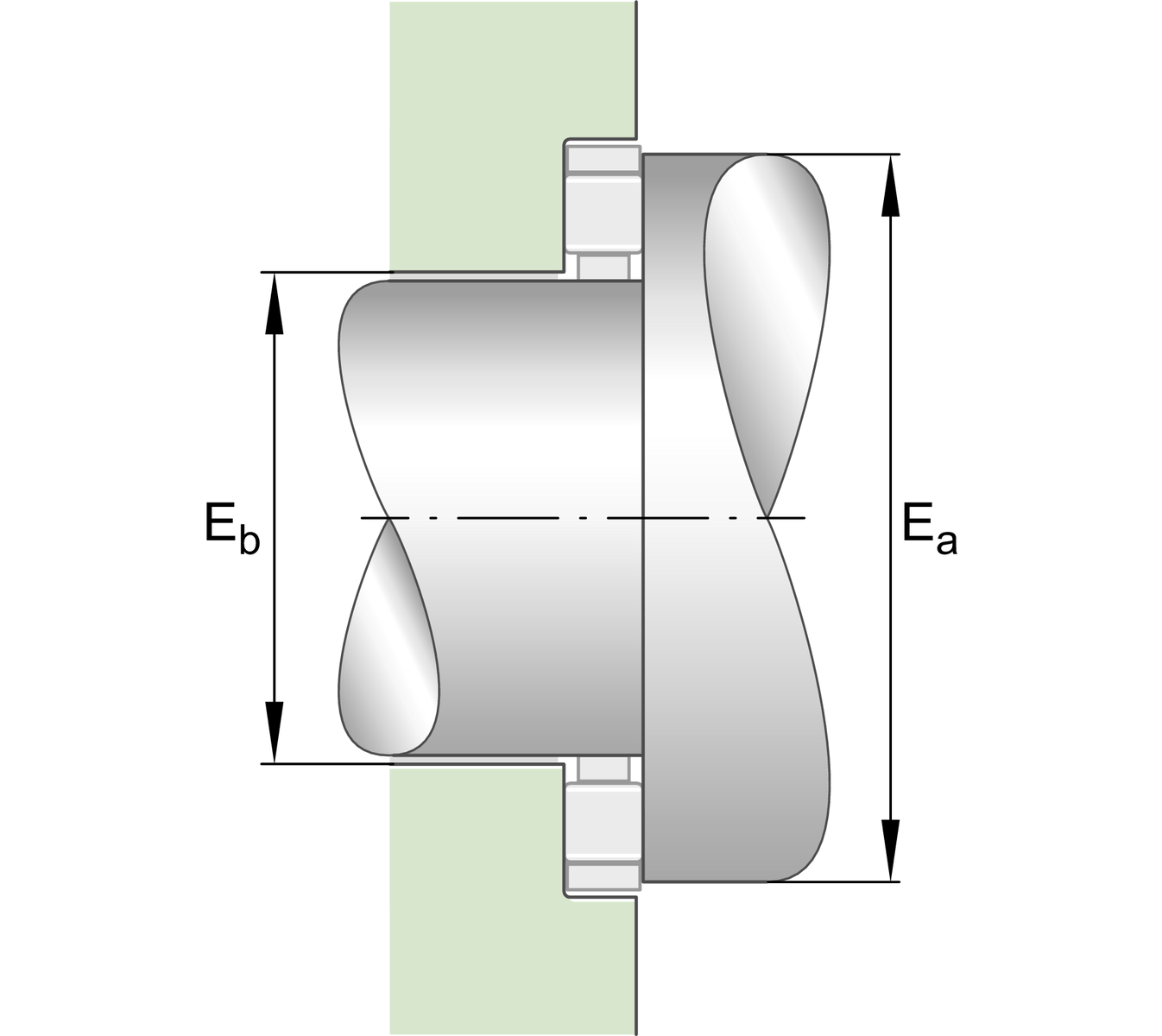

Mounting dimensions
| Eb | 31 mm | Raceway dimension |
| Ea | 46 mm | Raceway dimension |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Your current product variant
| Cage | TV | Plastic Cage made from PA66 |
