FAG INA Schaeffler
INA
DRS2068
Seal carrier Assy DRS2068
Thêm vào yêu cầu báo giá

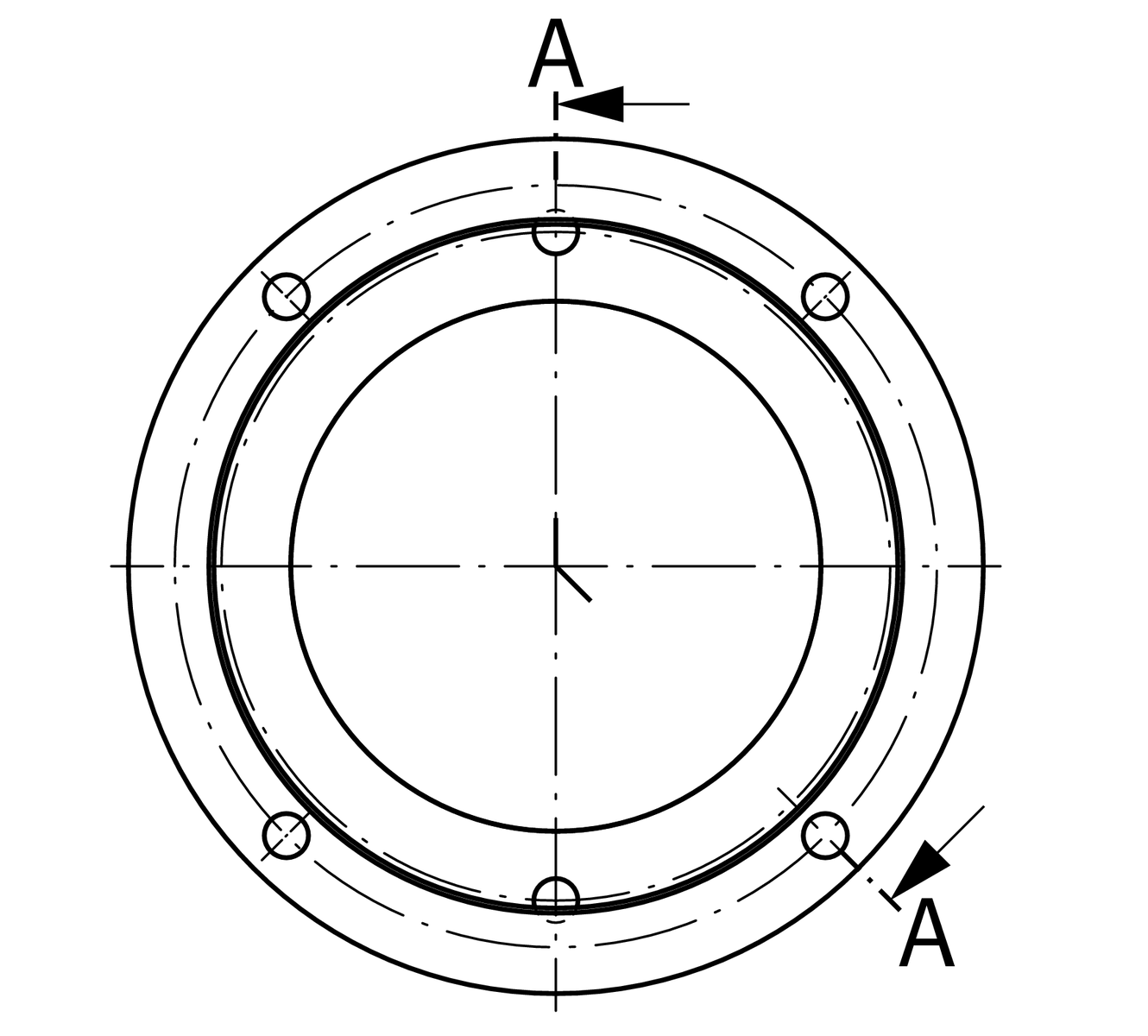

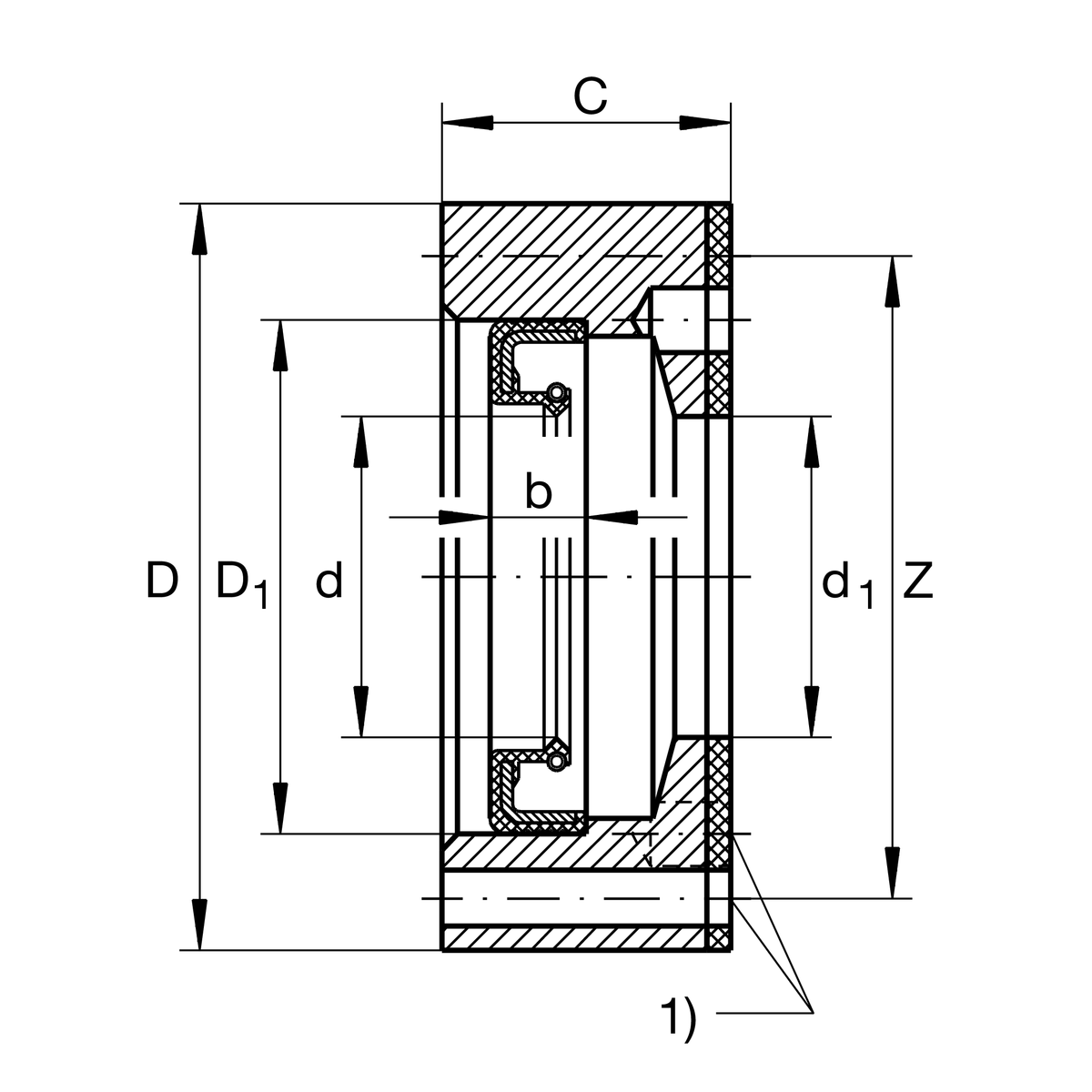

Main Dimensions & Performance Data
d1
42 mm
Inner diameter centering
D
68 mm
Outside diameter
C
17 mm
Width wave carrier
≈m
0.206 kg
Weight

Dimensions
Z
60.4 mm
Pitch circle diameter (holes)
d
42 mm
Inner diameter centering seal lip
D1
55 mm
Outside diameter seal
b
8 mm
Width seal
M3X25
Screw size
1)
4
Number of screws

Additional information
ZARF2068(-L)-TV
Bearing designation
