SAF534X0515U
Plummer block housings, split, SAF SAF534X0515U
Thêm vào yêu cầu báo giá

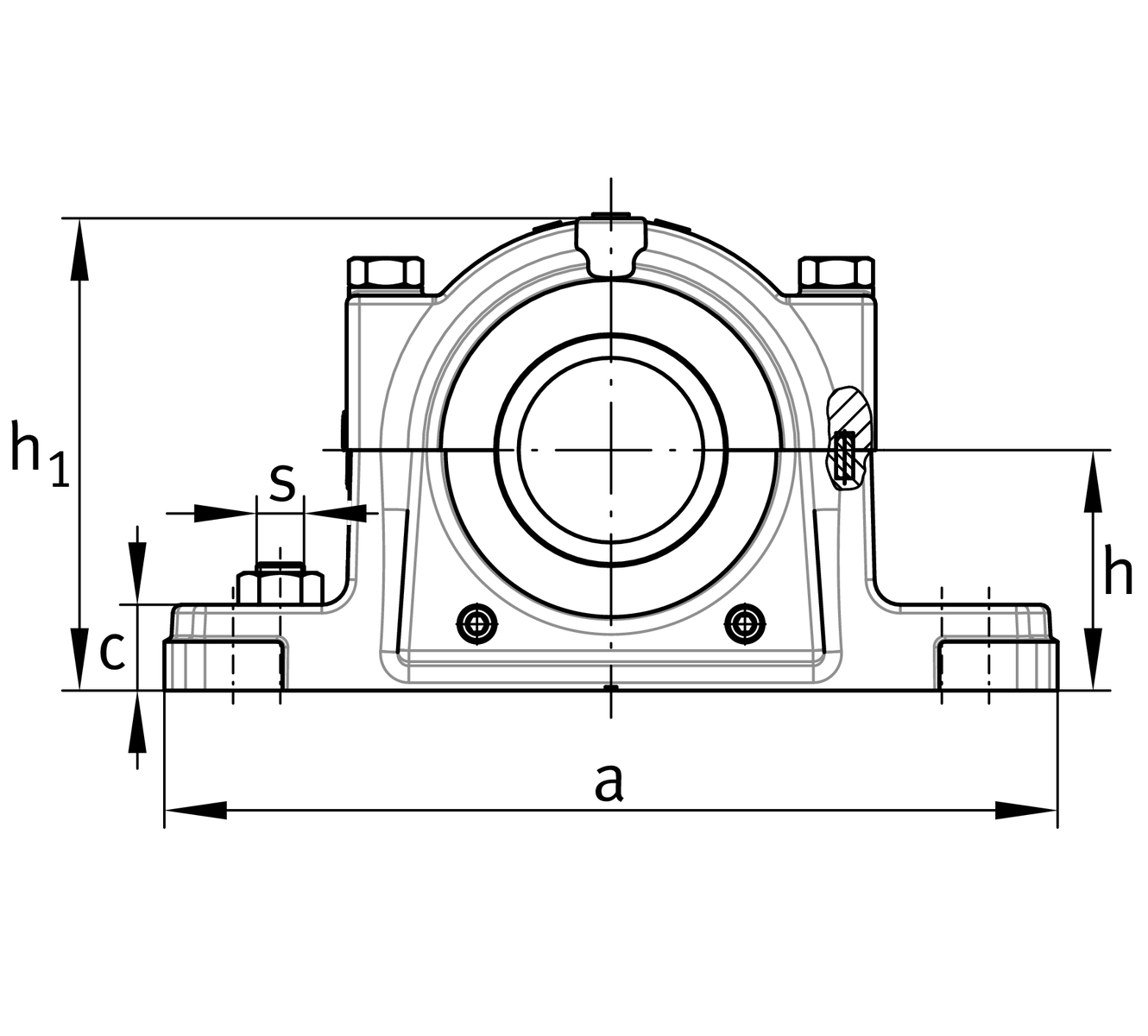

Main Dimensions & Performance Data
d1
150.813 mm
Shaft diameter inch
d1
150.8125 mm
Shaft diameter
a
628.65 mm
Length foot
h1
360.362 mm
Total height
g
234.95 mm
Width housing body
≈m
89.5 kg
Weight

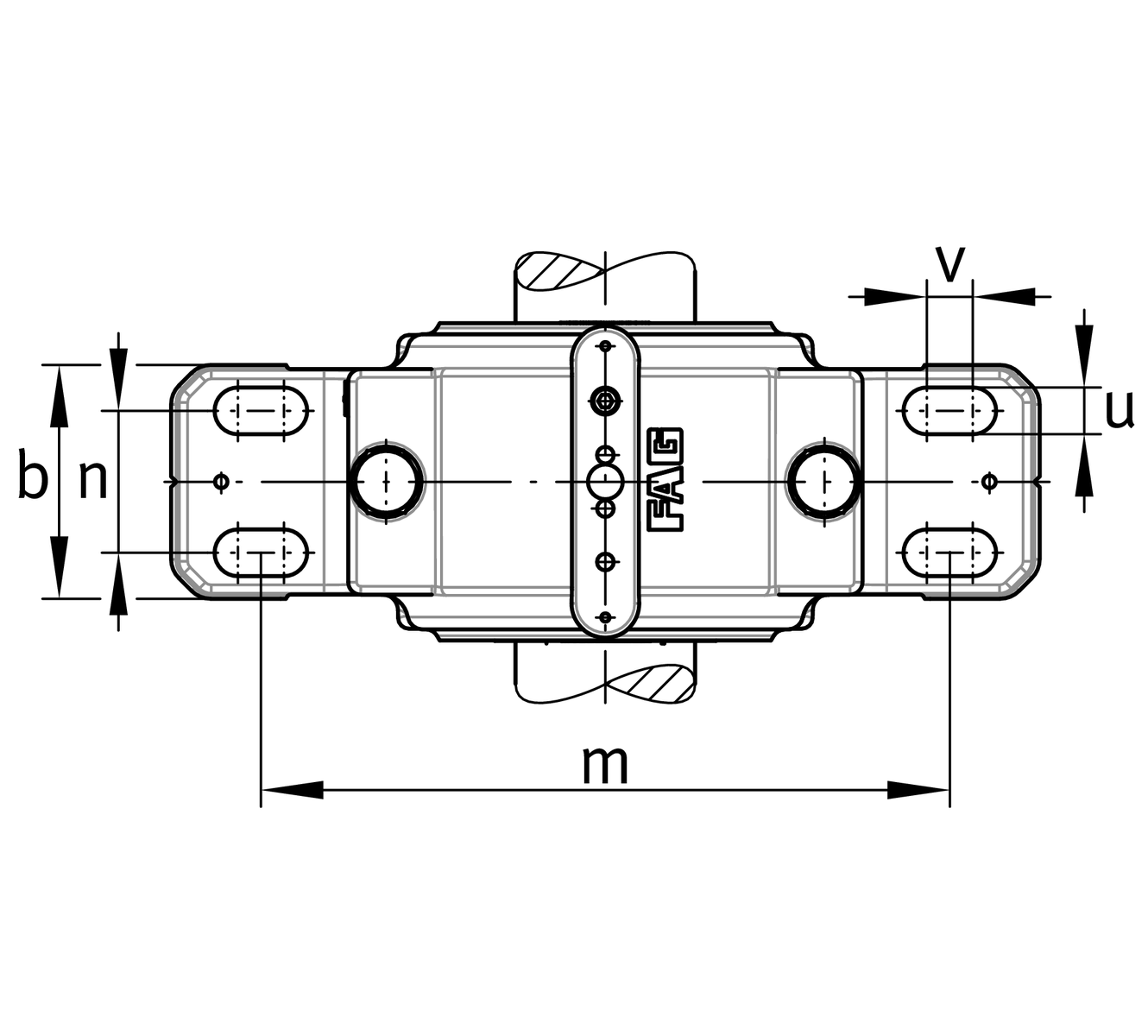

Dimensions
b
171.45 mm
Width foot
c
69.85 mm
Height foot
D
310 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
179.387 mm
Distance shaft axis
k
95.8 mm
Width bearing seat
m
520.7 mm
Distance mounting holes
n
107.95 mm
Width bore spacing
s
25.4 mm
screw size
v
28.575 mm
Width oblong hole
v
28.575 mm
Length oblong hole
