SAF532X0507U
Plummer block housings, split, SAF SAF532X0507U
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d1
138.112 mm
Shaft diameter inch
d1
138.1125 mm
Shaft diameter
a
558.8 mm
Length foot
h1
338.137 mm
Total height
g
215.9 mm
Width housing body
≈m
49.1 kg
Weight

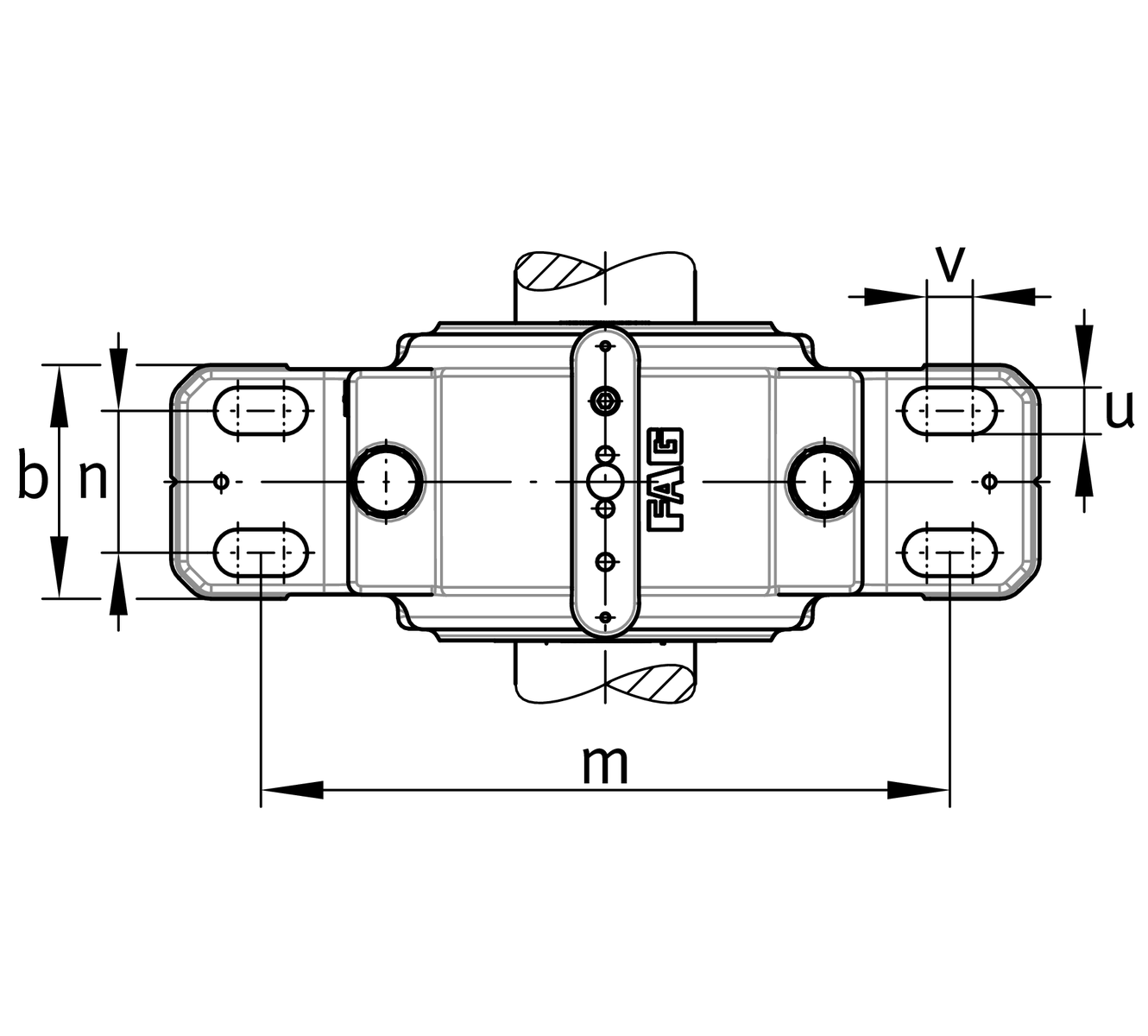

Dimensions
b
158.75 mm
Width foot
c
66.675 mm
Height foot
D
290 mm
Outside diameter bearing
e
5.08 mm
Offset Bearing centre
h
169.862 mm
Distance shaft axis
k
89.8 mm
Width bearing seat
m
465.137 mm
Distance mounting holes
n
95.25 mm
Width bore spacing
s
25.4 mm
screw size
v
28.575 mm
Width oblong hole
v
23.813 mm
Length oblong hole
