FLCTE40-XL-FA107-OSE
Flanged housing unit FLCTE40-XL-FA107-OSE
Thêm vào yêu cầu báo giá

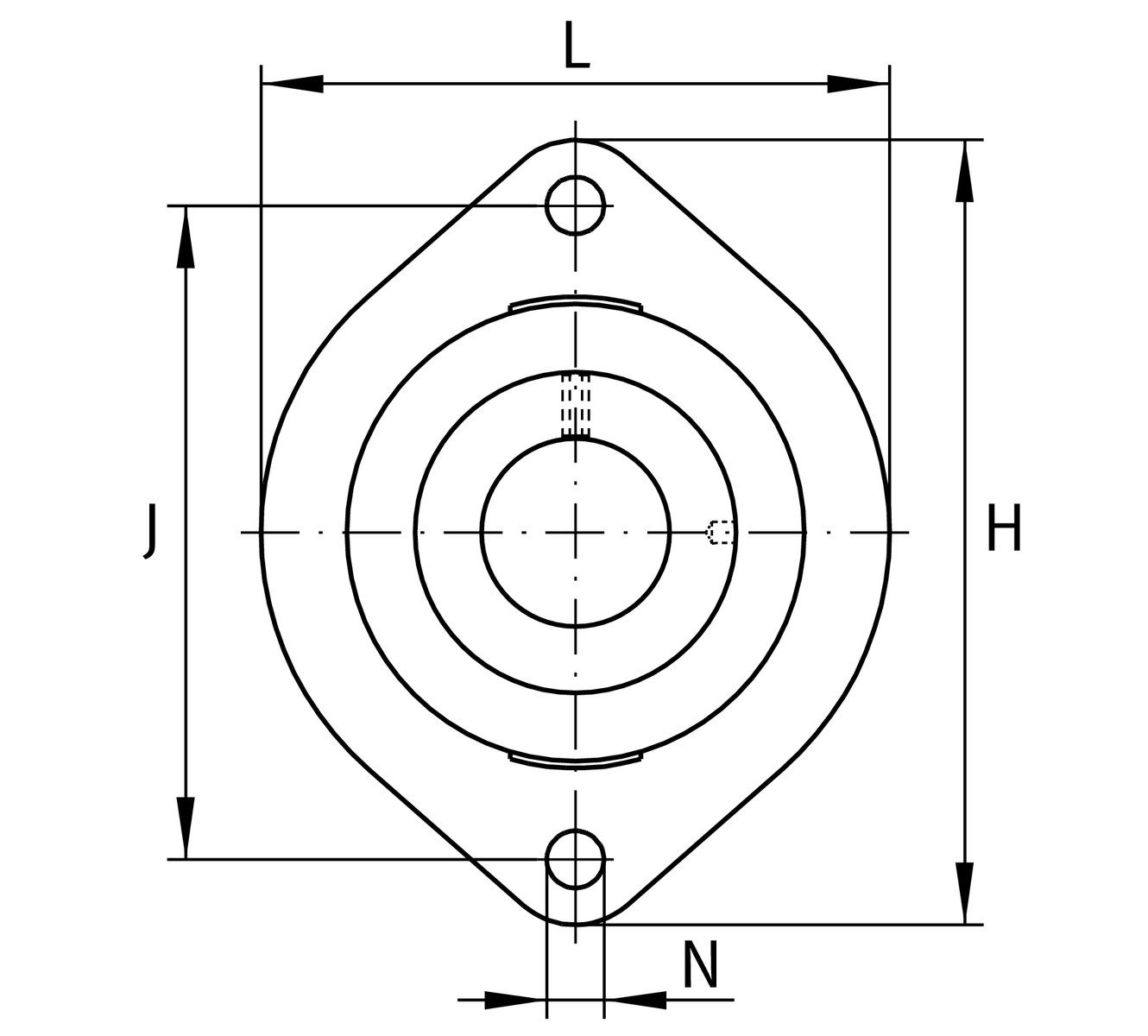

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
31.7 mm
Total height unit
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
≈m
1.15 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore
n
2
Number of screwing holes

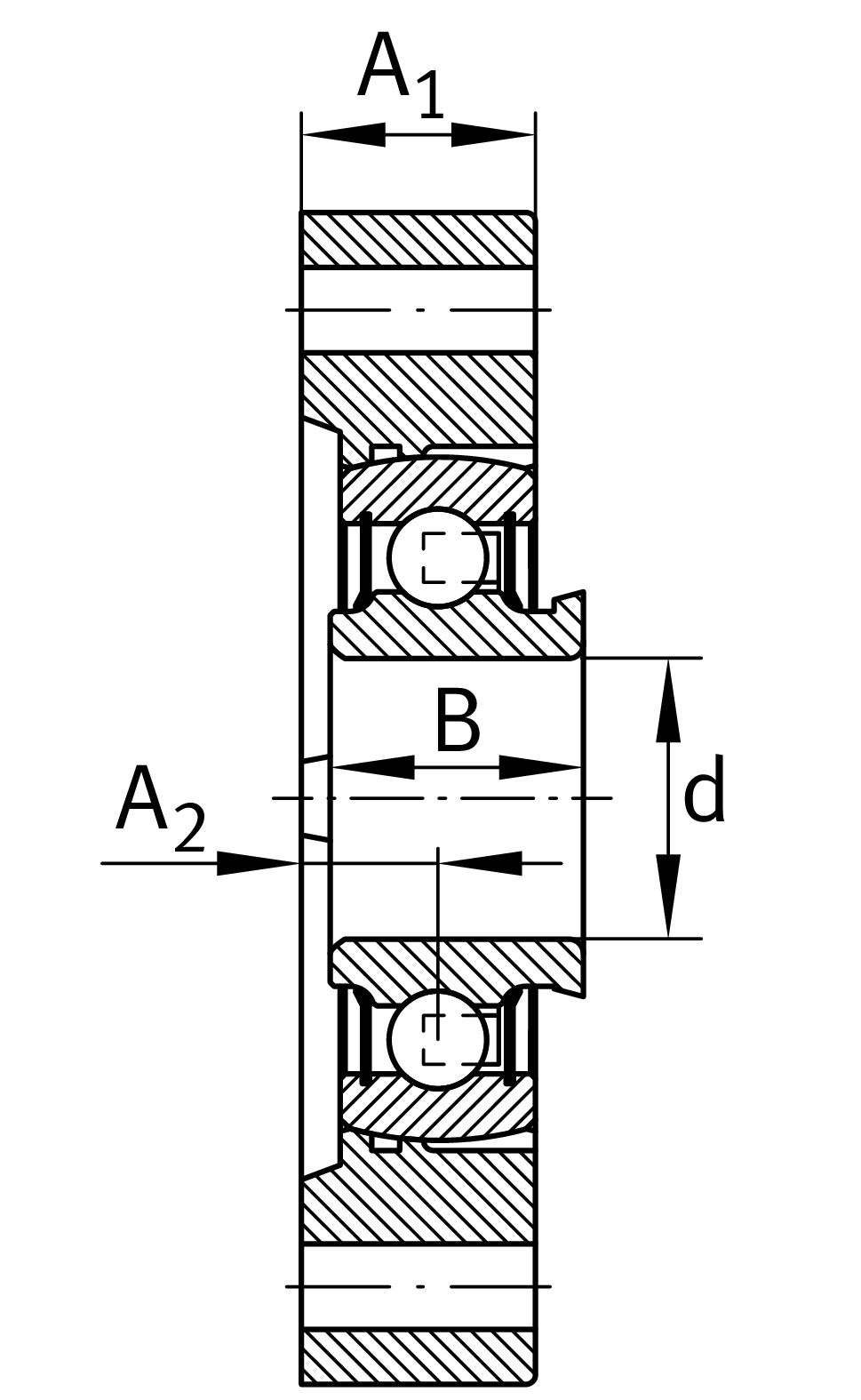

Dimensions
A1
26 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B
30.2 mm
Width

Additional information
1
Number of housings
GEHLCTE08-GG
Housing
RAE40-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
Without locking deviceOSEBearing without locking element
