FLCTE40-XL
Flanged housing unit FLCTE40-XL
Thêm vào yêu cầu báo giá

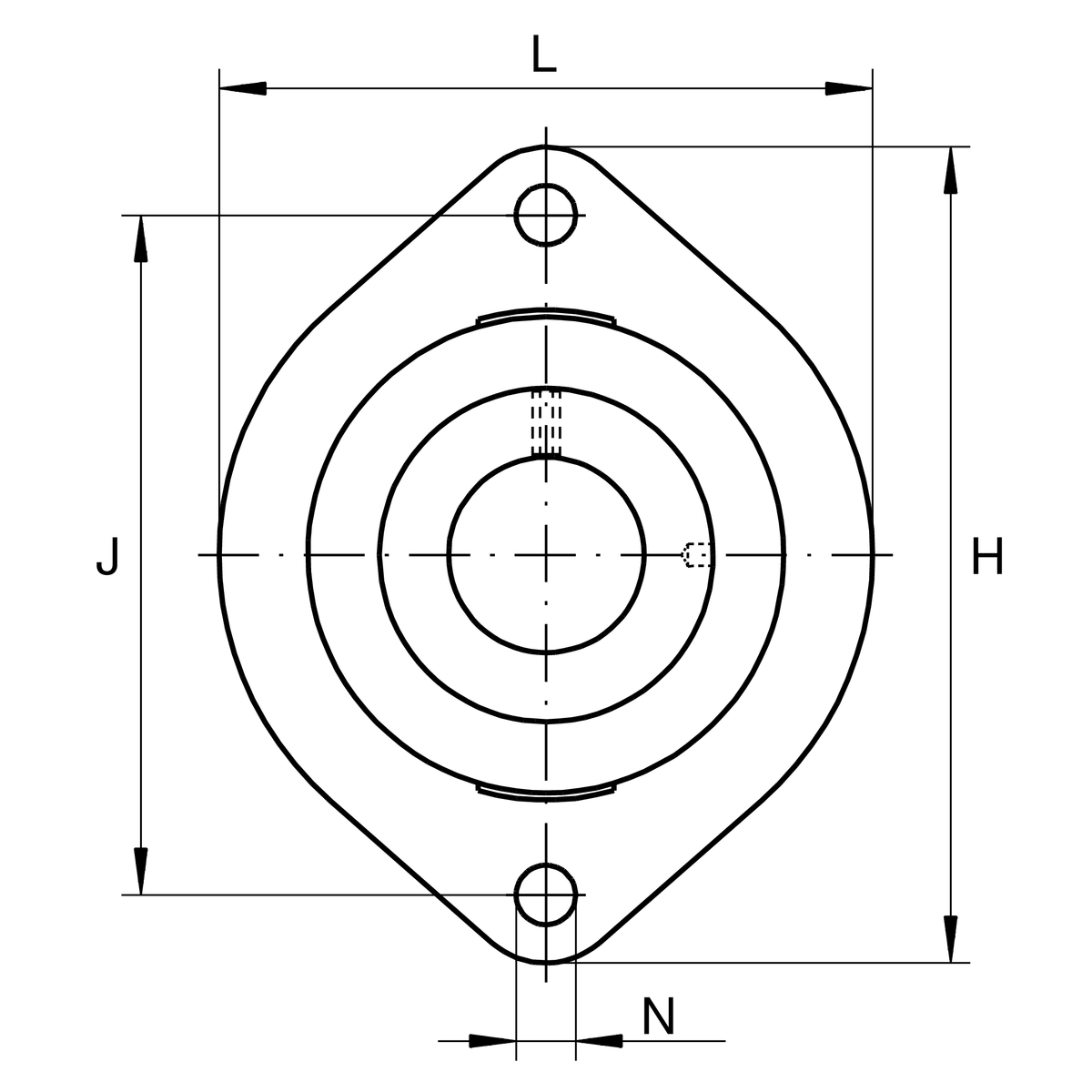

Main Dimensions & Performance Data
d
40 mm
Bore diameter
L
100 mm
Flange width
H
150 mm
Height flange
U
46.3 mm
Total height unit
Cr
32,500 N
Basic dynamic load rating, radial
C0r
19,800 N
Basic static load rating, radial
Cur
1,030 N
Fatigue load limit, radial
≈m
1.42 kg
Weight

Mounting dimensions
J
119 mm
Distance fixing bore
N
14 mm
Fixing bore
W
5 mm
Width across flats
n
2
Number of screwing holes

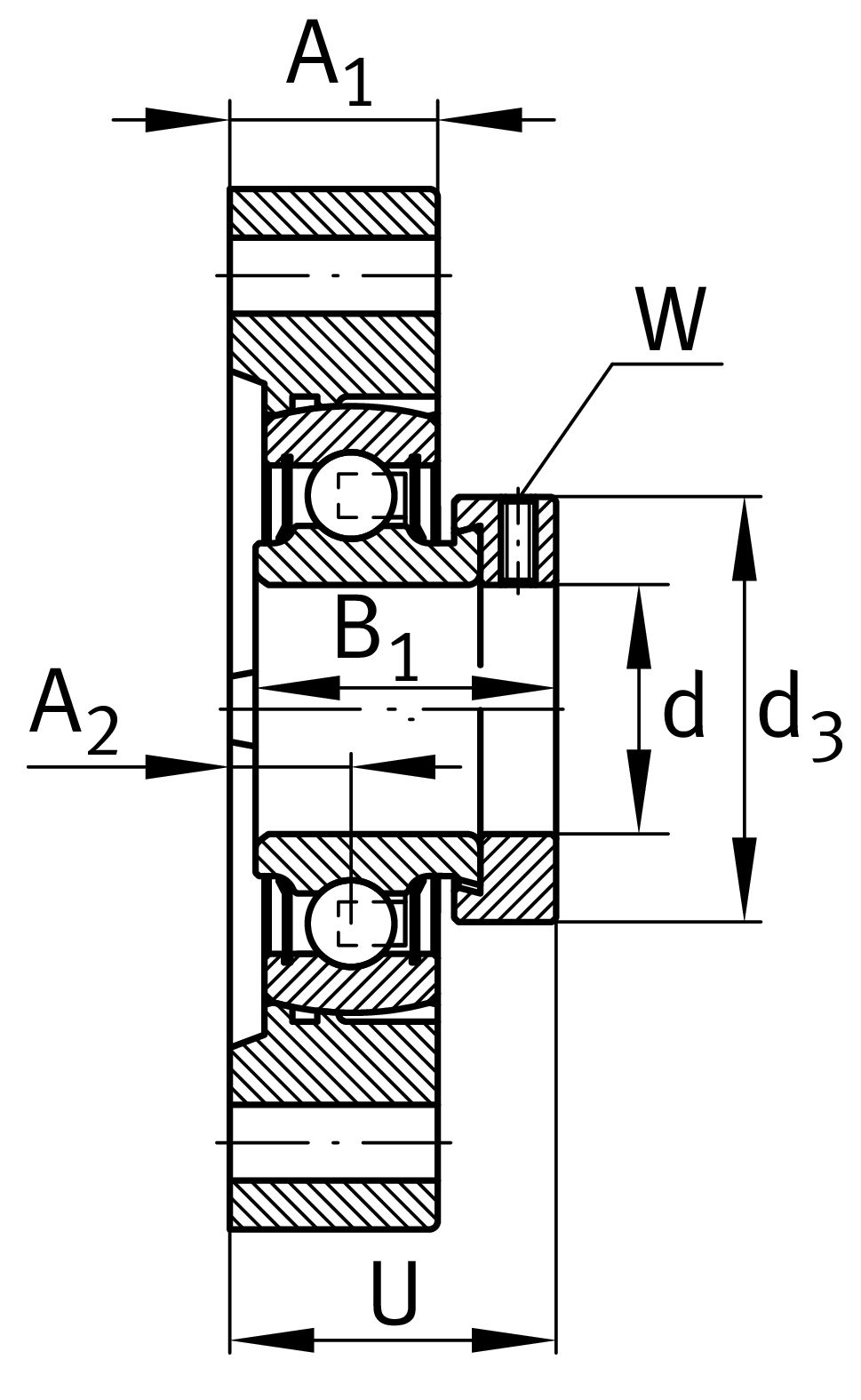

Dimensions
A1
26 mm
Thickness of flange
A2
13.5 mm
Distance raceway
B1
43.8 mm
Locking collar total width
d3
58 mm
Outside diameter eccentric locking collar

Additional information
GEHLCTE08-GG
Housing
RAE40-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
