Main Dimensions & Performance Data
| d | 35 mm | Bore diameter |
| DSP | 72 mm | Outside diameter |
| B | 37.7 mm | Width |
| Cur | 700 N | Fatigue load limit, radial |
| Cr | 25,500 N | Basic dynamic load rating, radial |
| C0r | 15,300 N | Basic static load rating, radial |
| ≈m | 0.42 kg | Weight |

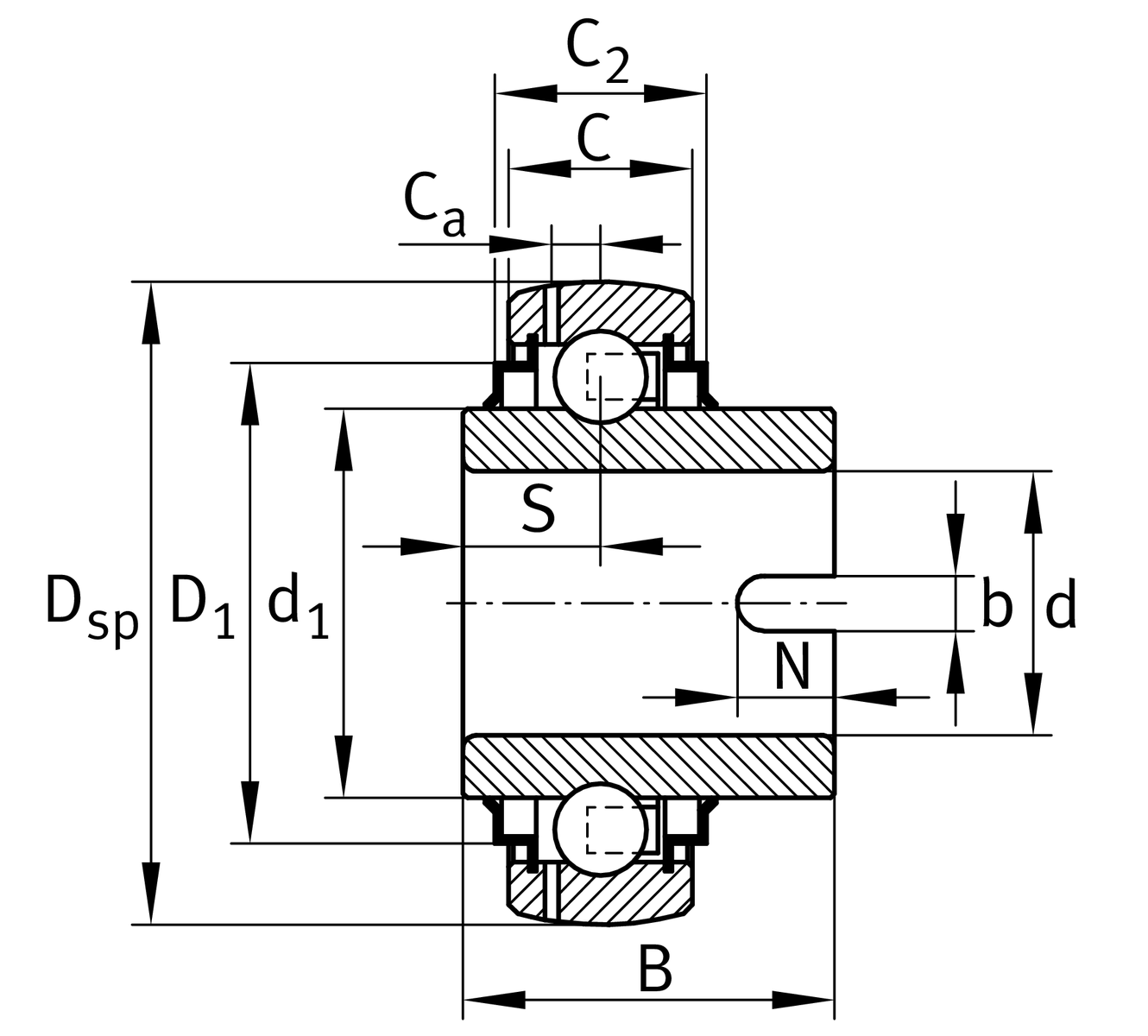

Dimensions
| C | 19 mm | Width, outer ring |
| C2 | 22.5 mm | Sealing total width |
| S | 15.7 mm | Distance raceway |
| d1 | 46.8 mm | Rib diameter inner ring |
| D1 | 60.3 mm | Outside diameter seal |
| Ca | 5.6 mm | Distance to lubrication hole |
| N | 8 mm | Hight retaining slot |
| b | 7 mm | Width retaining slot |
H11 | Width retaining slot clearance |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
