Main Dimensions & Performance Data
| d | 30 mm | Bore diameter |
| DSP | 62 mm | Outside diameter |
| B | 36.5 mm | Width |
| Cur | 520 N | Fatigue load limit, radial |
| Cr | 19,500 N | Basic dynamic load rating, radial |
| C0r | 11,300 N | Basic static load rating, radial |
| ≈m | 0.3 kg | Weight |

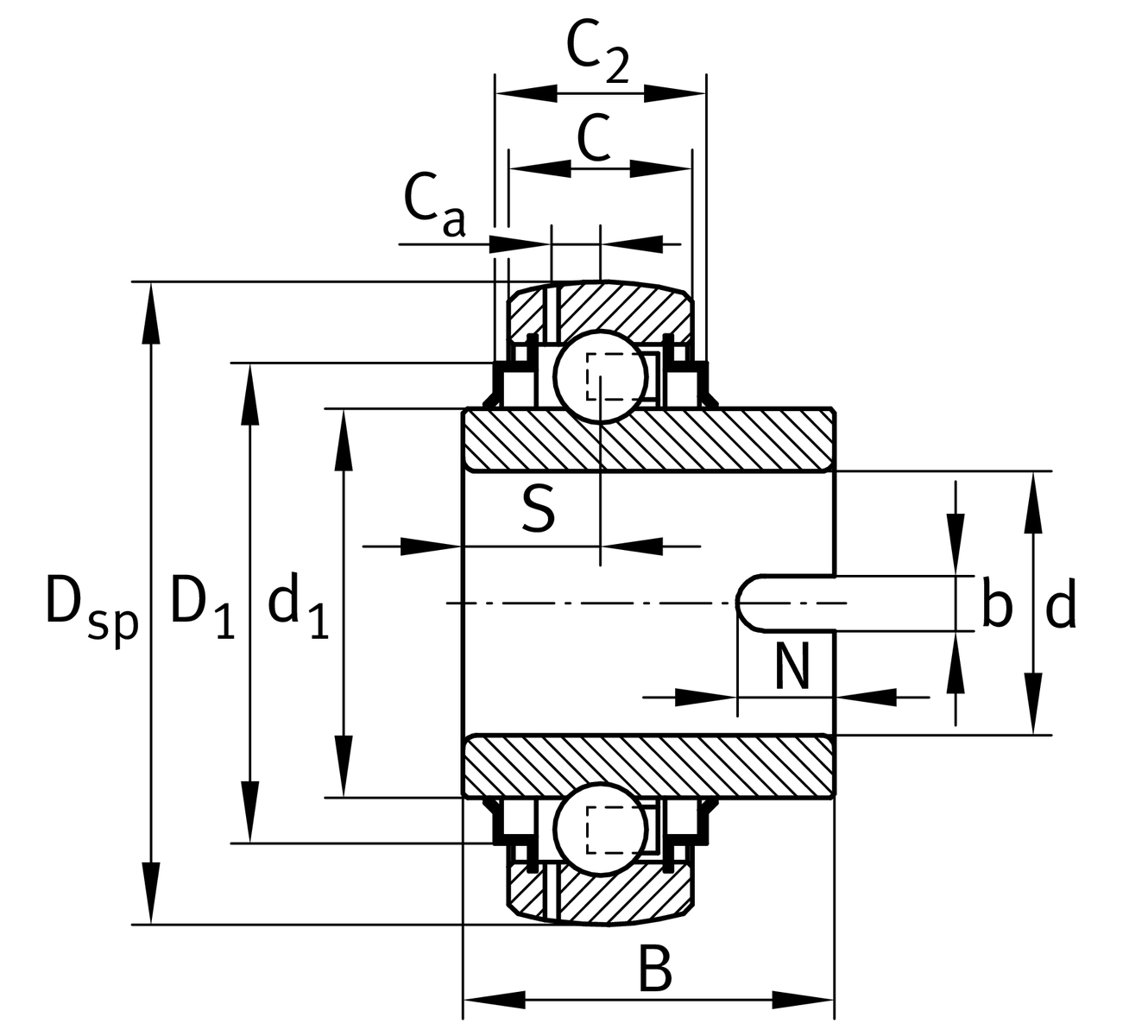

Dimensions
| C | 18 mm | Width, outer ring |
| C2 | 19.8 mm | Sealing total width |
| S | 14.5 mm | Distance raceway |
| d1 | 40.2 mm | Rib diameter inner ring |
| D1 | 52 mm | Outside diameter seal |
| Ca | 4.7 mm | Distance to lubrication hole |
| N | 8 mm | Hight retaining slot |
| b | 7 mm | Width retaining slot |
H11 | Width retaining slot clearance |
Calculation factors
| f0 | 13.8 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B |
