GLCTE35-TV-VA-FD
Flanged housing unit GLCTE35-TV-VA-FD
Thêm vào yêu cầu báo giá

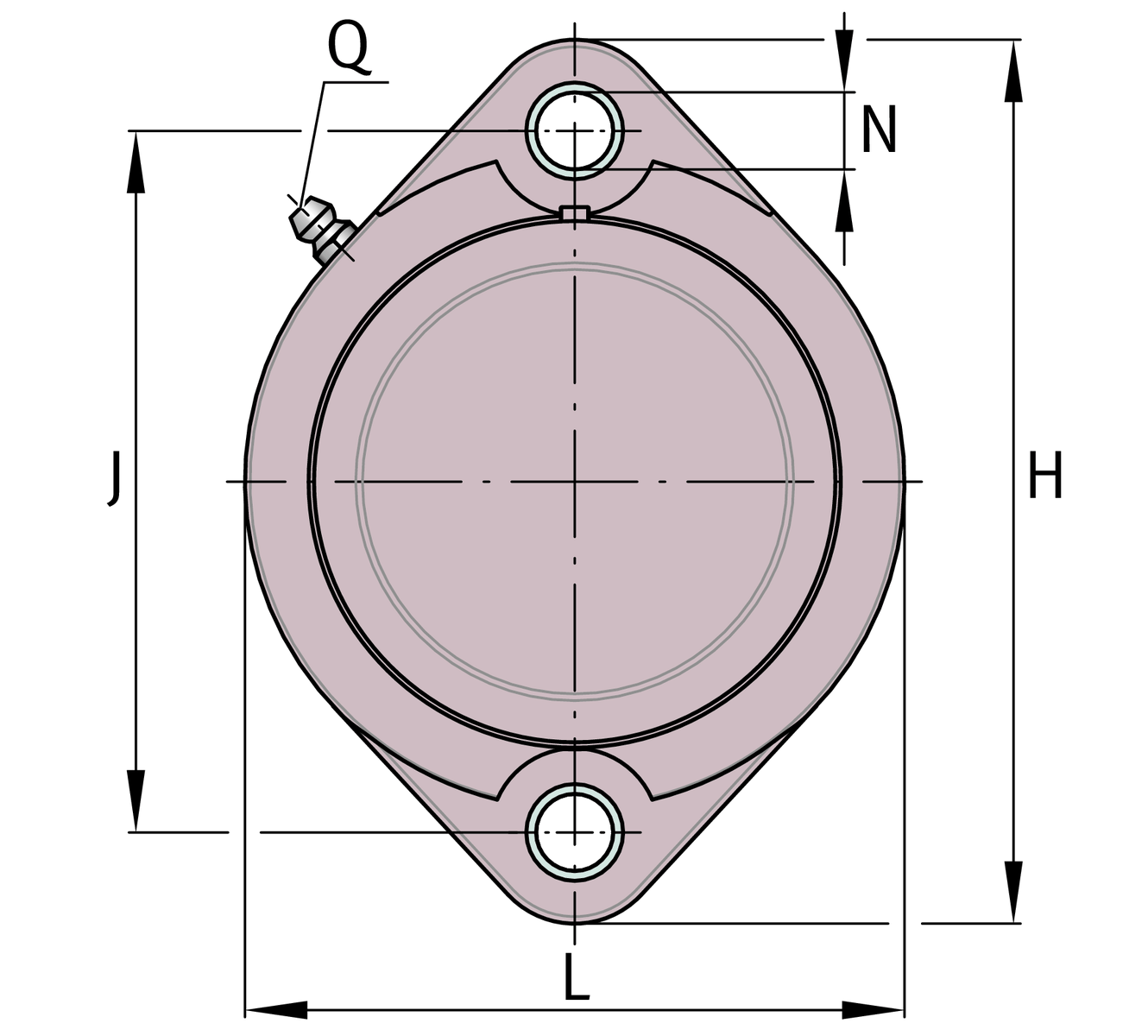

Main Dimensions & Performance Data
d
35 mm
Bore diameter
L
94 mm
Flange width
H
126 mm
Height flange
U
42.8 mm
Total height unit
Cr
25,670 N
Basic dynamic load rating, radial
C0r
15,300 N
Basic static load rating, radial
Cur
655 N
Fatigue load limit, radial
C0r G
12,600 N
Load carrying capacity (housing)
≈m
0.66 kg
Weight

Mounting dimensions
J
100 mm
Distance fixing bore
N
11 mm
Fixing bore
W
3 mm
Width across flats

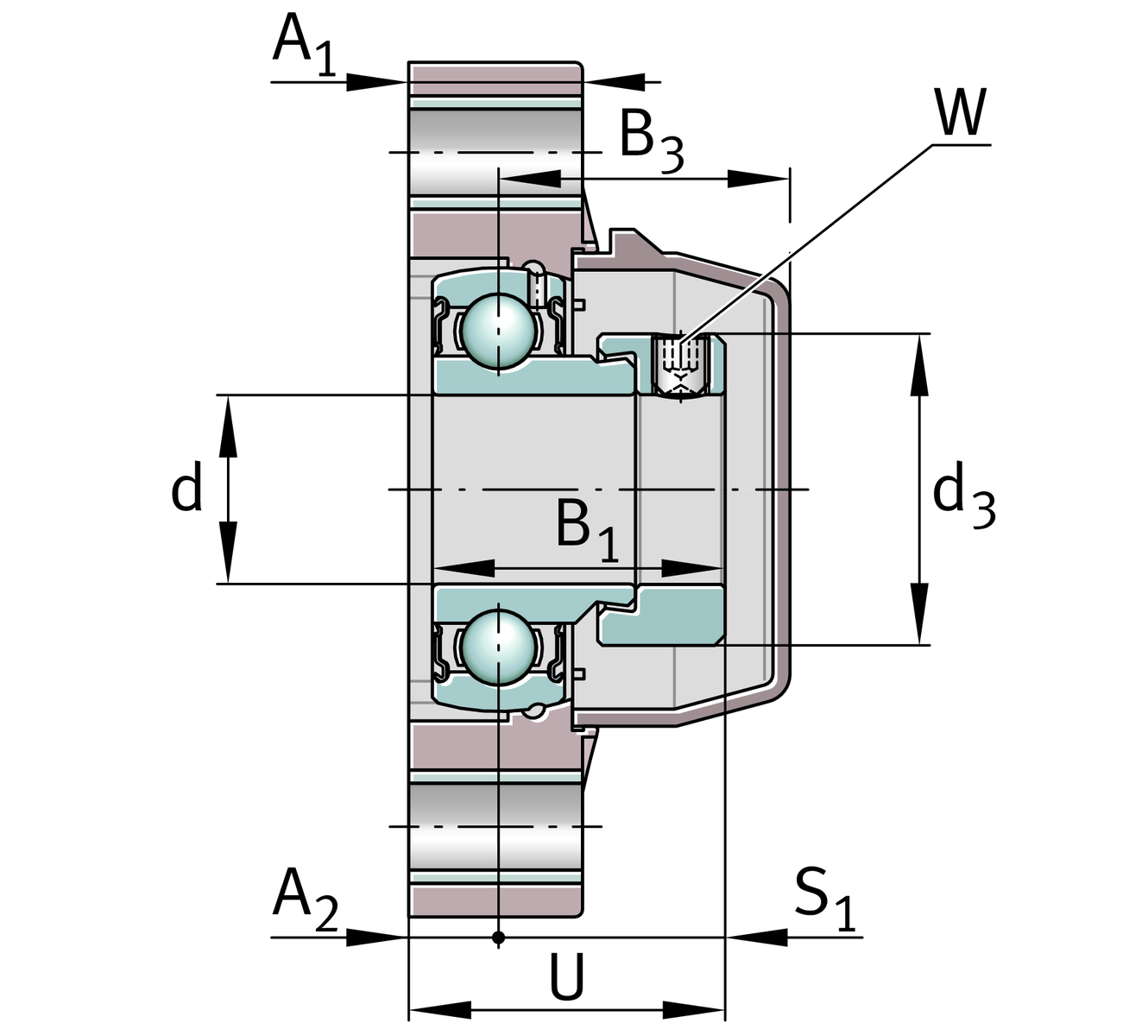

Dimensions
A1
22.5 mm
Thickness of flange
A2
12.4 mm
Distance raceway
B1
38.9 mm
Locking collar total width
B3
41.1 mm
Distance housing centre to cap end
S1
30.4 mm
Distance raceway to locking collar
Q
1/4"-28 UNF
Connection thread for lubrication
d3
55.6 mm
Outside diameter eccentric locking collar

Additional information
GEH.GLCTE07-TV-WHT
Housing
GE35-KRR-B-FA107-VA-FD
Bearing designation
KASK07-S-G-WHT
Protecting cap

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialTV-FDPlastic for food industry
