Flanged housing unit GLCTE35-TV-FA125.5

Thêm vào yêu cầu báo giá

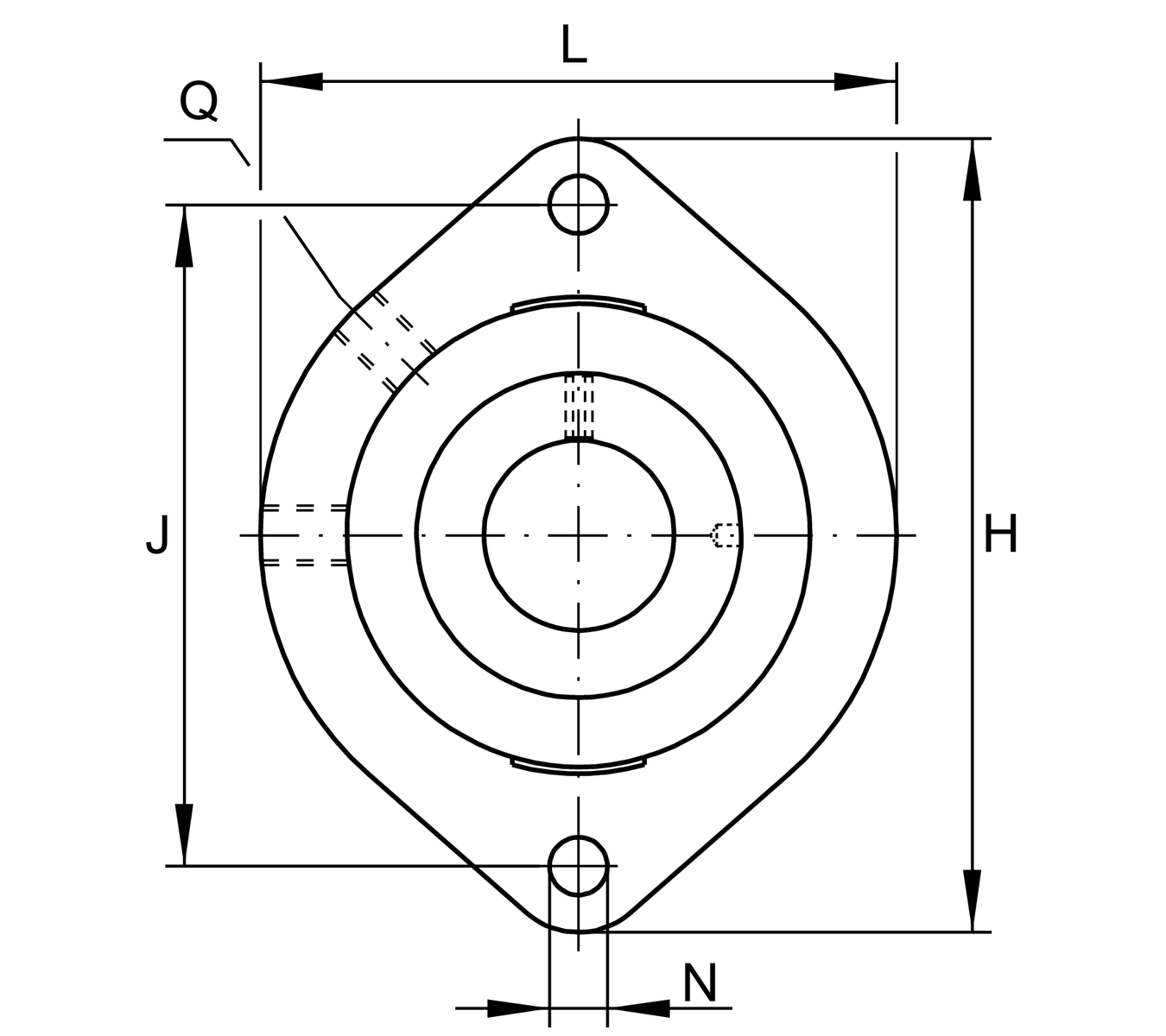

Main Dimensions & Performance Data

d	35 mm	Bore diameter
L	94 mm	Flange width
H	126 mm	Height flange
U	42 mm	Total height unit
C_r	22,500 N	Basic dynamic load rating, radial
C_0r	12,500 N	Basic static load rating, radial
C_{0r G}	12,600 N	Load carrying capacity (housing)
≈m	0.66 kg	Weight

Mounting dimensions

J	100 mm	Distance fixing bore
N	11.5 mm	Fixing bore
n	2	Number of screwing holes

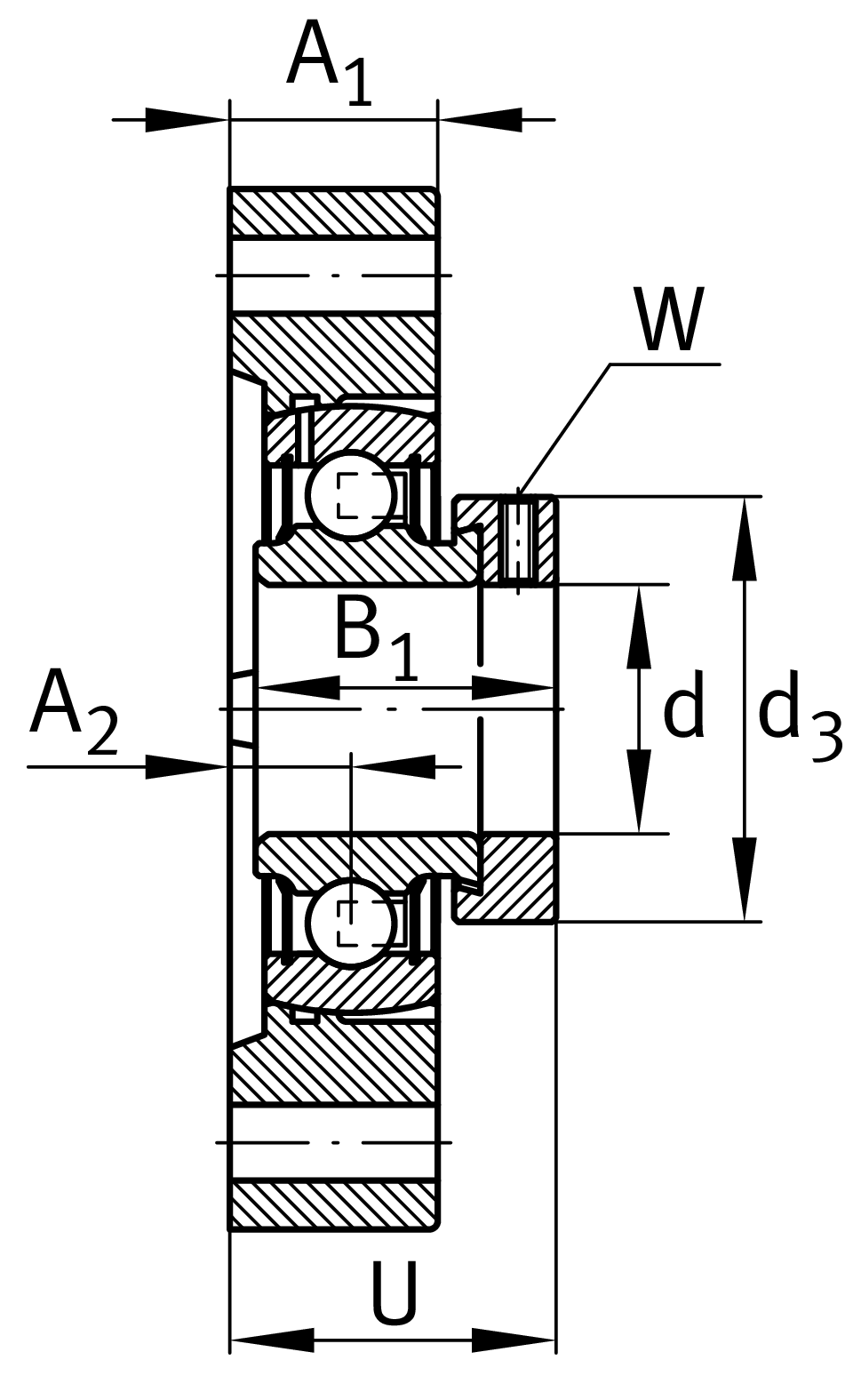

Dimensions

A₁	22.5 mm	Thickness of flange
A₂	12.5 mm	Distance raceway
B₁	39 mm	Locking collar total width
Q	1/4-28 UNF	Connection thread for lubrication
d₃	55 mm	Outside diameter eccentric locking collar

Additional information

	1	Number of housings
	GLCTE07-TV	Housing
	GRAE35-NPP-B-FA107/125.5	Bearing designation
	KASK07-S-G	Protecting cap

Temperature range

T_min	-35 °C	Operating temperature min.
T_max	100 °C	Operating temperature max.

Your current product variant

Material	TV	Plastic
Manufacturing instruction	FA125.5	Bearing with Corrotect coating
