GRRY30-VA
Flanged housing unit GRRY30-VA
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
30 mm
Bore diameter
H2
112.7 mm
Height flange
H
112.7 mm
Height flange
U
24.7 mm
Total height unit
Cr
18,700 N
Basic dynamic load rating, radial
C0r
10,700 N
Basic static load rating, radial
Cur
530 N
Fatigue load limit, radial
C0r G
5,000 N
Load carrying capacity (housing)
≈m
0.6 kg
Weight

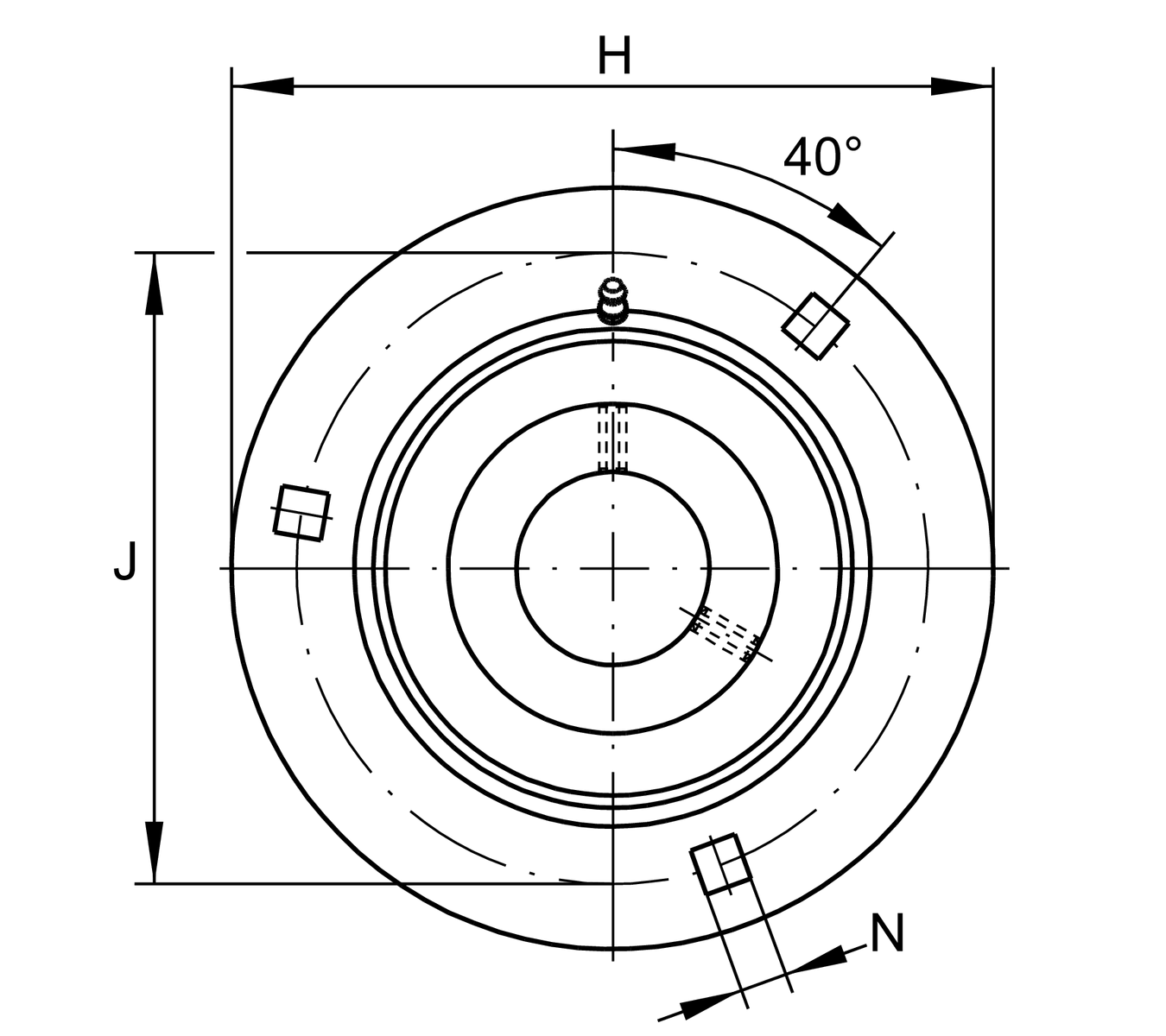

Mounting dimensions
J
90.5 mm
Pitch circle diameter (holes)
N
10.5 mm
Fixing square
n
3
Number of screwing holes

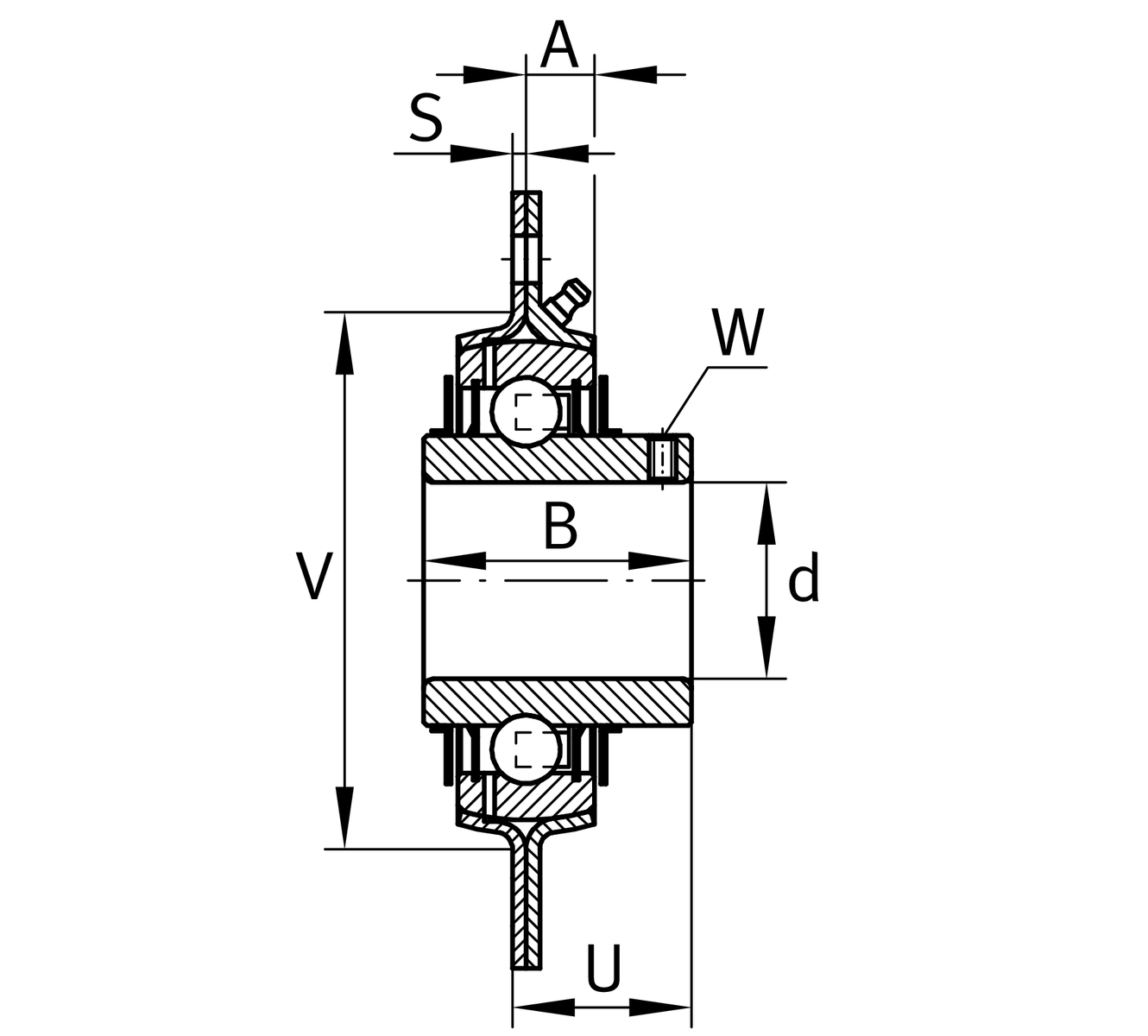

Dimensions
A
9 mm
Height housing
B
38.1 mm
Width
S
2.5 mm
Thickness of flange
V
71 mm
Shoulder diameter housing
d3
44 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
1
Number of housings 2
FLAN62-MSB-VA
Housing
GYE30-KRR-B-VA
Bearing designation

Temperature range
Tmin
-35 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialVAStainless Steel
Special materialVACorrosion-resistant VA design
