GRRY25-VA
Flanged housing unit GRRY25-VA
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
H2
95 mm
Height flange
H
95 mm
Height flange
U
21.7 mm
Total height unit
Cr
13,400 N
Basic dynamic load rating, radial
C0r
7,500 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
C0r G
3,650 N
Load carrying capacity (housing)
≈m
0.37 kg
Weight

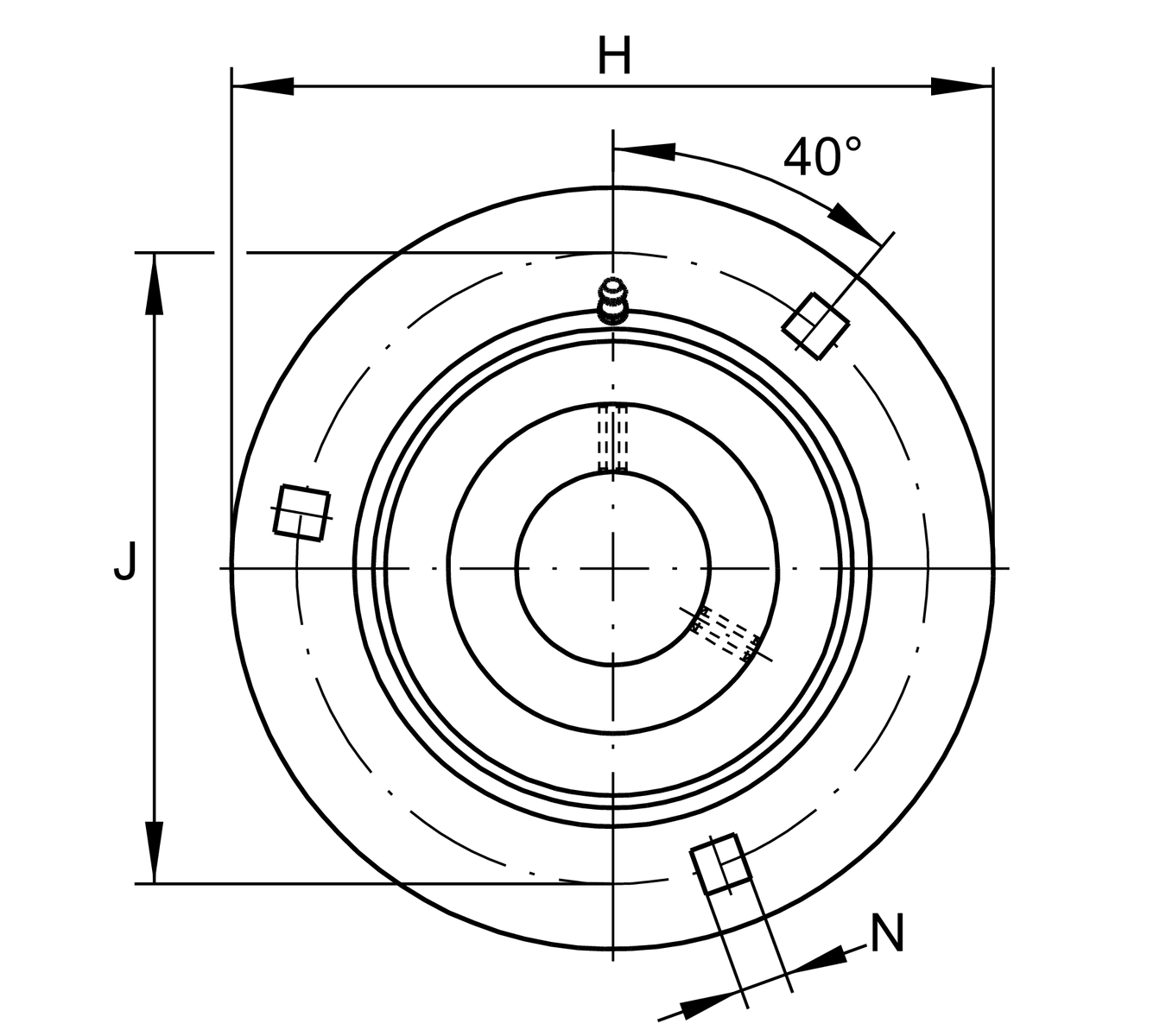

Mounting dimensions
J
76 mm
Pitch circle diameter (holes)
N
8.7 mm
Fixing square
n
3
Number of screwing holes

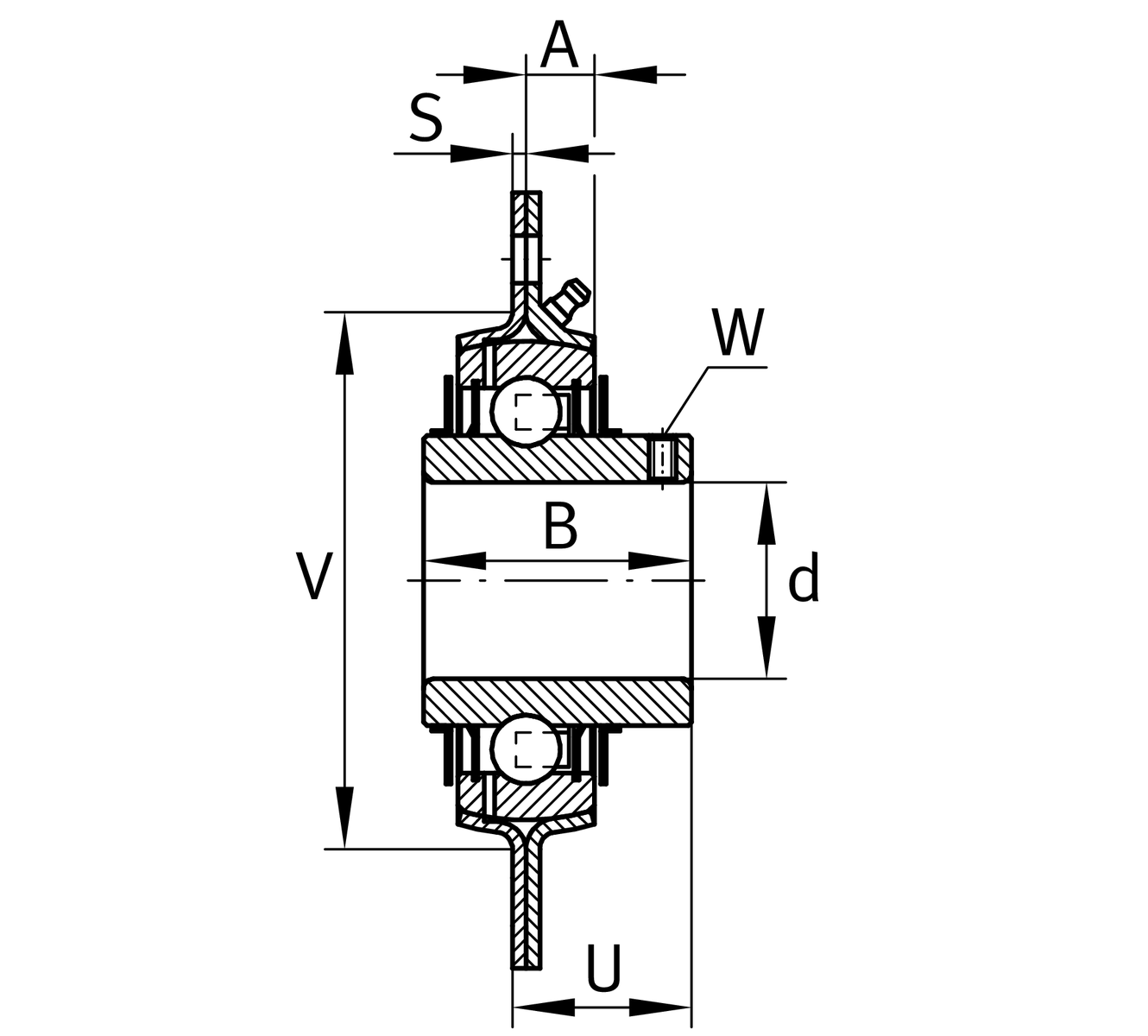

Dimensions
A
8.7 mm
Height housing
B
34.1 mm
Width
S
2 mm
Thickness of flange
V
60 mm
Shoulder diameter housing
d3
44 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
1
Number of housings 2
FLAN52-MSB-VA
Housing
GYE25-KRR-B-VA
Bearing designation

Temperature range
Tmin
-35 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialVAStainless Steel
Special materialVACorrosion-resistant VA design
