FAG INA Schaeffler
INA
TCJT30-XL-N
Flanged housing unit TCJT30-XL-N
Thêm vào yêu cầu báo giá

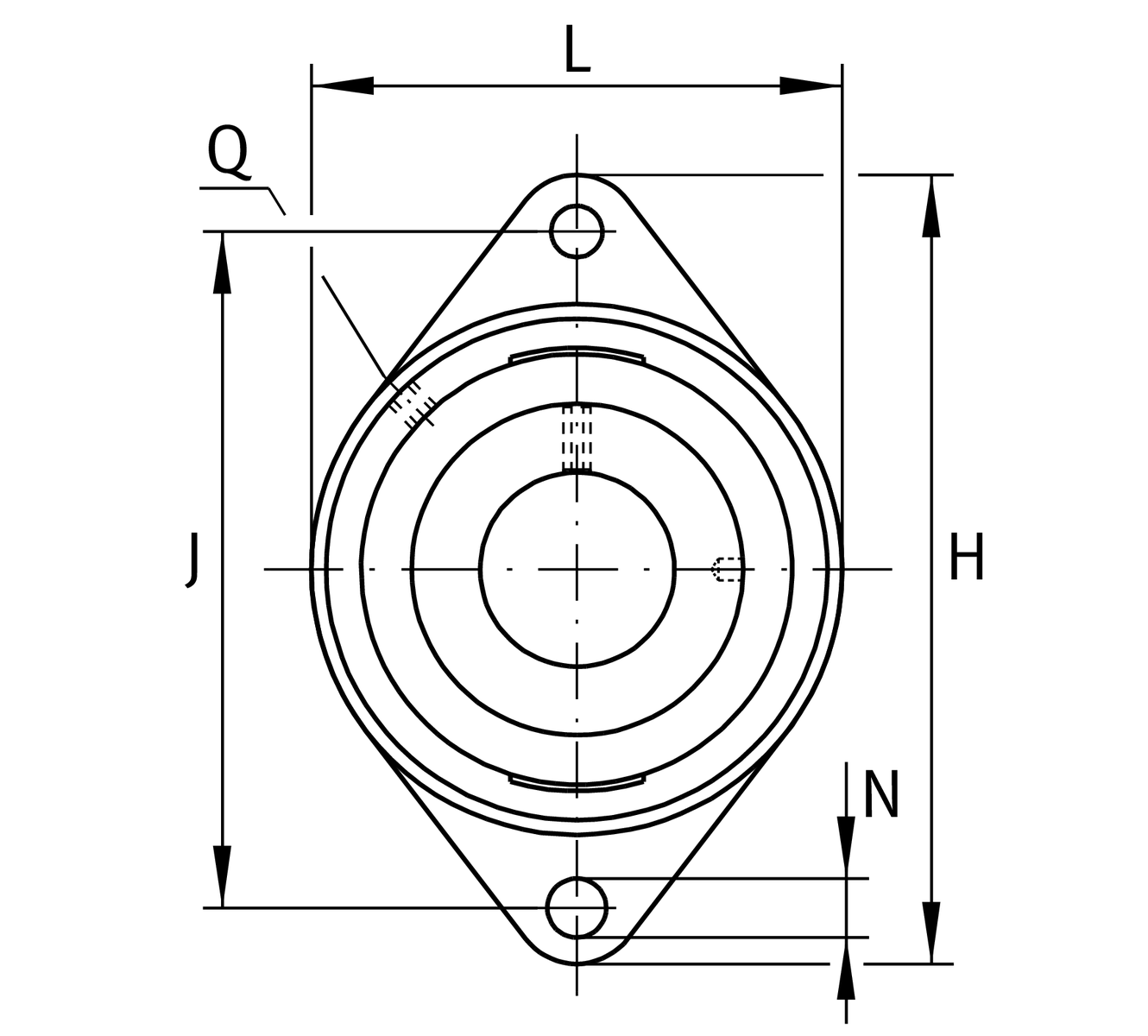

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
80 mm
Flange width
H
142 mm
Height flange
U
50.2 mm
Total height unit
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
590 N
Fatigue load limit, radial
≈m
0.9 kg
Weight

Mounting dimensions
J
116.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
2
Number of screwing holes
W
4 mm
Width of flats

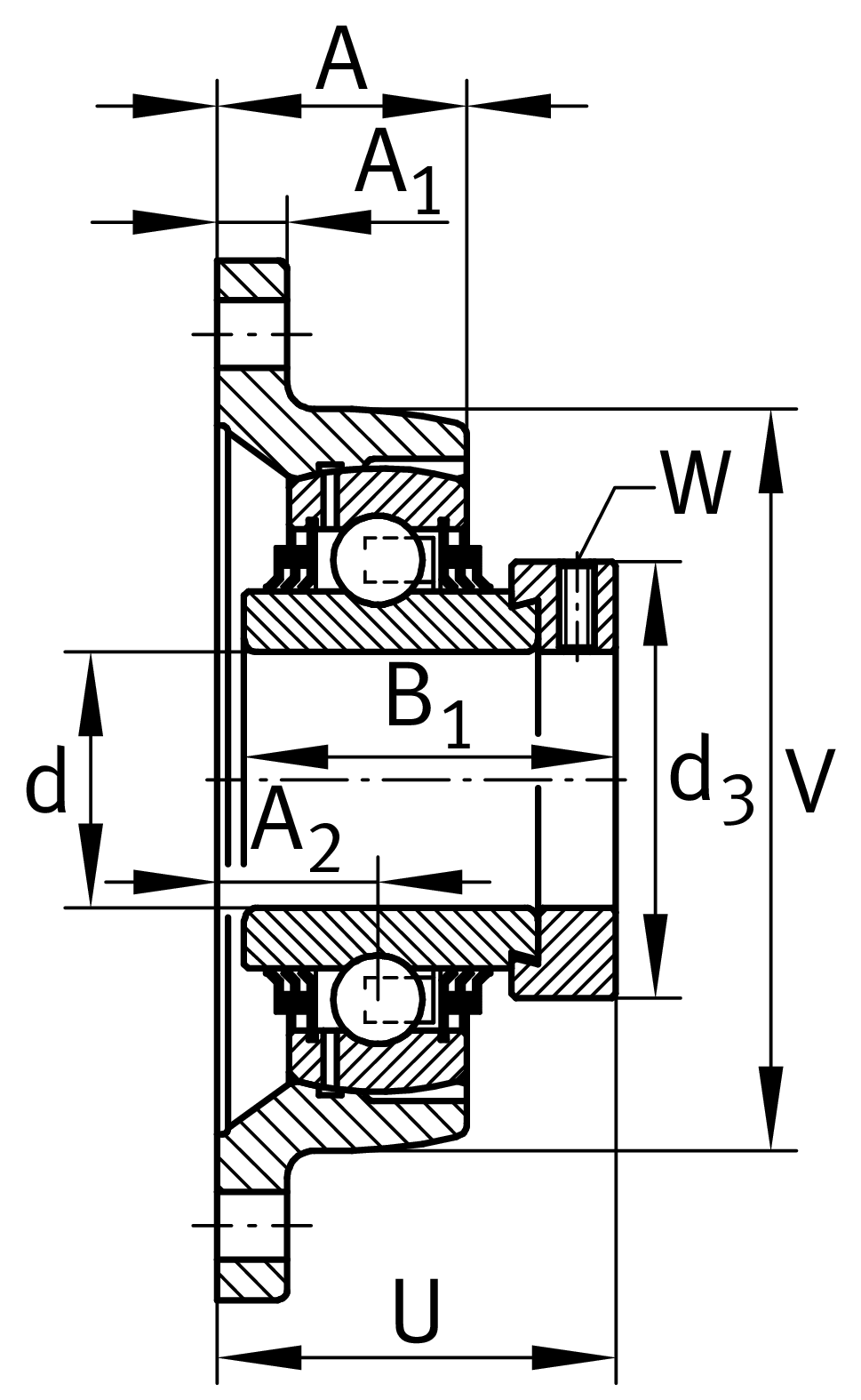

Dimensions
A
31 mm
Height housing
A1
12 mm
Thickness of flange
A2
20 mm
Distance raceway
B1
48.5 mm
Locking collar total width
V
80 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
44 mm
Outside diameter locking collar

Additional information
CJT06-N
Housing
GE30-XL-KTT-B
Bearing designation
KASK06
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
