TCJT25-XL-N
Flanged housing unit TCJT25-XL-N
Thêm vào yêu cầu báo giá

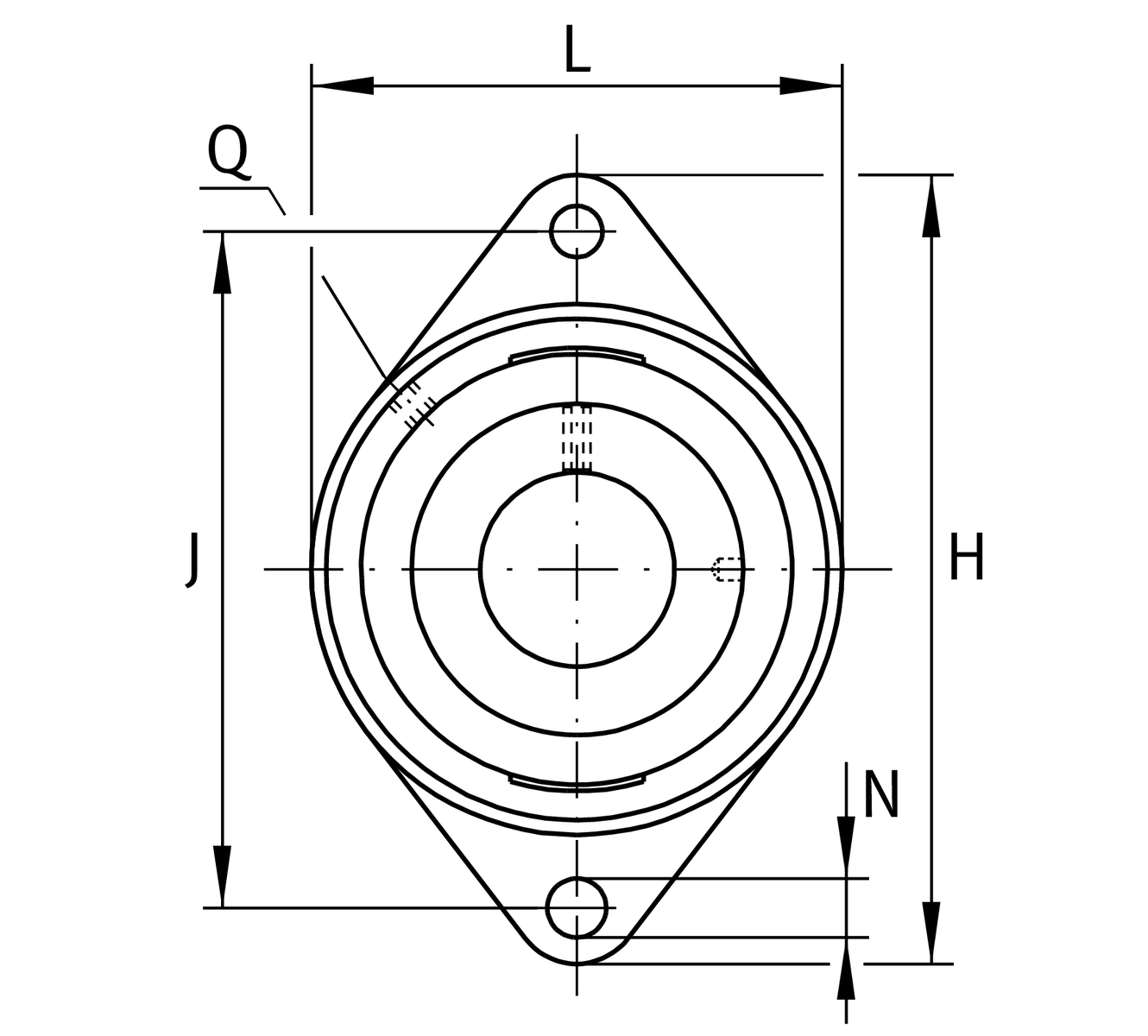

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
70 mm
Flange width
H
124 mm
Height flange
U
46 mm
Total height unit
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
≈m
0.64 kg
Weight

Mounting dimensions
J
99 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
2
Number of screwing holes
W
3 mm
Width of flats

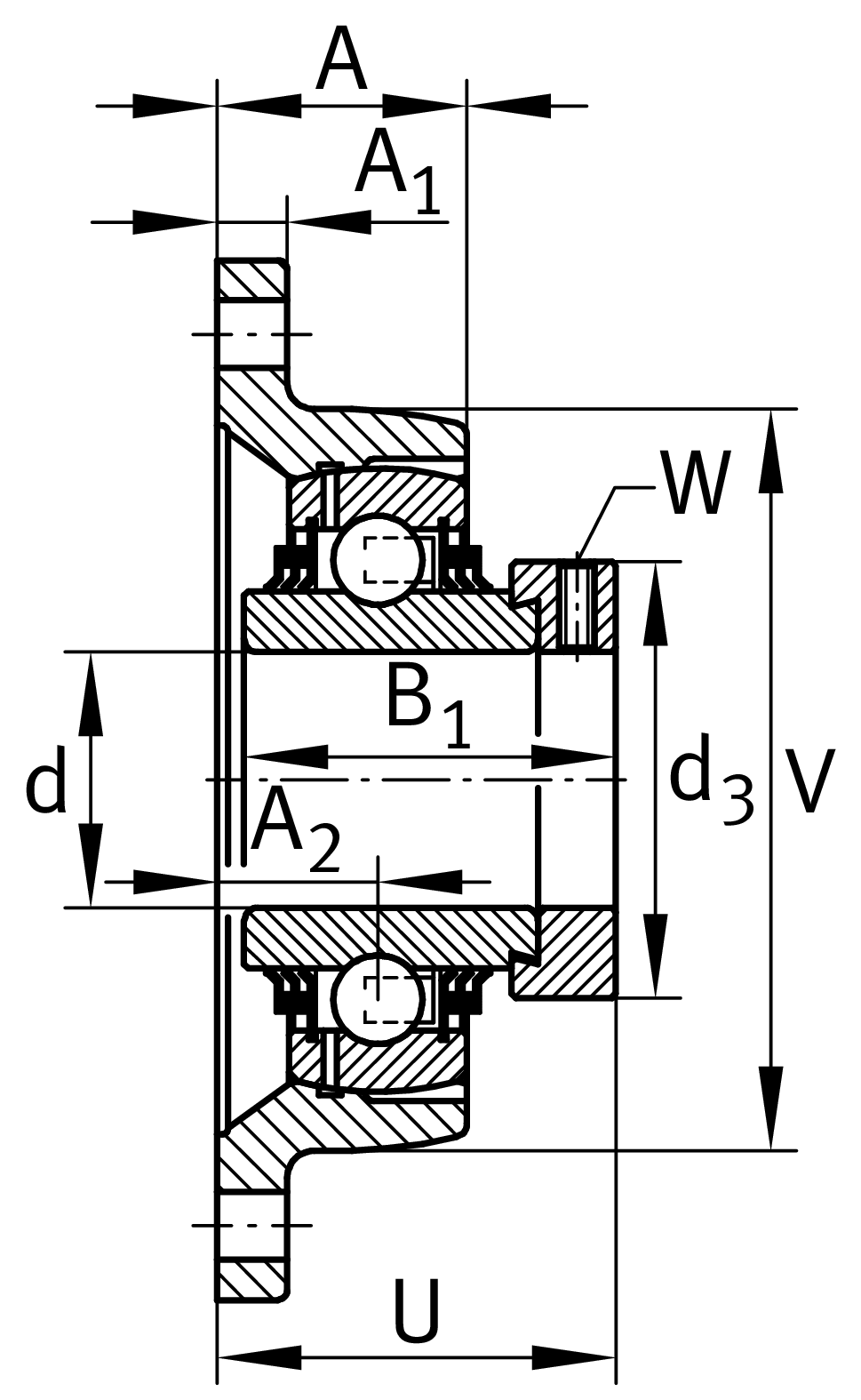

Dimensions
A
28.5 mm
Height housing
A1
11 mm
Thickness of flange
A2
19 mm
Distance raceway
B1
44.5 mm
Locking collar total width
V
70 mm
Shoulder diameter housing
Q
M6
Connection thread for lubrication
d3
37.5 mm
Outside diameter locking collar

Additional information
GEHCJT05-GG-N
Housing
GE25-XL-KTT-B
Bearing designation
KASK05
Protecting cap

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
GrooveNCast iron housing with undercut slot for end caps
MaterialGGGrey cast iron
