FLCTEY30-XL
Flanged housing unit FLCTEY30-XL
Thêm vào yêu cầu báo giá

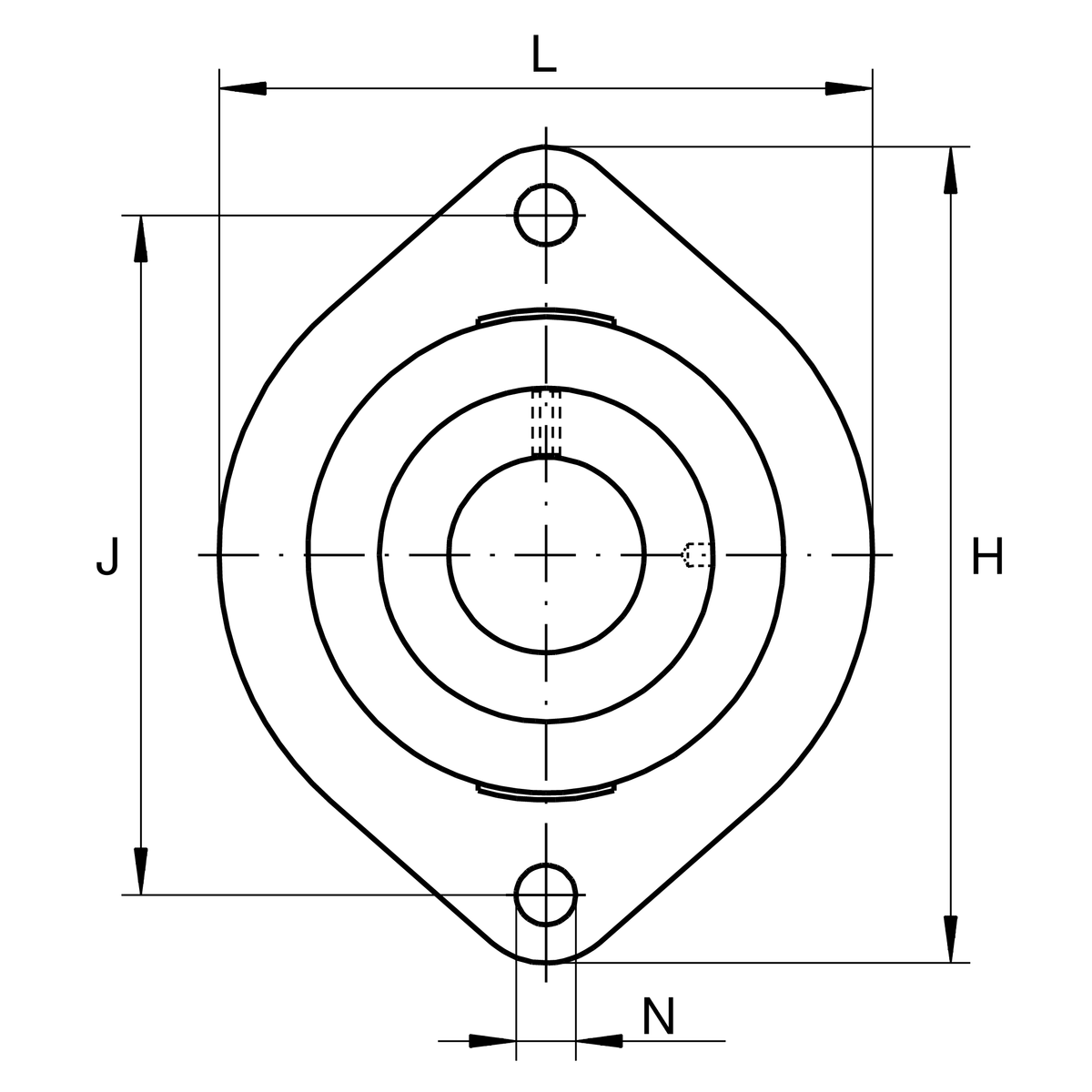

Main Dimensions & Performance Data
d
30 mm
Bore diameter
L
84 mm
Flange width
H
112.5 mm
Height flange
U
32.4 mm
Total height unit
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
Cur
480 N
Fatigue load limit, radial
≈m
0.68 kg
Weight

Mounting dimensions
J
90.5 mm
Distance fixing bore
N
11.5 mm
Fixing bore
n
2
Number of screwing holes

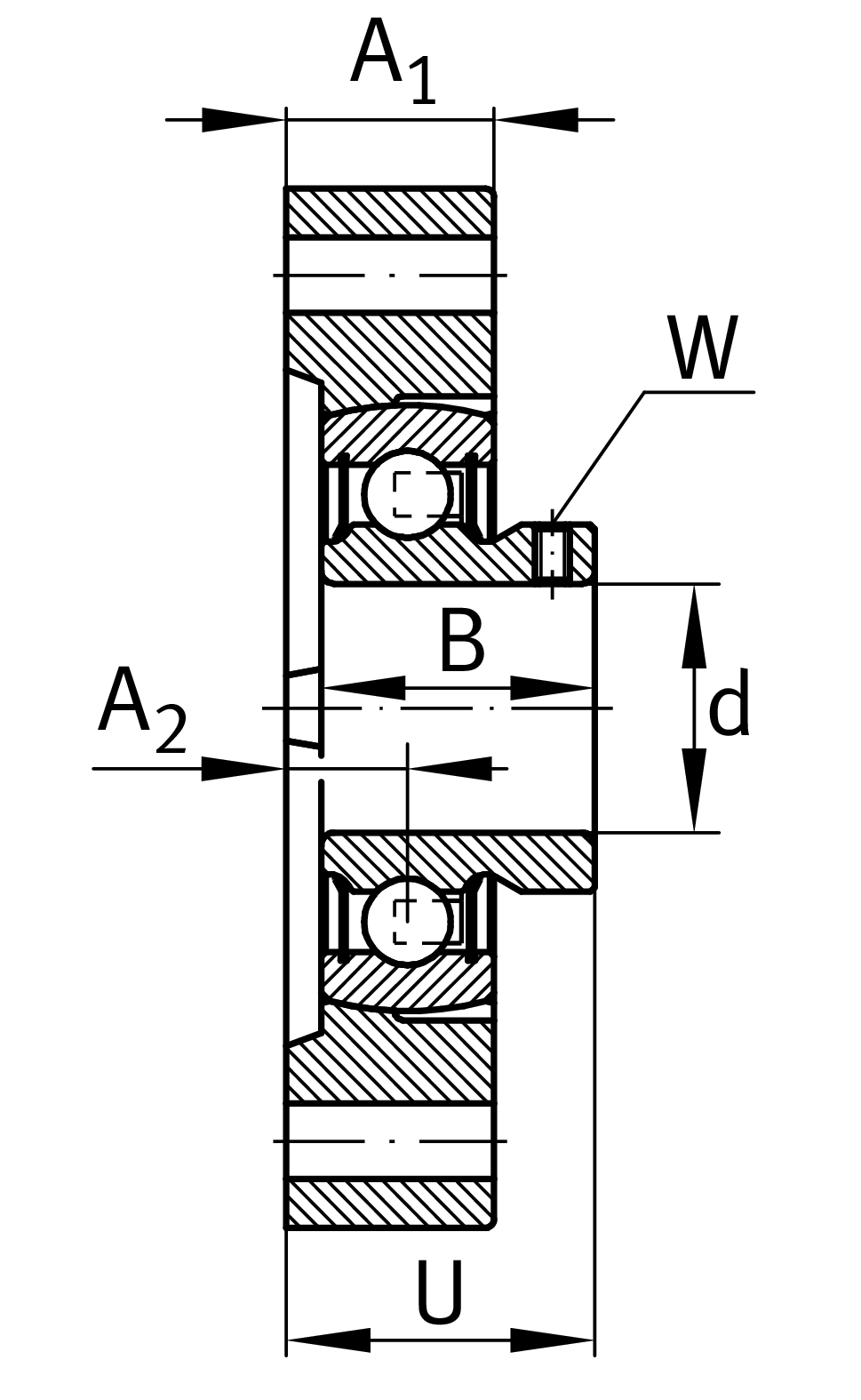

Dimensions
A1
22.5 mm
Thickness of flange
A2
11.4 mm
Distance raceway
B
30 mm
Width

Additional information
GEHLCTE06-GG
Housing
AY30-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
