FLCTEY25-XL
Flanged housing unit FLCTEY25-XL
Thêm vào yêu cầu báo giá

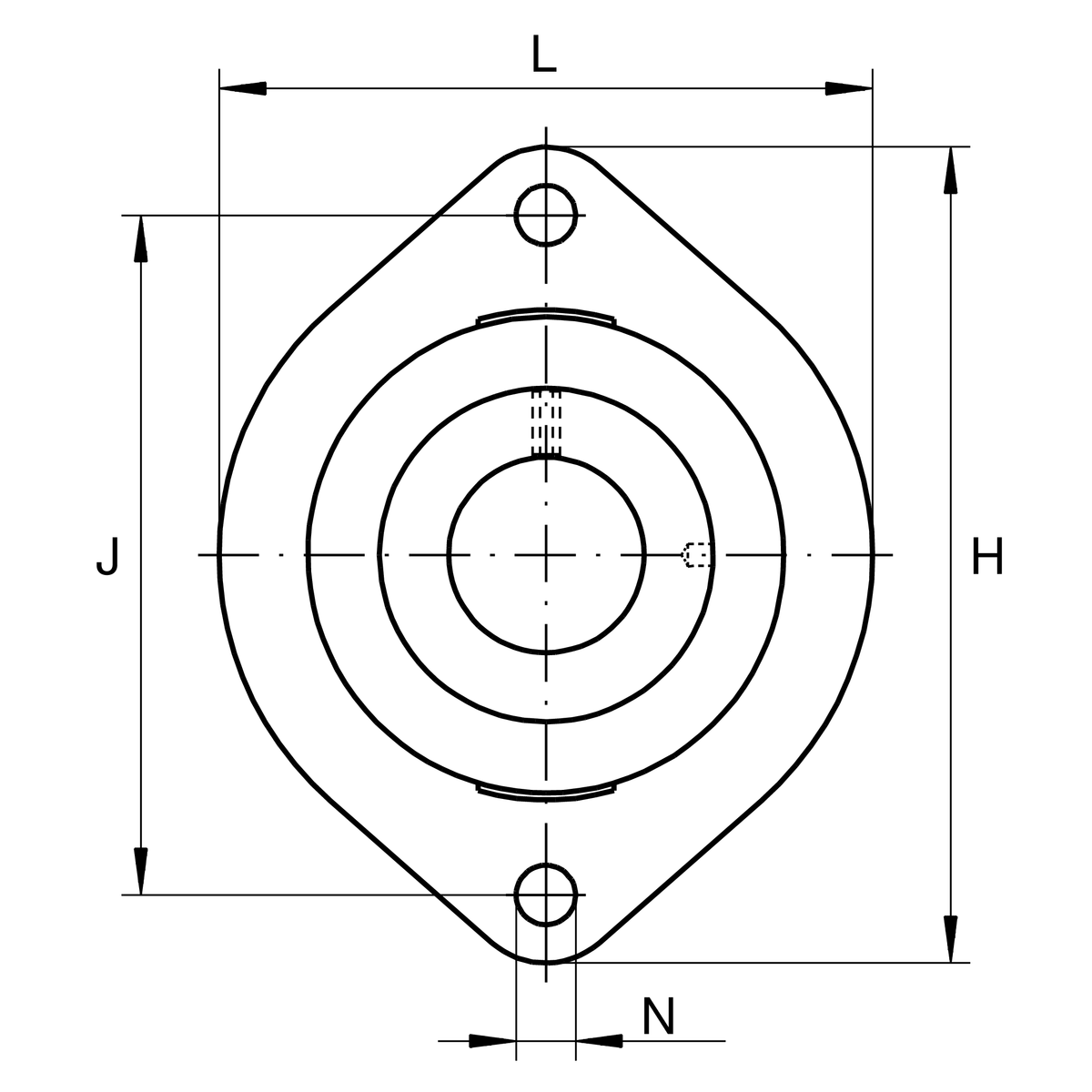

Main Dimensions & Performance Data
d
25 mm
Bore diameter
L
71 mm
Flange width
H
97 mm
Height flange
U
29.4 mm
Total height unit
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
335 N
Fatigue load limit, radial
≈m
0.43 kg
Weight

Mounting dimensions
J
76.2 mm
Distance fixing bore
N
9 mm
Fixing bore
W
2.5 mm
Width of flats
n
2
Number of screwing holes

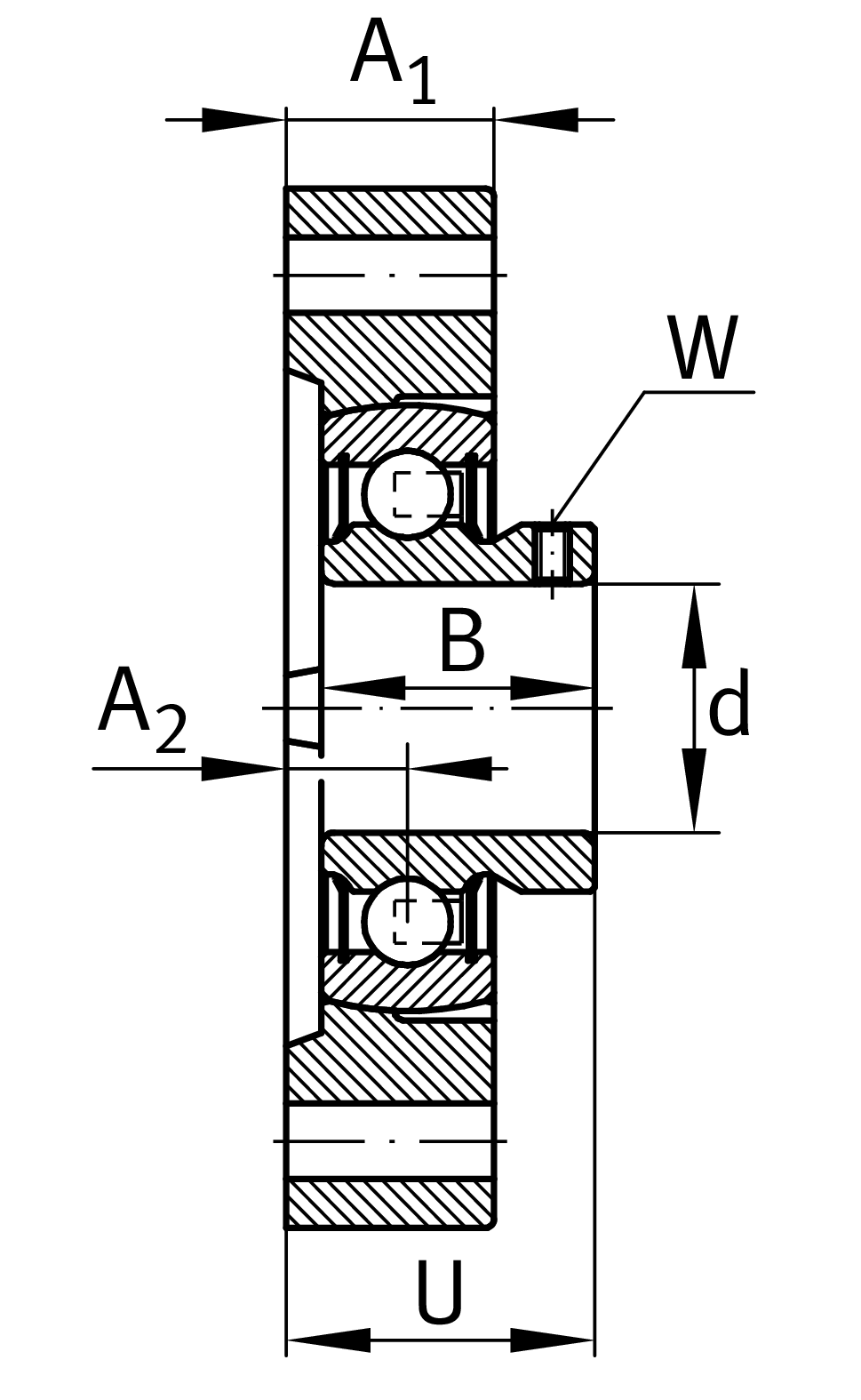

Dimensions
A1
19.5 mm
Thickness of flange
A2
9.9 mm
Distance raceway
B
27 mm
Width

Additional information
LCTE05
Housing
AY25-XL-NPP-B
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
