FAG INA Schaeffler
INA
GRA102-XL-NPP-B-AS2/V
Radial insert ball bearing GRA102-XL-NPP-B-AS2/V
Thêm vào yêu cầu báo giá

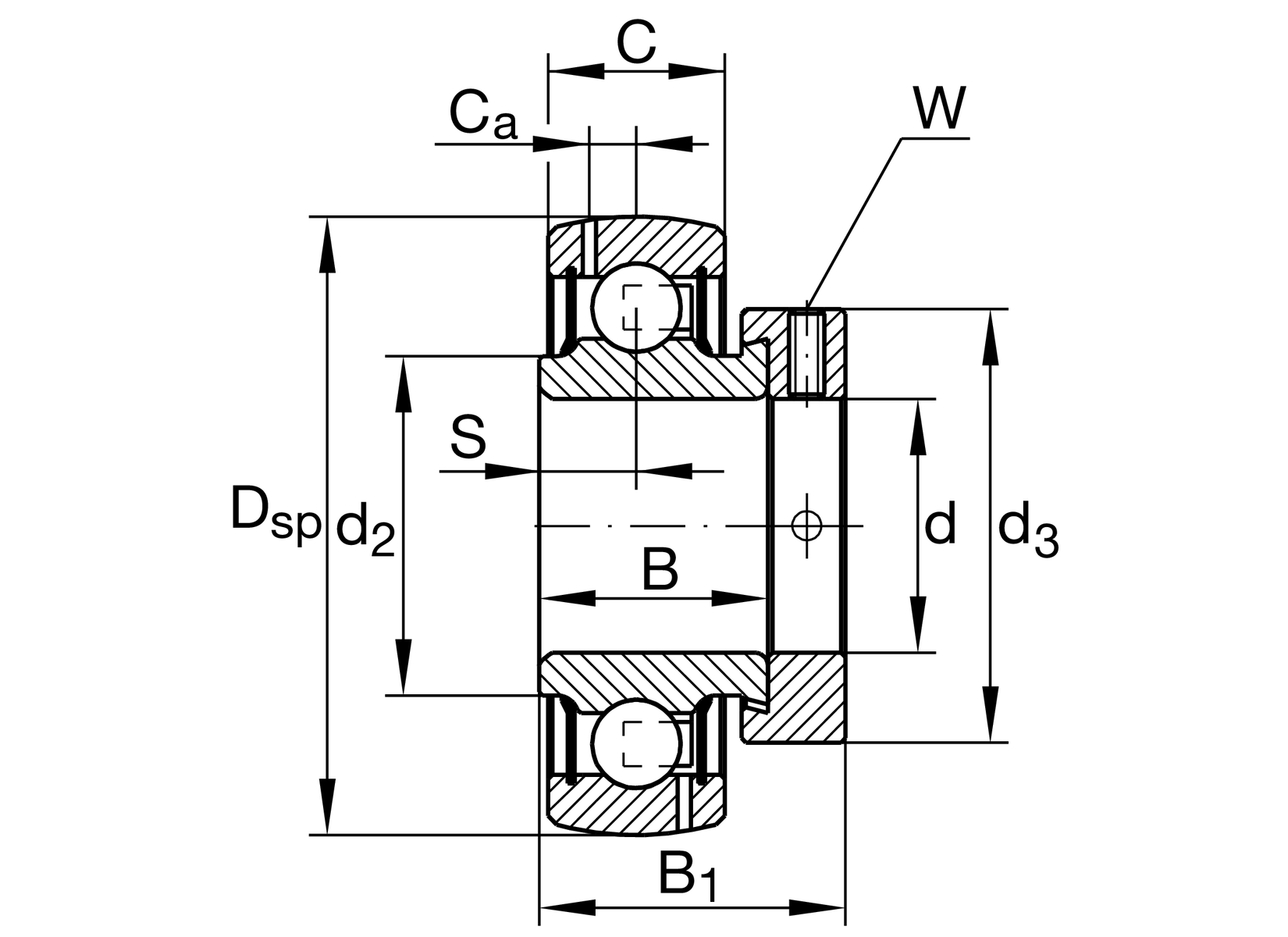

Main Dimensions & Performance Data
d
28.575 mm
Bore diameter
d
28.575 mm
Bore diameter, inch
DSP
62 mm
Outside diameter
B1
35.8 mm
Locking collar total width
B
23.8 mm
Width
Cr
20,700 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
0.32 kg
Weight

Dimensions
C
18 mm
Width, outer ring
S
9 mm
Distance raceway
d2
37.3 mm
Rib diameter sealing inner ring
Ca
5 mm
Distance to lubrication hole
d3
44 mm
Outside diameter locking collar/locknut
W
3.969 mm
Width across flats (Inch)

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
