FAG INA Schaeffler
INA
GRA102-NPP-B-AS2/V
Radial insert ball bearing GRA102-NPP-B-AS2/V
Thêm vào yêu cầu báo giá

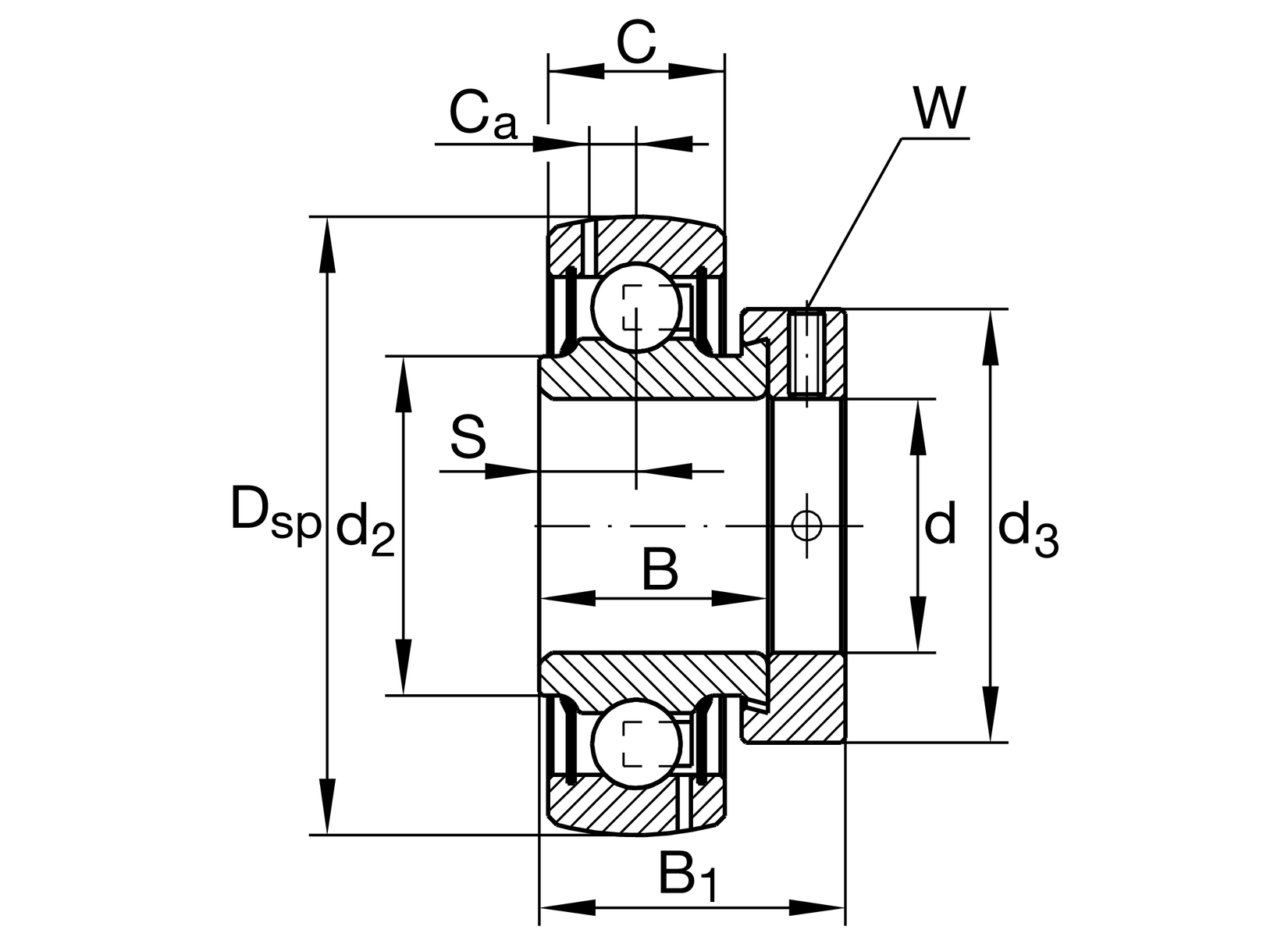

Main Dimensions & Performance Data
d
28.575 mm
Bore diameter
d
28.575 mm
Bore diameter, inch
DSP
62 mm
Outside diameter
B1
35.8 mm
Locking collar total width
B
23.8 mm
Width
Cur
520 N
Fatigue load limit, radial
Cr
19,500 N
Basic dynamic load rating, radial
C0r
11,300 N
Basic static load rating, radial
≈m
315 g
Weight

Dimensions
C
18 mm
Width, outer ring
S
9 mm
Distance raceway
d2
37.3 mm
Rib diameter sealing inner ring
Ca
5 mm
Distance to lubrication hole
d3
44 mm
Outside diameter locking collar/locknut
W
3.969 mm
Width across flats (Inch)

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
