RAE25-XL-NPP-B-OSE
Radial insert ball bearing RAE25-XL-NPP-B-OSE
Thêm vào yêu cầu báo giá

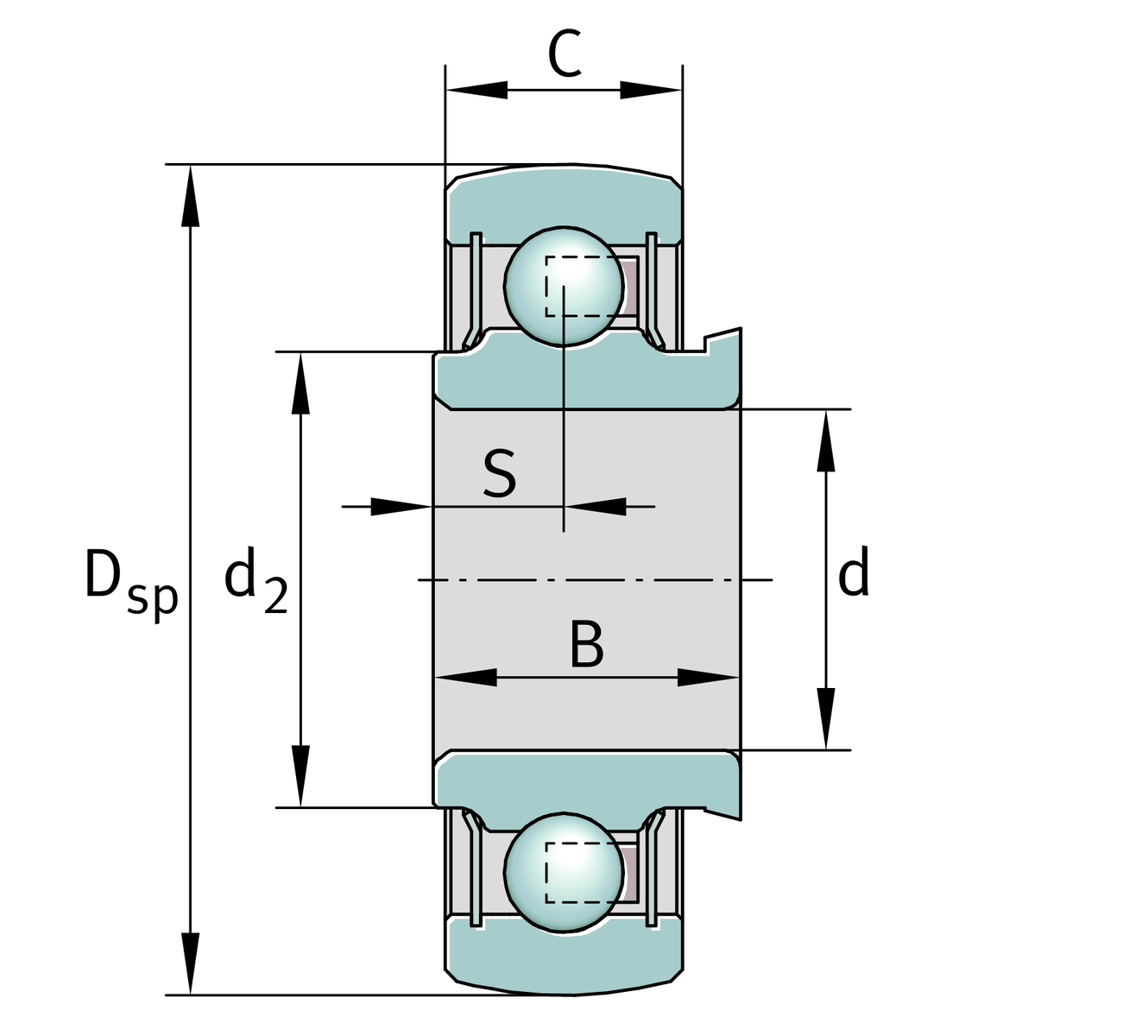

Main Dimensions & Performance Data
d
25 mm
Bore diameter
DSP
52 mm
Outside diameter
B
21.4 mm
Width
Cur
410 N
Fatigue load limit, radial
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.13 kg
Weight

Dimensions
C
15 mm
Width, outer ring
S
7.5 mm
Distance raceway
d2
30.5 mm
Rib diameter sealing inner ring

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
100 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Shape of outer surfaceB
Without locking deviceOSEBearing without locking element
