RAE25-XL-NPP-FA106-L460
Radial insert ball bearing RAE25-XL-NPP-FA106-L460
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
52 mm
Outside diameter
B
21.4 mm
Width
B1
31 mm
Locking collar total width
Cr
14,000 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
370 N
Fatigue load limit, radial
≈m
0.14 kg
Weight

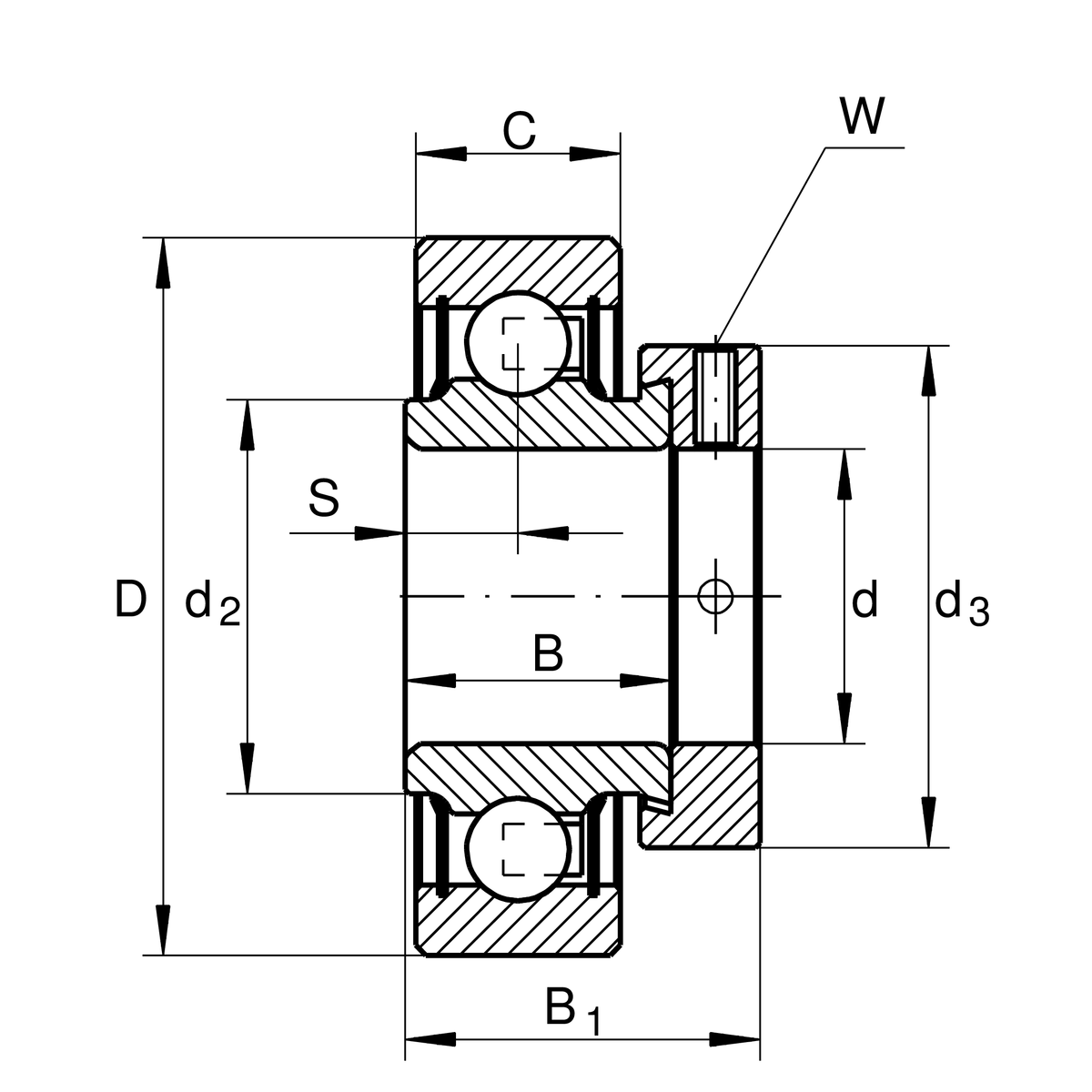

Dimensions
C
15 mm
Width, outer ring
S
7.5 mm
Distance raceway
d2
30.3 mm
Rib diameter sealing inner ring
d3
37.5 mm
Outside diameter locking collar/locknut
W
3 mm
Width of flats

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingNPPLip seal on both sides
Manufacturing instructionFA106Bearing subjected to special noise testing
LubricantL460Grease (L460)
