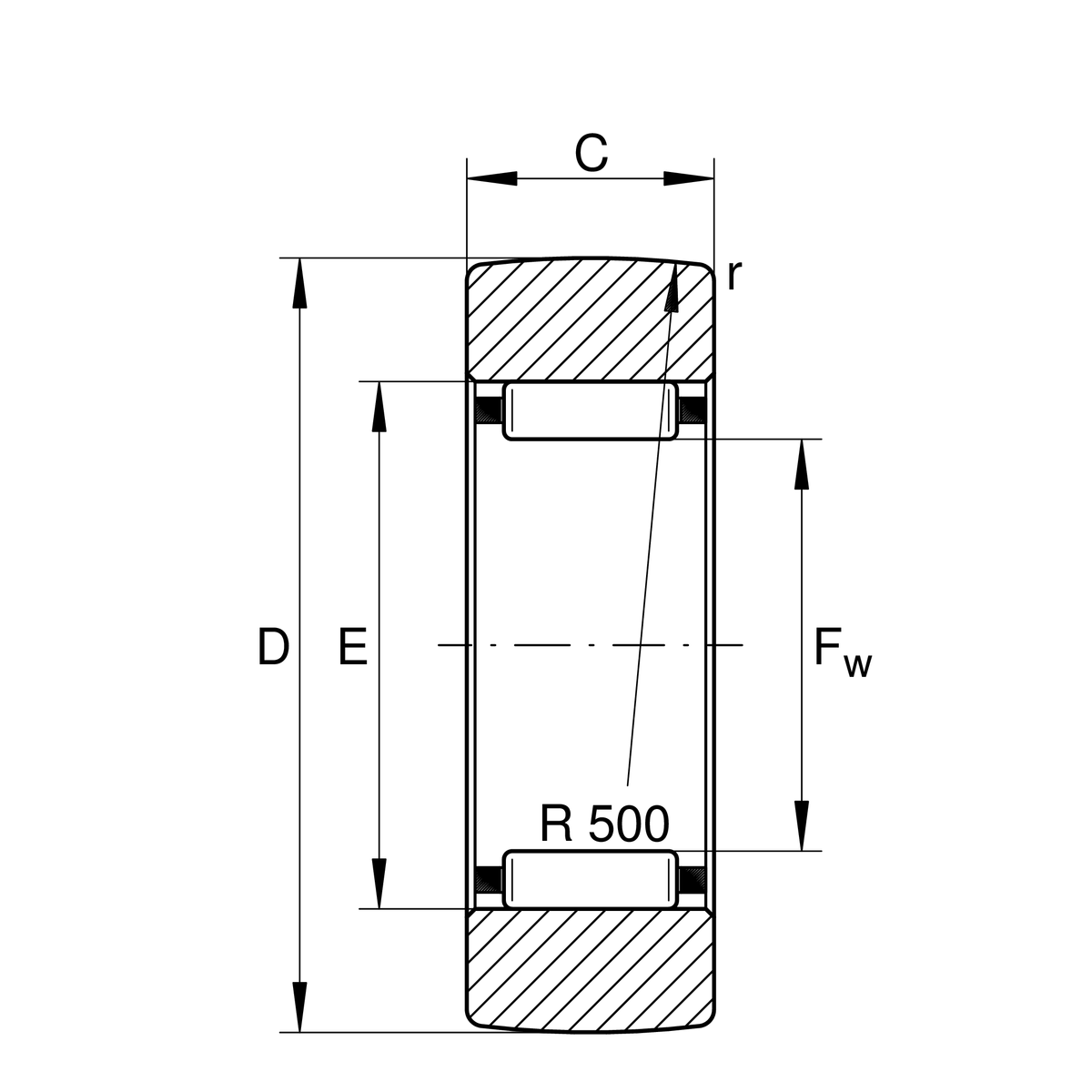

Main Dimensions & Performance Data
| D | 40 mm | Outside diameter |
| Fw | 22 mm | Under roller diameter |
| C | 15.8 mm | Width, outer ring |
| Cr w | 14,200 N | Basic dynamic load rating, radial |
| C0r w | 18,200 N | Basic static load rating, radial |
| Cur w | 2,550 N | Fatigue load limit, radial |
| nD G | 2,800 1/min | Speed on permanent grease lubrication |
| ≈m | 93.85 g | Weight |
Dimensions
| E | 29 mm | Raceway diameter outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | Without | |
| Outer Ring profile | R500 | R500 |
