Main Dimensions & Performance Data
| D | 35 mm | Outside diameter |
| Fw | 20 mm | Under roller diameter |
| C | 11.8 mm | Width, outer ring |
| Cr w | 9,100 N | Basic dynamic load rating, radial |
| C0r w | 11,100 N | Basic static load rating, radial |
| Cur w | 1,670 N | Fatigue load limit, radial |
| nD G | 3,300 1/min | Speed on permanent grease lubrication |
| ≈m | 0.051 kg | Weight |

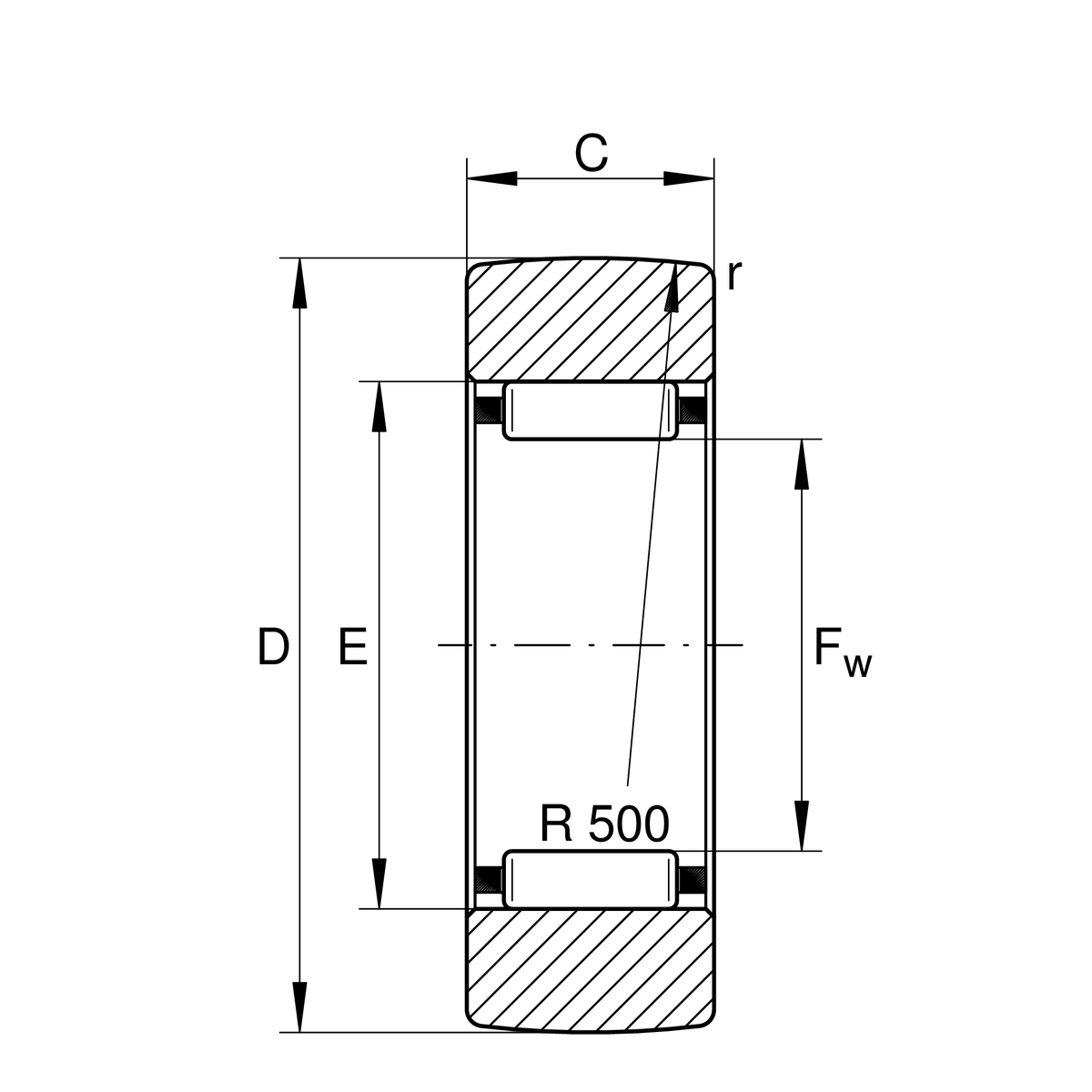

Dimensions
| E | 26 mm | Raceway diameter outer ring |
| rmin | 0.3 mm | Minimum chamfer dimension |
| R | 500 mm | Radius of outer ring outside profile |
Your current product variant
| Sealing | Without | |
| Outer Ring profile | R500 | R500 |
