FAG INA Schaeffler
FAG
UKFL205
Flanged housing unit UKFL205
Thêm vào yêu cầu báo giá

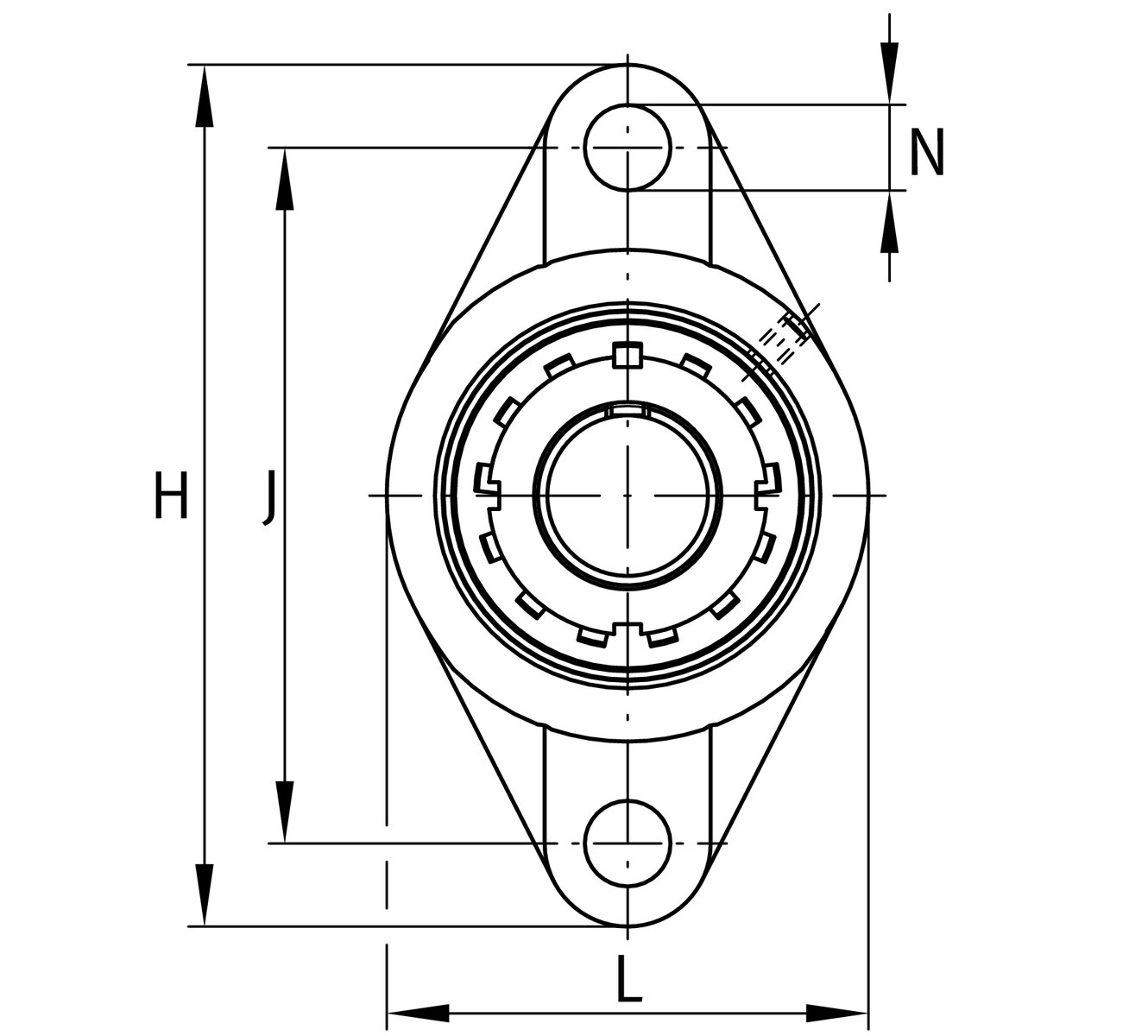

Main Dimensions & Performance Data
d
20 mm
Bore diameter
L
68 mm
Flange width
H
130 mm
Height flange
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
Cur
410 N
Fatigue load limit, radial
≈m
0.69 kg
Weight

Mounting dimensions
J
99 mm
Distance fixing bore
N
16 mm
Fixing bore
n
2
Number of screwing holes

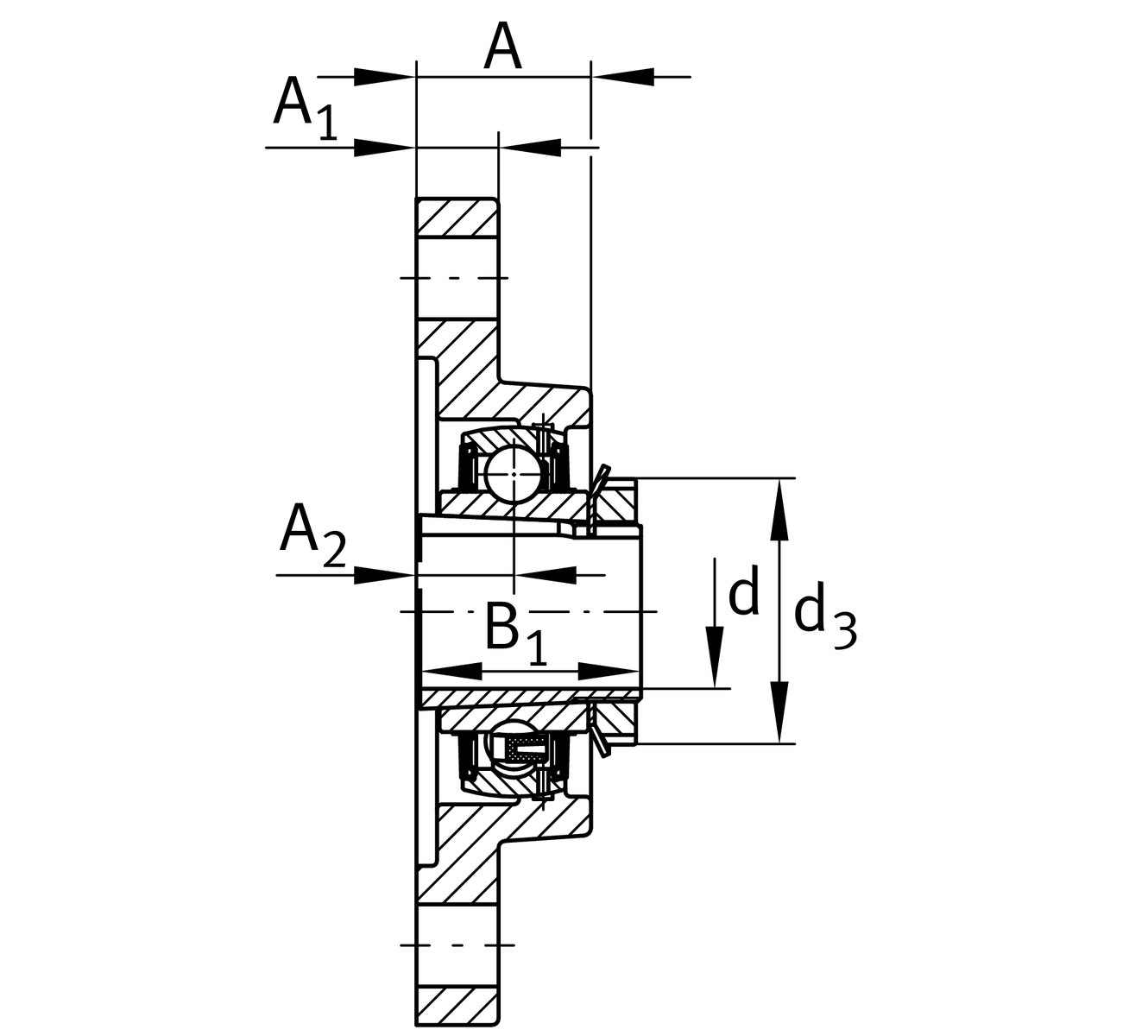

Dimensions
A
27 mm
Height housing
A1
15 mm
Thickness of flange
A2
16 mm
Distance raceway
B
23 mm
Width
B1
35 mm
Locking collar total width
d3
38 mm
Outside diameter eccentric locking collar

Additional information
1
Number of housings
FL205
Housing
UK205
Bearing designation

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
MaterialGGGrey cast iron
